Multi-Channel Lightning Strike Counter 9999 Digits 0.5kA-100kA Current 2 Channels With RS485 Communication Interface
Description
This system is designed for monitoring and intelligent management of surge protectors, including recorded lightning strike counts, strike duration, remote signaling data, status of pre-breakers, and operational status of lightning arresters.
Features
• Display lightning arrester discharge count and status of two switch signals online
• Microprocessing and digital storage ensure accurate data recording, interference-free operation, and data retention during power outages.
• Equipped with an integrated RS485 communication interface, enabling real-time external transmission of surge arrester data.
• Modular structure, terminal wiring for easy installation and use
Parameter
| Standard | IEC 62561-6 |
| Product Model | LSC-4S |
| Electrical parameters | |
| Collection form | Transformer coil |
| AC power supply | 220Vac(50Hz) |
| Maximum count digit | 9999 times |
| Minimum count induced current/tc | 0.5kA (8/20us) |
| Maximum count induced current/mcw | 100kA (8/20us) |
| Communication Protocol and Transmission | RS-485 (Modbus communication protocol) |
| Peripheral switch signal monitoring | 2 Line |
| Additional features | Power outage memory, reset, lightning strike time |
| Mechanical parameters | |
| Wiring cross-sectional area | 0.5mm²~1.5mm² |
| Stripping length | 10mm |
| Transformer threading capability | φ14mm |

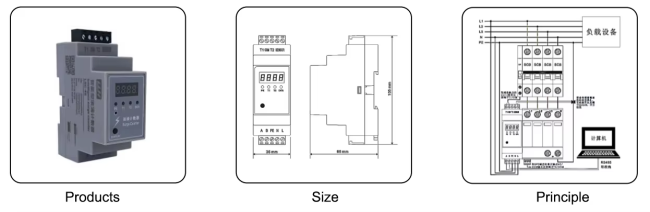

| Specifications and Dimensions | 105mmx36mmx66mm |
| Housing material | nylon plastic |
| Working environment | |
| Installation location | Indoor |
| Waterproof rating | IP20 |
| Temperature range | -40℃... +80℃ |
| Humidity range | Relative humidity ≤ 95% |
