96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement

Price Negotiable

Price: $1-10 / piece

MOQ: 100

Delivery Time: 15 work days

Brand: ymiho

Product Description

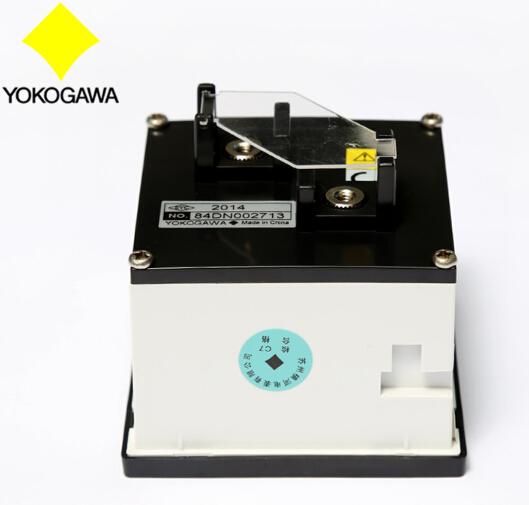

YOKOGAWA 96x96 Analog Voltmeter Ammeter

High-precision YOKOGAWA 96x96 analog voltmeter and ammeter for industrial electrical measurement applications.

Technical Specifications

Item	DN96	DN72
Suspension type	Taut band	Pivot & jewel
Pointer type	Lance type (black color)	Lance type (black color)
Bezel color	Black	Black
Front cover dimensions	96x96mm	72x72mm
Scale length	95mm	61mm
Full scale deflection angle	90°±2°
Meter mounting position	Vertical
Insulation resistance	Between electronic circuit and the case: 500V DC/More than 10MΩ Between current circuit and voltage circuit: 500V DC/More than 5MΩ
Dielectric strength	Linemax: 500V (Ammeters only) Between electronic circuit and the case: 2000V AC for 1 minute
Operating temperature range	0~40℃
Operating Humidity range	30~75%RH
Storage temperature range	-10~50℃
Storage Humidity range	25~80%RH
Case Material	Case & Base material: ABS resin (Nonflammable) Window material: PMMA (Anti-static process) Bezel material: ABS resin (Nonflammable)
Meter Weight	DC A(1mA): Approx 160g \| Approx 115g AC A(AVE): Approx 160g \| Approx 115g AC A(I/V): Approx 155g \| Approx 115g WATT(3φ3W): Approx 320g \| Approx 115g (TRD BOX 460g) VAR(3φ3W): Approx 320g \| Approx 115g (TRD BOX 460g) P.F.(3φ3W): Approx 320g \| Approx 115g (TRD BOX 460g) FRQ: Approx 172g \| Approx 125g
