Analog Pressure Gauge Model SQ-72 Power Meter 0-100V Measuring Voltage Range 72x72mm
Price:
$2.90-6 / piece
MOQ:
100
Delivery Time:
15 work days
Brand:
ymiho
Product Description
SQ-72 Analog Pressure Gauge
The SQ-72 Analog Pressure Gauge is a high-precision measuring instrument designed for monitoring pressure levels in hydraulic and pneumatic systems. With a measuring range of 0-10 MPa, it provides reliable and accurate readings, making it suitable for industrial applications such as machinery, pipelines, compressors, and laboratory testing.
The mechanical pointer dial ensures clear and intuitive real-time pressure indication, compliant with Class 1.5 accuracy standards. Its 72 × 72 mm square panel design allows for compact and easy installation in control panels or equipment dashboards. Built with a durable ABS housing and transparent glass cover, the gauge is resistant to vibration and designed for long-term operation in demanding environments.
Key Features
- Wide Measuring Range: 0-10 MPa, suitable for hydraulic and pneumatic systems
- Clear Analog Display: Pointer dial for intuitive real-time readings
- High Accuracy: Class 1.5 accuracy standard
- Durable Construction: ABS enclosure with transparent glass cover, vibration-resistant
- Compact Panel Mount Design: SQ-72 format for easy integration
- Applications: Compressors, pumps, pipelines, hydraulic machinery, industrial equipment, laboratory testing
Technical Specifications
| Product Type | Analog Pressure Gauge (Pointer Type) |
| Model | SQ-72 |
| Measuring Range | 0 - 10 MPa |
| Accuracy Class | 1.5 |
| Panel Size | 72 × 72 mm |
| Display Type | Analog Pointer, Mechanical Scale |

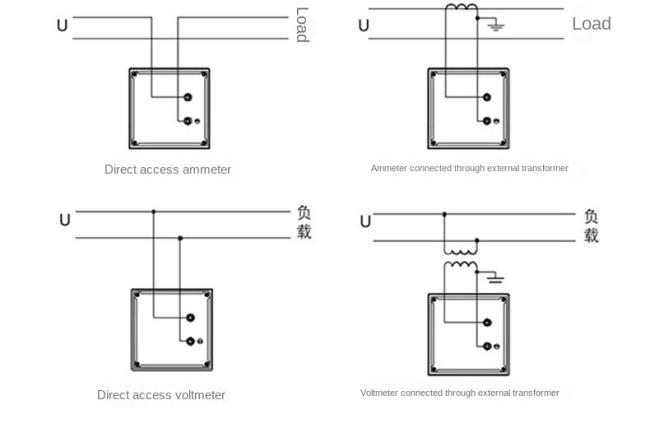

| Mounting Type | Panel Mount (Embedded Installation) |
| Housing Material | ABS + Transparent Glass |
| Operating Temperature | -10℃ to +50℃ |
| Storage Temperature | -20℃ to +60℃ |
| Applications | Hydraulic systems, pneumatic systems, compressors, pumps, pipelines, industrial control, laboratories |
Frequently Asked Questions
Q: Can you accept OEM manufacturing?
A: Yes. We can create molds for meter housings and provide customized technology according to your requirements. We can also implement your branding and packaging design (inner box, blister, master carton).
Q: Where can I place my logo?
A: We can print your logo on the meter dial, meter housing, blister card, inner box, and master carton.
Q: What are your minimum order quantities?
A: Analog display meters MOQ: 100 pieces. Digital display meters MOQ: 1000 pieces.
Q: How can I obtain samples?
A: Samples costing below $10.00 are free, but customers must pay the freight cost.
Q: What are your payment terms?
A: 1) T/T (30% in advance, balance paid before shipment). 2) For orders less than USD 5000, we require 100% payment in advance to save on bank transfer costs for both parties.
Q: How long is the delivery time?
A: For minimum order quantities, the lead time is approximately 15 days.
