School Educational Electrical Analog Multimeter Tester 0.25-1000V Measuring Voltage Range

Price Negotiable

Price: $7.70-9.30 / piece

MOQ: 1 piece

Delivery Time: Negotiable

Brand: imhoo

Product Description

School Educational Electrical Analog Multimeter

High-quality AC/DC analog multimeter designed specifically for educational and training purposes in electrical engineering and physics laboratories.

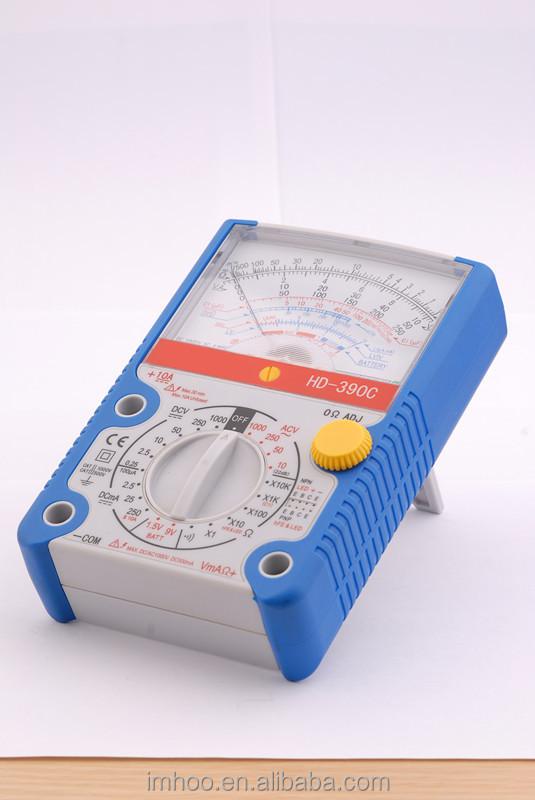

Side view of School Educational Electrical Analog Multimeter with protective holster

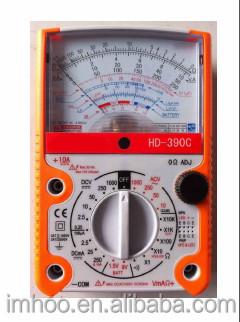

Close-up view of measurement dial and function selection on analog multimeter

Back view showing adjustable tilt stand and battery compartment

Complete educational analog multimeter kit with test leads and accessories

Key Features & Specifications

22 Test Ranges with 8 working functions for comprehensive electrical measurements
Heavy ABS Plastic Housing with compact protective holster for durability
Adjustable Back Tilt Stand with hook-up design for convenient use
High Input Impedance: 10KΩ/V DCV and 4.5 KΩ/V ACV
Advanced Overload Protection including fast-acting fuse 0.5A/250V
Continuity Buzzer Testing for quick circuit verification
Transistor hFE Check via special front jack
Decibel Test Capability: -20~+62dB with external capacitor

Measurement Ranges

DC Voltage Range (±3.0%F.S.): 0.25/2.5/10/50/250/1000V
AC Voltage Range (±4.0%F.S.): 10/50/250/1000V
DC Current Range (±3.0%F.S.): 0.1/2.5/25/250mA, 10A(±4.0%F.S.) without 10A fuse
Resistance Range (0.1Ω~20MΩ, ±3.0% of Arc.): x1, x10, x100, x1K, x10K
Dry Battery Check: 1.5V, 9V

Physical Specifications

Dimensions: 160×105×40mm
Weight: 320g approximately
Power Supply: 6F22 Dry Battery 9V 1pc and AA size 1.5V battery 1pc

Packaging Information

Packing Type	White Box
Carton Size	53×38×32cm
Standard Packing per Carton	32pcs
Net Weight	18kg
Gross Weight	19kg

School Educational Electrical Analog Multimeter in educational laboratory setting
