240° Wide Angle IP42 Rated 0-800A AC Ammeter Panel Meter for Marine & Power Stations
Price:
Negotiable
MOQ:
100
Delivery Time:
15 work days
Brand:
ymiho
Product Description

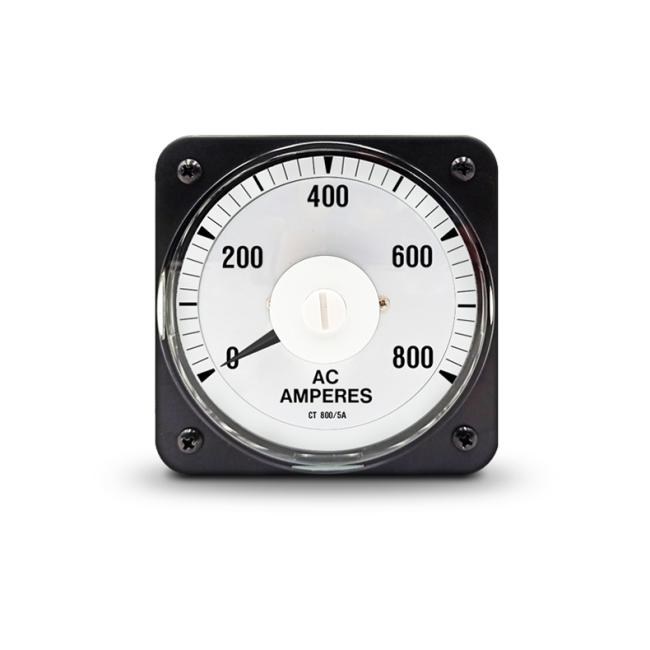

0-800A AC Ammeter Panel Meter – 240° Wide Angle, IP42 Rated
Our wide-angle analog AC ammeter delivers 0-800A measurement with CT 800/5A, 240° dial clarity, and IP42 protection. Ideal for marine switchboards, power stations, and industrial control systems. High accuracy, easy panel mount, and reliable performance in harsh environments.
Product Overview
This high-performance analog AC ammeter is engineered for precision current monitoring in marine, power station, and industrial environments. With a 240° wide-angle dial and high-contrast pointer, it provides clear, intuitive readings of AC current from 0 to 800 amperes, paired with a CT ratio of 800/5A for accurate measurement in high-current systems.
Key Features
- Wide-Angle Dial: 240° scale for enhanced readability and reduced eye strain
- Rugged Construction: Metal casing with IP42 ingress protection, resistant to vibration, salt spray, and oil mist
- High Accuracy: Class 1.5 precision for reliable current measurement in critical applications
- CT Compatibility: Designed for use with CT 800/5A, ideal for high-current power systems
- Easy Installation: Standard panel mount design with 101*101mm cutout, compatible with marine switchboards and industrial control panels
- Marine & Industrial Grade: Designed to operate in temperatures from -25℃ to +55℃, ideal for shipboard use, power stations, and mobile power systems
Applications
- Marine main switchboards and emergency power systems
- Industrial power control and distribution panels
- Mobile power stations and generator sets
- Petrochemical and offshore drilling operations
Technical Specifications
| Product Name | Wide-Angle Analog AC Ammeter |
| Measurement Range | 0-800A AC |
| CT Ratio | 800/5A |
| Accuracy Class | Class 1.5 |
| Frequency | 50/60Hz |
| Dial Angle | 240° Wide Angle |
| Protection Grade | IP42 |
| Operating Temperature | -25℃ ~ +55℃ |
| Housing Material | Metal Casing with Transparent Cover |
| Mounting Type | Panel Mount |
| Panel Cutout Size | 101 * 101 mm |
| Overall Panel Size | 110 * 110 mm |
| Applications | Marine Switchboards, Power Stations, Industrial Control Systems |
