M21003-2 DC Ammeter for Lincoln Welders - 0-1000A, FS=50MV, Rugged Analog Panel Gauge
Price:
Negotiable
MOQ:
100
Delivery Time:
15 work days
Brand:
ymiho
Product Description

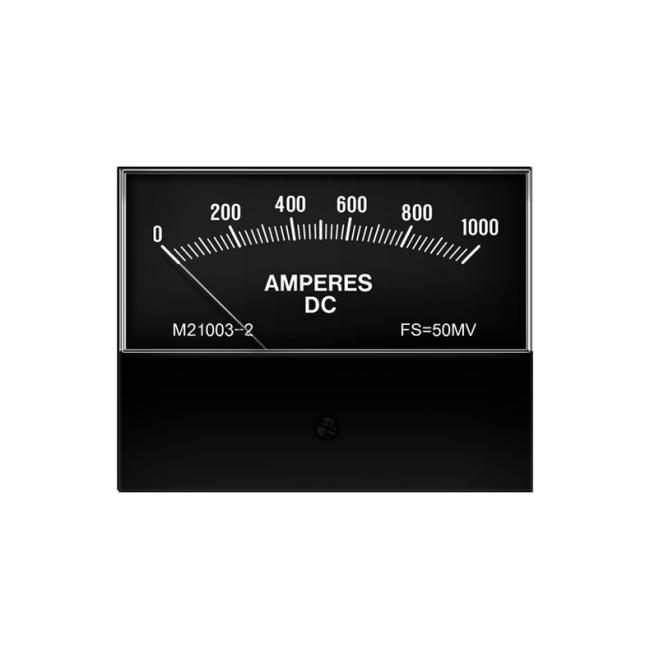

M21003-2 DC Ammeter for Lincoln Welders
Precision Current Measurement for Welding Equipment
The M21003-2 DC Ammeter is a rugged analog panel meter specifically engineered for Lincoln welding machines. This high-precision instrument serves as a direct drop-in replacement for similarly sized analog ammeters, providing reliable current monitoring in demanding industrial environments.
Featuring a clear 0-1000A DC scale with full-scale sensitivity of 50MV, this ammeter delivers highly accurate current readings with minimal measurement error, ensuring optimal welding performance and equipment protection.
Key Features
- 0-1000 Amperes DC measurement range
- Full-scale sensitivity: FS=50MV
- Rugged, durable housing for industrial environments
- High precision with low measurement error
- Standard panel mount for direct replacement
- Clear analog pointer display
- Compatible with Lincoln Welders and similar equipment
Technical Specifications
| Model Number | M21003-2 |
|---|---|
| Type | DC Ammeter (Analog Panel Meter) |
| Measurement Range | 0-1000 Amperes DC |
| Full Scale Sensitivity | FS=50MV |
| Primary Application | Lincoln Welders (compatible with similar-sized analog meters) |
| Display Type | Analog Pointer |
| Accuracy | High precision with low measurement error |
| Housing | Rugged, durable construction |
| Mounting | Panel mount (standard size for direct replacement) |
Ideal for maintaining, repairing, or upgrading welding equipment, the M21003-2 DC Ammeter ensures long-lasting performance in harsh industrial and welding environments where reliable current monitoring is essential.
Product parameters
Panel Dimensions (mm)
| Model Size | G | H | L | K | J |
|---|---|---|---|---|---|
| 1.5" | 57 | 54.2 | 44.3 | 42.5 | 23.3 |
| 2.5" | 76 | 73 | 57.5 | 56 | 32 |
| 3.5" | 95 | 91.5 | 74 | 72 | 40.5 |
| 4.5" | 130 | 127 | 100 | 98 | 55 |
Panel Cutout Dimensions (mm)
| Model Size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 1.5" | 16.3 | 16.3 | 16.3 | 16.3 | 2.9 | 37.7 |
| 2.5" | 23.75 | 23.75 | 23.75 | 23.75 | 3.5 | 54.5 |
| 3.5" | 28.5 | 28.5 | 28.5 | 28.5 | 3.5 | 66.5 |
| 4.5" | 50.8 | 50.8 | 51.2 | 39.2 | 3.5 | 71 |
Scale Choose
| Model Size | Model | Scale |
|---|---|---|
| 1.5" | 2071 / 2081 | Custom range |
| 2.5" | M21002-1 | DC60V/FS.DC60V |
| M21002-2 | DC40V/FS.DC40V | |
| M21003-1 | DC600A/FS.DC50mV | |
| M21003-2 | DC1000A/FS.DC50mV | |
| 3.5" | M20967-1 | DC60V/FS.DC60V |
| M20968-1 | DC800A/FS.DC50mV | |
| M20968-3 | DC1200A/FS.DC50mV | |
| 4.5" | M20970-1 | DC60V/FS.DC60V |
| M20971-1 | AC60V/FS.AC60V | |
| M20969-1 | DC1500A/FS.DC50mV | |
| M20972-1 | AC1500A/FS.AC5A | |
| M7981-1 | DC60V/FS.DC60V (white dial) | |
| M7980-2 | DC1500A/FS.DC50mV (white dial) | |
| M8455-1 | AC1500A/FS.AC5A (white dial) | |
| M8456-1 | AC60V/FS.AC60V (white dial) | |
| M7980-20 | DC2000A/FS.DC50mV (white dial) |
Product parameters
| Parameter | Details |
|---|---|
| Composition of structural materials | Transparent PC cover, bakelite base, semi transparent cover can be customized according to requirements |
| Pointer | The standard instrument pointer is made of aluminum alloy. The black, red and white pointers can be customized according to customer requirements. The setting pointer can be added to indicate the anti-static treatment of the set value: all instruments are subject to anti-static treatment to reduce the impact of static electricity on the accuracy of the instrument. |
| Damping and overshoot | Damping and overshoot can be customized according to customer requirements. Generally, when the pointer is set at 2/3 of the full scale, the overshoot does not exceed 15%. |
| Accuracy class | General: Class 1.5/2.5 Others: can be customized according to the user's accuracy requirements |
| working temperature | -20 ~ +50 °C |
| Installation position | Unless otherwise specified, the instrument is normally installed in a vertical position |
| Other locations | Horizontal/inclined installation can be customized according to customer requirements. The corresponding accuracy level is only valid for the specified installation position. Voltage drop specifications of external shunt: voltage drop specifications of external shunt of DC ammeter include 150mV, 100mV, 75mV, 60mV, 50mV, etc. The resistance of the wire connecting the instrument and the shunt is required to be 15-25m Ω. |
| model | 1.5"W: 2071 2081 2.5"W: M21002-1 M21002-2 M21003-1 M21003-2 3.5"W: M20967-1 M20968-1 M20968-3 4.5"W: M20970 M20971-1 M20969-1 M20972-1 M7981-1 M7980-2 M8455-1 M8456-1 M7980-20 |
