5V 3A 512 Channels Lithium Ion Cell Grading Machine for 18650 21700 26650 32700
5V 3A 512 Channels Lithium Ion Cell Grading Machine for 18650 21700 26650 32700
Product Description
ACEY-BCT503-512H lithium ion cell grading machine is designed for lithium battery formation, capacity grading, and comprehensive performance parameter testing. It adopts an advanced master–slave integrated testing system composed of an industrial computer and MCU-based control units. Featuring a robust structure, reliable performance, user-friendly operation, and high efficiency, this system delivers exceptional cost-effectiveness. It is an essential production and testing solution for lithium battery manufacturers, battery grading facilities, and research institutions.
Equipment Structure and Appearance
- One CPU board, providing unified control for the entire cabinet.
- Sixty-four 8-channel constant current boards, evenly distributed across four doors.
- Sixteen charging switching power supplies with four output groups each, with each power supply serving four constant current boards.
- Two keyboard panels for dual-sided operation (front and back).
- Thirty-two sets of quick-release clamps, each with 16 channels, equipped with 32 battery plastic trays. One type of battery tray is compatible with 18650, 26650, and 32650 batteries of different sizes.
Working Principle
- The equipment is controlled by a computer connection, which sends commands and collects data.
- The keyboard allows for manual operation of the equipment and displays parameters and status.
- The constant current board is controlled by the CPU and provides constant current and constant voltage functions.
Main Technical Parameter
| Device Model(Quick-clamping) | ACEY-BCT503-512H (Horizontal) |
| Structure Of Equipment (Device) | |
| Number of device channels | 512 Channels |
| Size (width * depth * height) mm | 1620*859.1*1840mm |
| Clamp form | Cylindrical four-wire fixture |
| Color of device | Standard off-white color (customizable) |
| Clamp center distance | 35mm |
| Support battery height | Adjustable within 10-100mm range |
| Working power | Three-phase five-wire system ac380v±10%, 50hz |
| Working power dissipation | ≤14kw |
| Work environment | Temperature 0-40 ℃, relative humidity ≤80% |
| Heat-dissipating method | Natural wind intake and upward exhaust |
| Channel Parameter | |
| Voltage testing range | 0-5V, 1MV resolution |
| Battery voltage range | Charge 0-4.5V: Discharge 4.5-2V |
| Constant voltage range | 2.5V-4.5V |
| Voltage accuracy | ±(1‰ reading +1‰ full) |
| Current range | 30mA-3A,1mA, Reslution: 1mA |
| Current accuracy | ±(1‰ reading +1‰ full) |
| Control mode | Computer connection equipment work, Whole |
| Machine Control | |
| Software Function | |
| Communication mode | Rs485, baud rate 57,600 |
| Process set | Maximum 32 work steps and 256 cycles |
| Charging mode | Constant current, constant voltage |
| Charging cutoff condition | Voltage, current, time, capacity |
| Discharge | Constant current |
| Discharge cut-off condition | Voltage, time, capacity |
| Protection function | Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc |
| Time range | 0 - 30,000 minutes |
| Time accuracy | ≤±1‰ |
| Sampling inspection period | ≤8s |
| Minimum data recording frequency | ≤8s |
| Battery grading | By capacity, time, discharge platform, etc |
| Data processing | Data, graphs, and loop diagrams |

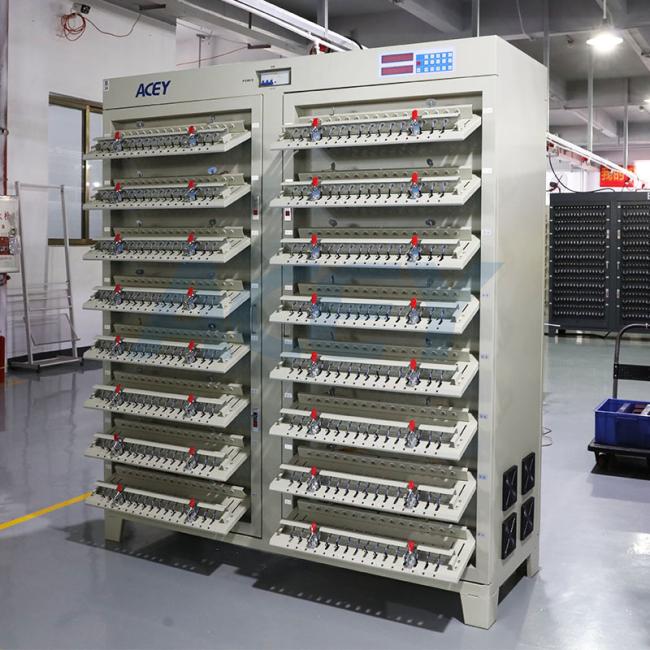

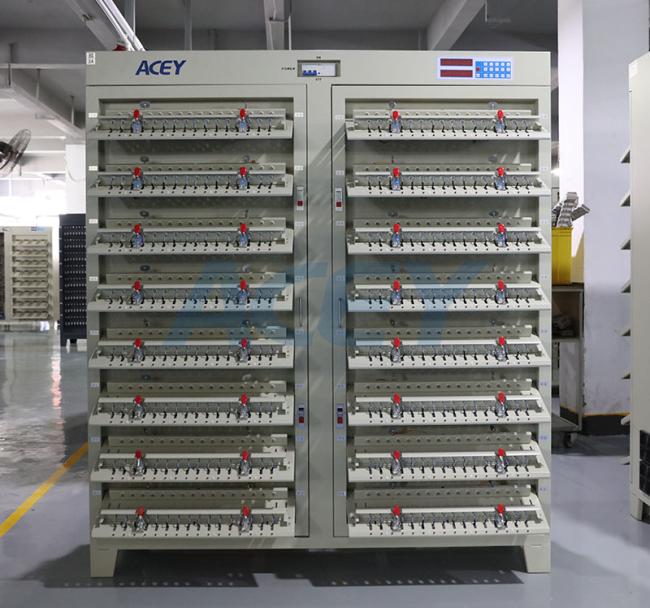

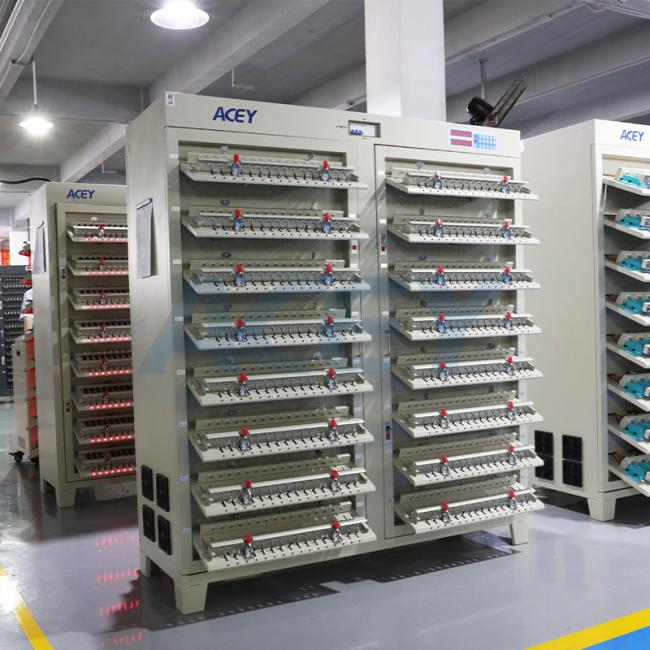

Product Display
