Automatic Lithium Battery Insulation Paper Sticking Machine for 18650 21700 26650 32700

Price Negotiable

Price: USD 6298~7128/Set (negotiable)

MOQ: 1 Set

Delivery Time: 7~35 Days

Brand: ACEY

Product Description

Automatic Lithium Battery Insulation Paper Sticking Machine for 18650 21700 26650 32700

Product Description

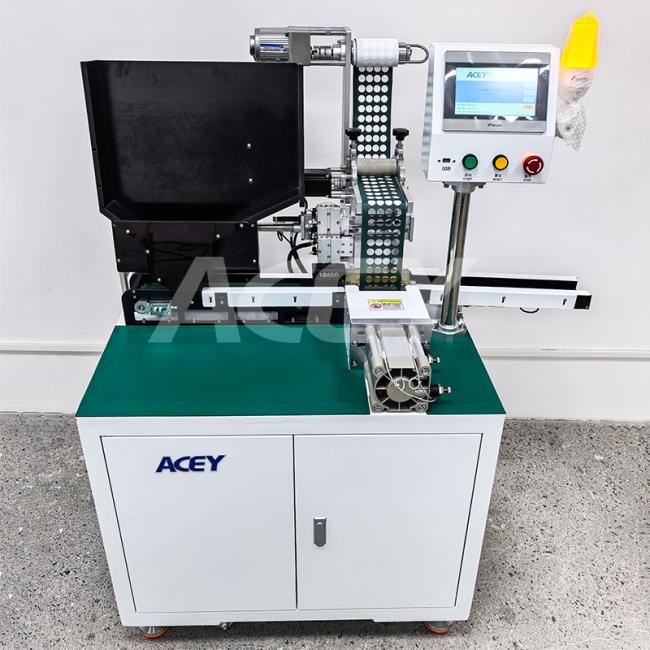

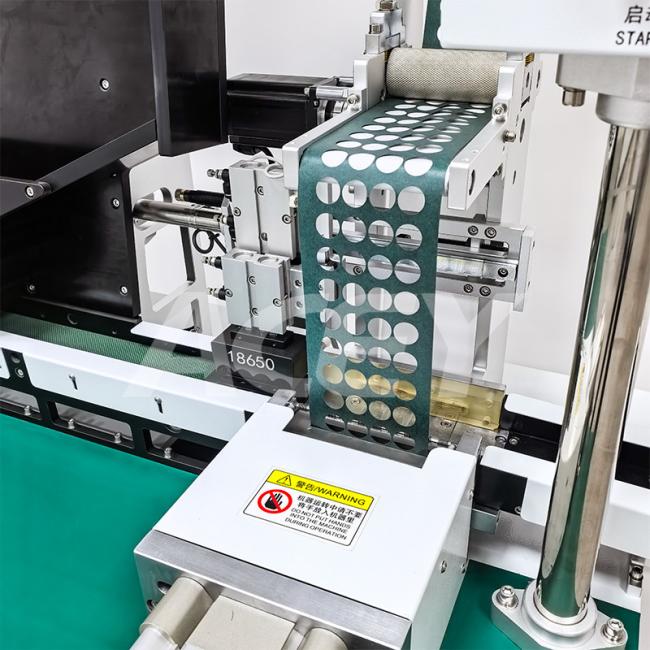

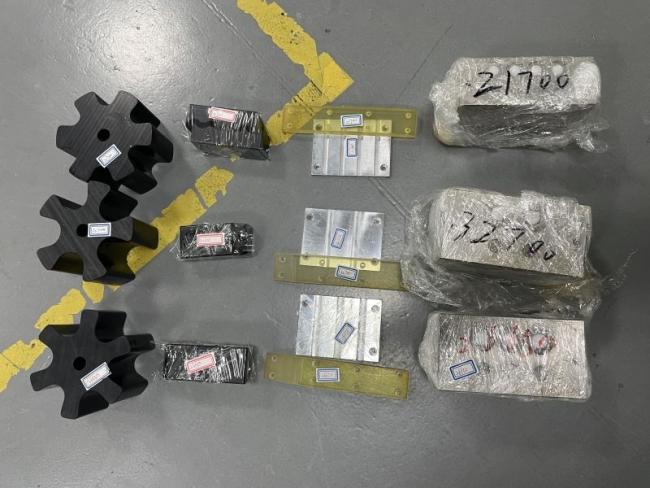

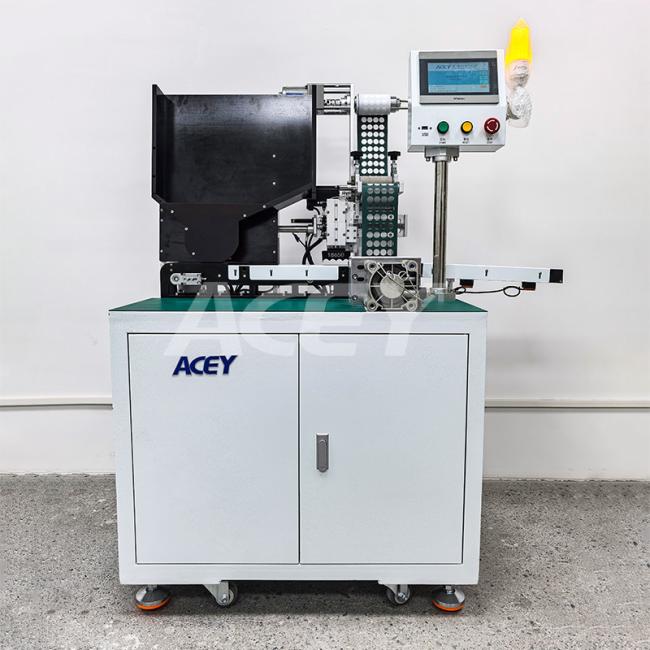

ACEY-BS01 Insulation paper sticking machine is specifically designed for the automatic pasting of barley paper insulation pads or PVC materials on the positive or negative electrodes of cylindrical lithium-ion batteries. It supports quick mold changeover, enabling flexible adaptation to different battery sizes, including 18650, 21700, 26650, 32650, and 32700 cylindrical cells.

Equipment Features

The equipment has a compact structure design, beautiful appearance and small space occupation.
The equipment is equipped with universal movable casters, which makes it easy to move and transport the equipment.
Suitable for various cylindrical lithium-ion batteries.
Automated operation, high precision, and stable performance.

Main Technical Parameter

Voltage Supply	Single-phase ~ 220V, 50Hz
Rated power	2KW
Surface pad material	Highland barley paper or PVC material
Material specification requirements	The max diameter of barley paper roll material is 350MM The inner diameter of paper roll core is 72-75MM
Battery type	Automatic application of barley paper or PVC material to the positive or negative electrode of 18650, 21700, 26650, and 32700 battery cells.
Feeding method	Insert battery cell hopper: 400pcs each time, available for 2 separate inserting units BNX-350 auto pasting
Pneumatic pressure	0.4-0.6Mpa
Cushioning power	Electric or pneumatic

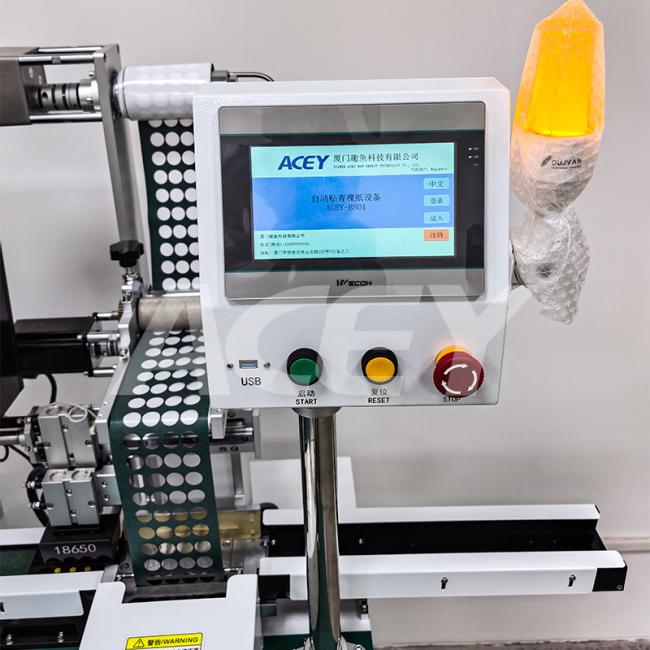

Control device	7.5 inch touch screen, PLC programmer and servo motor
Barley paper roll width	100mm
Speed	4000-4500PCS/hour, 4PCS per punch
Dimensions	L1110mmW710mmH1580mm
Machine weight	200Kg
Knife mold	Slow-moving wire processing method, high precision, 5000 knife molds are coated once to remove sticky water
