1–24S BMS Tester 50A Charging 120A Discharging for Ternary LiFePO4 LiCoO2 Batteries
1–24S BMS Tester 50A Charging 120A Discharging for BMS of Ternary LiFePO₄ and LiCoO₂ Batteries
Product Description
ACEY-BP24-50A120A BMS tester is designed for functional and performance testing of battery protection boards in lithium battery packs. The system features high automation, fast testing speed, and high precision. It supports comprehensive testing of 13 key BMS functions, including overcharge, overcharge recovery, over-discharge, over-discharge recovery, overcurrent (charging and discharging), internal resistance, self-discharge, short-circuit protection, overcharge protection time, overcurrent protection time, over-discharge protection time, balancing current, and balancing voltage. The tester is compatible with ternary lithium (NCM/NCA), lithium iron phosphate (LiFePO₄), and lithium cobalt oxide (LiCoO₂) battery protection boards, providing a reliable solution for quality control in battery pack assembly.
Technical Specifications
- Input Power Requirement: 180~240V, 50/60Hz, Power: 700W
- Power Supply for Domestic Use: AC 220V/50Hz, voltage fluctuation within ±10%
- Charge/Discharge Voltage Range: 5,000 mV ~ 102,000 mV
- Voltage Measurement Range: Available for detecting and setting voltage during charging or discharging
- Current Accuracy: ±(0.1% FS + 0.1% RD)
- Current Measurement/Setting Error: Error range equals 0.1% of full scale plus 0.1% of reading
- Voltage Accuracy: ±(0.1% FS + 0.1% RD)
- Voltage Measurement/Setting Error: Error range equals 0.1% of full scale plus 0.1% of reading
- Current Resolution: 1 mA, minimum unit for current detection or setting
- Voltage Resolution: 1 mV, minimum unit for voltage detection or setting
- Cycle Count: 1–9,999 cycles, supports continuous testing of protection board parameters via programming
- Log Tracking: Records operational steps and exceptions during testing for traceability
- Data Processing & User Interface: Test data saved in Excel format
- Communication Interface: RS232 interface between tester and host computer ensures stable and real-time data acquisition
- Calibration: Supports both precision calibration and software calibration
- QR Code Start Function: Equipment can be started via QR code scanning
- MES System Integration: Compatible for connection with Manufacturing Execution Systems
Main Technical Parameter
| No. | Function | Range | Accuracy | unit |
| 1 | Self-consumption of single cell | 0--500 | ±0.1 | uA |
| 2 | Self-consumption | 0--5000 | ±1 | uA |
| 3 | Overcharge voltage | 500--5000 | ±1 | mV |
| 4 | Overcharge recovery voltage | 500--5000 | ±1 | mV |
| 5 | Overcharge voltage protection delay | 0--10000 | ±1 | mS |
| 6 | Overdischarge voltage | 500--5000 | ±1 | mV |
| 7 | Overdischarge recovery voltage | 500--5000 | ±1 | mV |
| 8 | Overdischarge voltage protection delay | 0--10000 | ±1 | mS |
| 9 | Overcharge protection current protection value | 0.1--50 | ±0.01 | A |
| 10 | Overcharge protection current protection delay | 0--20000 | ±1 | mS |
| 11 | Overdischarge protection current protection value | 0.1--120 | ±0.01 | A |
| 12 | Overdischarge protection current protection delay | 0.1--20000 | ±1 | mS |
| 13 | Equalization function | 500--5000 | ±1 | mV |
| opening voltage | ||||
| 14 | Equalizing current | 1--500 | ±1 | mA |
| 15 | Charging current | 0.1--30 | ±0.01 | A |
| 16 | Discharging current | 0.1--120 | ±0.01 | A |
| 17 | Charging time | 0--30 | ±1 | S |
| 18 | Discharging time | 0--60 | ±1 | S |
| 19 | The difference of single cell self-consume | 0-500 | ±0.1 | uA |
| 20 | Resistance | 0-999 | ±1 | mΏ |
| 21 | Short circuit protection time | 0--5000 | ±1 | uS |
| 22 | The charging voltage of single cell | 500--5000 | ±1 | mV |
| 23 | The discharging voltage of single cell | 500--5000 | ±1 | mV |
| 24 | Open circuit voltage | 102000 | ±1 | mV |
| 25 | Number of voltage analogs | 24 | 0 | PCS |

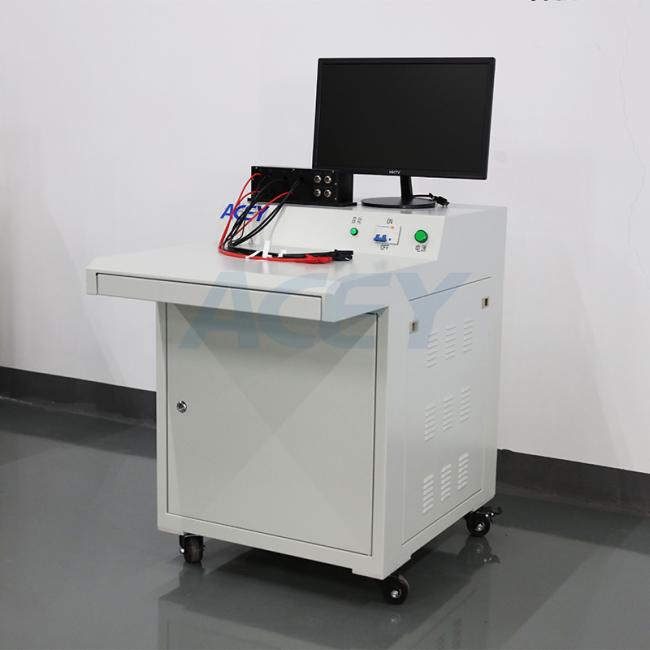

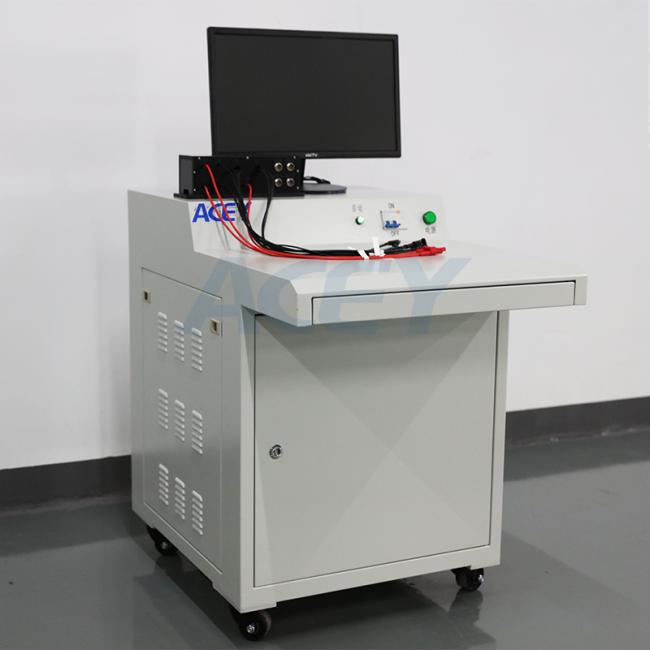

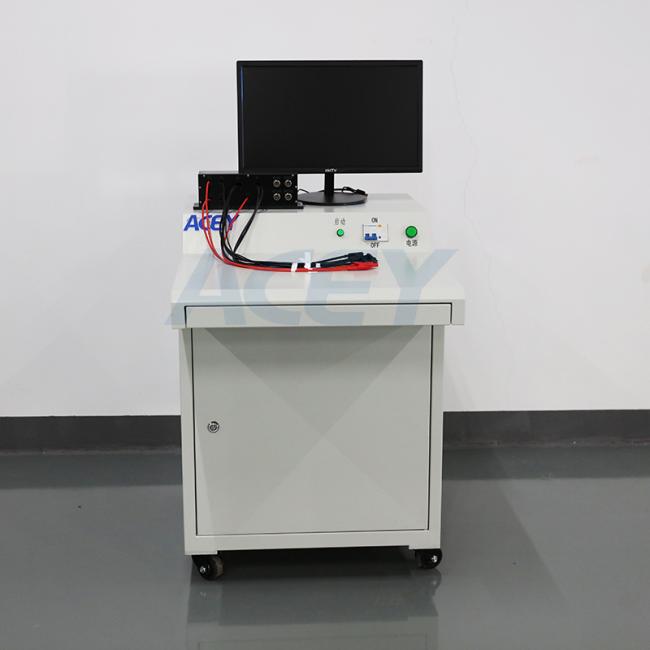

Product Display
