Lab Battery Electrode Foil Slitter Slitting Machine
Product Description
ACEY-SM300 electric slitting machine is designed for precision slitting of lithium‑ion battery positive and negative electrode sheets. It operates with chip feeding and uses upper and lower circular blades driven by an electric motor. The slit width is adjustable by setting the spacing between the blade separators.
Features
*Adjustable guide device for feeding positioning
*Using electric rolling and slitting method;
*The amount of engagement can be adjusted;
*Upper and lower blades are at the same speed, synchronous transmission;
*The hob is equipped with a plexiglass protection device for safe operation;
*Open-type hob fixing method is convenient for hob disassembly;
*High cutting precision and reliable work;
Specification
| Cutting knife type: | upper and lower round knife cut | ||||||
| Cutter width: | 20～300mm | ||||||
| Distribution of knife interval: | 56±0.1mm, 56±0.1mm, 56±0.1mm, 58±0.1mm, 58±0.1mm. 58±0.1mm. | ||||||
| Can be cut thickness: | 80-300μm battery pole piece | ||||||
| The amount of knife eaten: | the hand wheel is adjustable 0.2-0.4mm | ||||||
| Cutter diameter: | 100mm | ||||||
| Cutter material: | ultra-fine alloy steel | ||||||
| Width adjustment: | spacer adjustment | ||||||
| Slitting speed: | <2m/min, adjustable knob | ||||||
| Power supply: | AC220V/50Hz | ||||||
| Power: | 0.5KW | ||||||
| Dimensions: | length 840 × width 600 × height 310 (mm) | ||||||
| Weight: | about 90KG; | ||||||

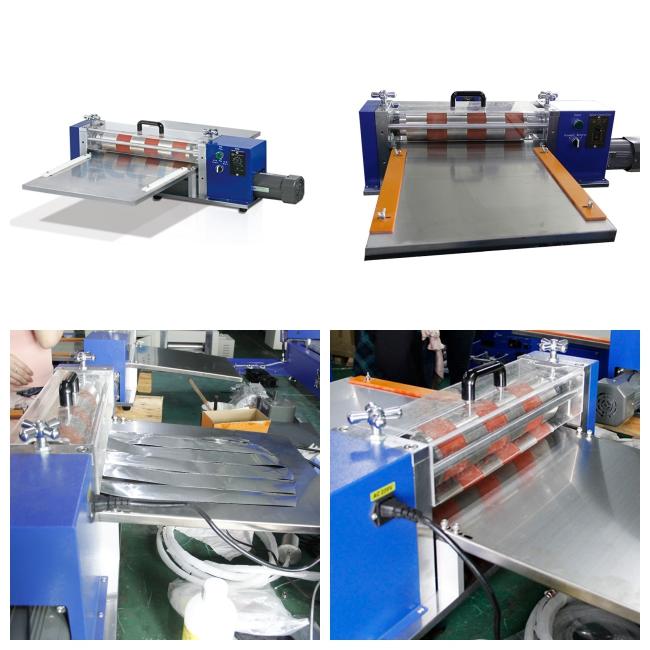

Product Details
