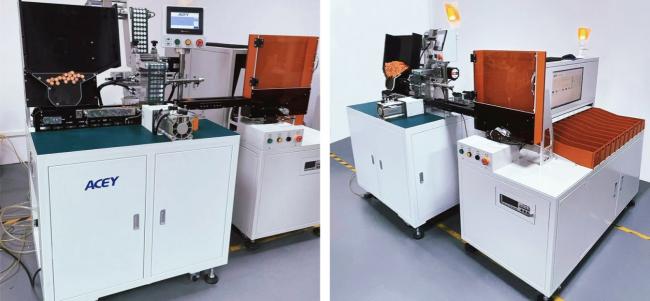

ACEY-SS11 battery insulation paper sticking machine and battery voltage/IR sorting machine are directly integrated and connected in-line, allowing both processes to operate simultaneously. This design enables continuous production, reduces manual handling between processes, and improves overall efficiency.
Equipment Features
-
Integrated in-line design combining insulation paper sticking and voltage/internal resistance sorting in one system
-
Two processes operate simultaneously, enabling continuous operation and higher throughput
-
Eliminates intermediate manual handling between processes, reducing labor cost and handling errorsSupports cylindrical cell models including 18650, 21700, 26650, and 32700
-
High-precision voltage and internal resistance measurement for reliable cell sorting
-
Stable mechanical structure and simple operation, suitable for long-term production use
-
Compact footprint, saving production floor space
Equipment Specification
| Item No. | ACEY-SS11 |
| Sticker machine | |
| Voltage Supply | Single-phase ~ 220V, 50Hz |
| Rated power | 2KW |
| Surface pad material | Highland barley paper or PVC material |
| Material specification requirements | the max diameter of barley paper roll material is 350MM, the inner diameter of paper roll core is 72-75MM |
| batrery type | 18650 battery cell positive or negative pole is automatically pasted with highland barley paper mat or PVC material |
| Feeding method | Insert battery cell hopper: 400pcs each time, available for 2 separate inserting units |
| Pneumatic pressure | 0.4-0.6Mpa barley paper machine |
| Cushioning power | Electric or pneumatic |
| Control device | 7.5 inch touch screen, PLC programmer and servo motor |
| Barley paper roll width | 100mm |
| Speed | 4000-4500PCS/hour, 4PCS per punch |
| Dimensions | L1000mm×710mm×1500mm |
| Machine weight | 200Kg |
| Knife mold | slow-moving wire processing method, high precision, 5000 knife molds are coated once to remove sticky water |
| Sorting machine | |
| Equipment power supply | Single-phase ~220V±10%/50Hz±10%, power <300W |
| Battery Types | 18650(other sizes available) |
| Receiving channel | 10 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. |
| Test parameters | AC internal resistance, DC voltage |
| Internal resistance test | Test range: 80mΩ, |
| Accuracy: ±0.5%rdg | |
| Display resolution: 0.01mΩ | |
| Voltage test | Test range: 8V |
| Accuracy :±0.015%rdg, | |
| Display resolution: 0.01mV | |
| Sorting speed | 6000 pieces/hour |
| Unwinding channel | 400 batteries can be stored |
| Display result | 5.7 inch LCD screen + PC synchronous display + industrial computer |
| Weight | <300Kg |
