1200mm Prismatic Battery Module Stacking And Pressing Machine With 500KG Pressure

Product Description

ACEY-SP1200 prismatic battery module stacking and pressing machine is designed for stacking, compressing, and strapping prismatic lithium battery cells, using a servo motor, ball screw module, and planetary gearbox to deliver precise and stable pressing force controlled by a pressure controller, with a maximum thrust exceeding 500 kg; it supports quick model changeover, allows accurate control of stacking stroke and pressure, and features triple protection—including software limits, hardware limit switches, and pressure limits—to prevent over-compression, ensuring high pressing accuracy, safety, and consistency in battery module assembly.

Product Features

• Controlled by a 7-inch touchscreen HMI combined with a PLC, providing simple and intuitive operation.
• Compatible with various battery models; different parameters can be edited and stored, enabling quick and easy model changeover.
• Built-in high-precision pressure sensor with pressure control accuracy within ±0.1 kg.
• Driven by a ball screw module with a servo motor and reducer, delivering high pressing force and precise positioning accuracy.

Main Technical Parameter

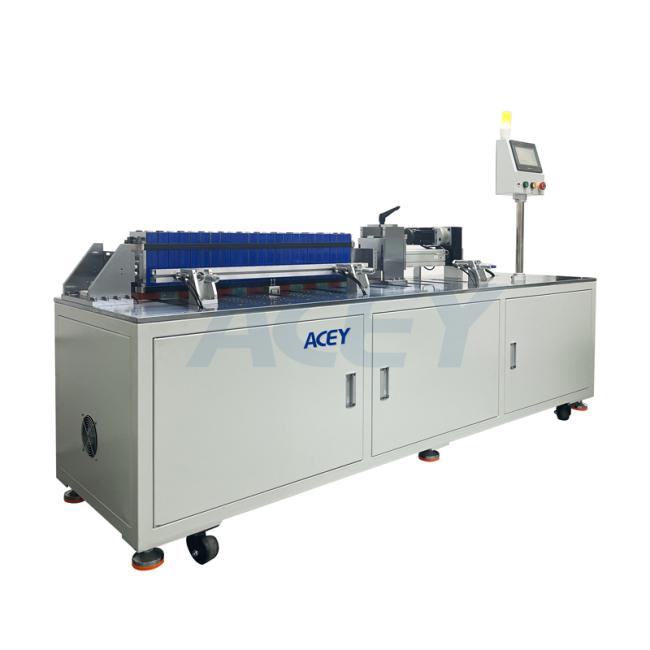

Product Display
