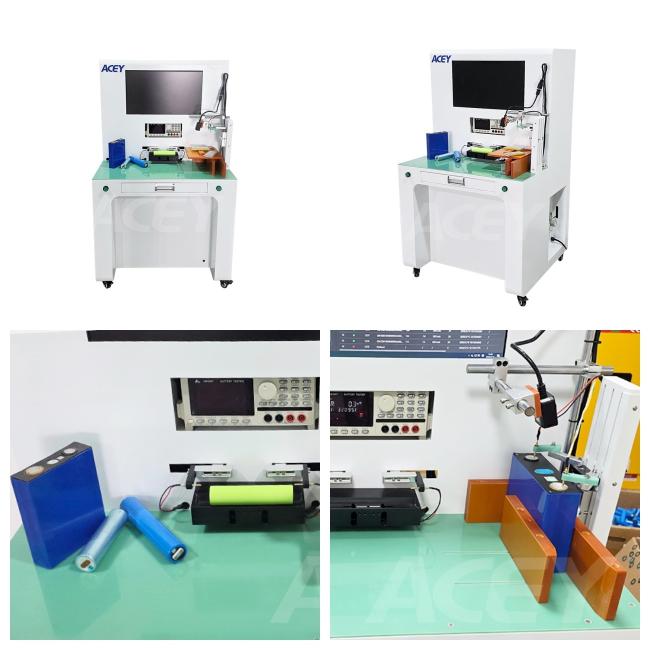

3 In 1 Manual Prismatic Polymer Cylindrical Battery Sorting Machine
Price:
USD 3800~3990/Set
MOQ:
1 Set
Delivery Time:
7~35 Days
Brand:
ACEY
Product Description
3 In 1 Manual Prismatic Polymer Cylindrical Battery Sorting Machine
The ACEY-MS03 requires the operator to manually place a prismatic or cylindrical lithium battery into the test position. When the operator presses the squeeze start button, the prismatic or cylindrical test cylinder presses down (or clamps down), while the internal resistance tester collects and records the battery's internal resistance and internal pressure. The current test gear position is shown on the display. Once the test is complete, the test cylinder rises (or releases), and the operator manually removes the battery.
Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable Battery Types | 280Ah prismatic lithium batteries, cylindrical lithium batteries, polymer cells |
| Compatible Module Dimensions | Prismatic: Length 80-300mm, Thickness 10-100mm, Height 80-300mm Cylindrical: Diameter 21-50mm, Length 65-200mm Polymer: Width 30-300mm, Length 50-500mm |
| Equipment Control Method | PLC control |
| Safety Feature | Dual-hand start for enhanced safety |
| Channel Settings | 10 channel settings available for better cost-effectiveness |
| Dimensions (L×W×H) | 800mm × 750mm × 1302mm |
| Weight | 100 KG |
Equipment Environmental Requirements
| Parameter | Specification |
|---|---|
| Ambient Temperature | 5°C - 35°C |
| Humidity | 20% - 90% |
| Air Pressure | 0.5 - 0.6 MPa |
| Power Supply Voltage | 220V, 50Hz / 60Hz |
| Surface Load Ratio | ≤200 kg/m² |
| Grounding Type | Direct Grounding |
| Site | Free from pollution and strong electromagnetic interference |
| Installation Environment | Flat, free from vibration and shock |
| Equipment Noise | ≤80 dB |
