High Precision Handheld Laser Welder For Battery Pack Welding
Price:
USD 4300~16400/Set
MOQ:
1 Set
Delivery Time:
7~35 Days
Brand:
ACEY
Product Description

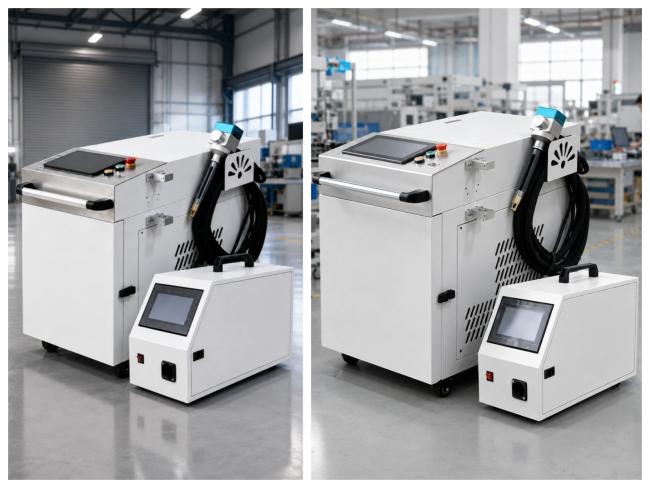

High Precision Handheld Laser Welder For Battery Pack Welding
The ACEY-CLW Series is a handheld laser welding system engineered for lithium battery welding applications. Incorporating a built-in dual-axis galvanometer and a flexible handheld design, it delivers precise, stable welds on aluminum, nickel, copper, and other common electrode materials. An 8-meter cable provides extended reach for large battery packs, making the unit well-suited for pack production, battery repair, and new energy vehicle maintenance.
Key Features
- Flexible Power Output & Dual-Mode Operation: Available in 1000W, 2000W, and 3000W variants to suit diverse welding requirements, with switchable handheld/gantry operation for maximum application versatility.
- Extended Reach & Precision Spot Positioning: Equipped with an 8-meter cable for large-format battery pack servicing, and a built-in dual-axis galvanometer scanning system that ensures accurate small-spot positioning.
- Customizable Weld Paths & Energy Waveform Control: Programmable welding pattern geometry and output energy waveform shaping allow for process optimization across dissimilar materials including aluminum, nickel, and copper.
- Versatile Nozzle Options & Low-Skill Operation: Interchangeable welding nozzles accommodate irregular or hard-to-reach geometries, while the built-in graphic processing software simplifies setup and reduces operator skill dependence.
- Superior Weld Quality & Battery Performance: Delivers stable, repeatable spot welds that minimize contact resistance within battery packs, directly enhancing overall output performance and reliability - ideally suited for EV service centers, lithium battery distributors, and pack manufacturers.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Handheld Galvo Laser Welding Machine |
| Product Model | ACEY-CLW Series |
| Power Supply | AC 220V for 1500W/2000W models; AC 380V for ≥3000W model |
| Output Power | 1500W / 2000W / 3000W |
| Power Consumption | ≤6kW, 1500W model |
| Laser Wavelength | 1070±10nm |
| Cooling Method | Water Cooling |
| Welding Gun Head Weight | 1.5kg |
| Product Dimensions | 90 × 75 × 41.5cm |
| Machine Weight | 133kg |
