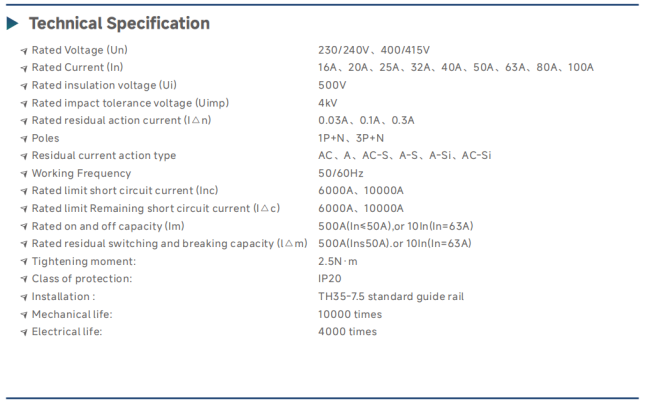

AZL9 Rated residual action current 0.03A,0.1A,0.3A IEC/EN 61008-1

AZL9 residual current operated circuit breaker is suitable for AC 50/60Hz, rated voltage two poles 240V, four poles 415V, rated current up to 100A lines. When a person is electrocuted or the leakage current of the power grid exceeds the specified value, the circuit breaker can quickly cut off the faulty power supply in a very short time, protecting the safety of people and electrical equipment. It can also be used for infrequent on/off operations of the line under normal conditions.

Circuit breakers are suitable for various occasions such as industrial,commercial, high-rise, and residential use.

RoHS 2.0 compliant

Double busbar wiring function

With leakage fault indication

Wiring Capacity 1-35mm²
