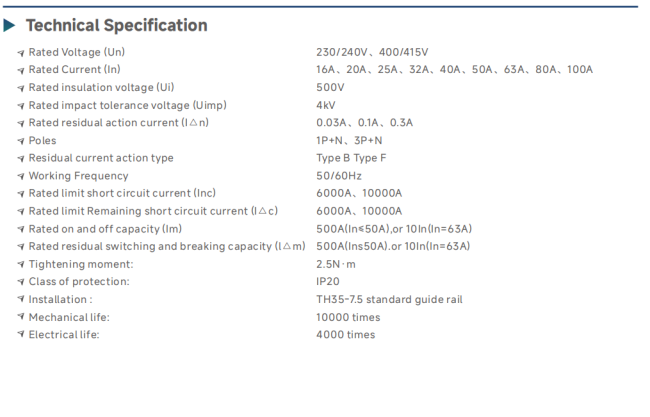

AZL9-F/B Rated residual action current 0.03A,0.1A,0.3A IEC/EN 61008-1,IEC/EN 62423

GYL9-F/B residual current operated circuit breaker is suitable for AC 50/60Hz, rated voltage two poles 240V, four poles 415V, rated current up to 100A lines. Used for detecting AC leakage, pulsating DC leakage, smooth DC leakage, composite wave leakage, and high-frequency leakage up to 1kHz. When personal electric shock or circuit leakage current exceeds the specified value,the circuit breaker automatically cuts off the faulty power supply in a very short time, protecting the safety of personnel and electrical equipment. The circuit breaker can also be used for infrequent on/off operations of the line under normal circumstances.

The circuit breaker is suitable for various applications, including industrial, commercial, high-rise buildings, and residential use.

Equipped with AC leakage, pulsating DC leakage, smooth DC leakage, composite wave leakage, and high-frequency leakage protection devices up to 1kHz - with complete protection functions.

Compliant with environmental RoHS 2.0.

Double busbar wiring function.

The product has a leakage fault indicator.

Wiring capacity: (1-35) mm²
