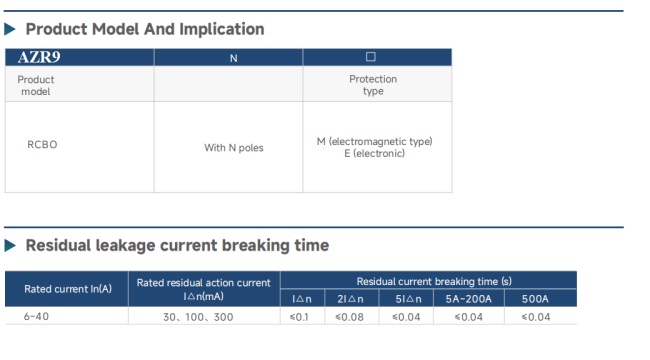

AZR9N Rated residual action current 0.03A,0.1A,0.3A IEC/EN 61009-1

AZR9N residual current operated circuit breaker is suitable for AC 50/60Hz, rated voltage up to 415V, and rated current up to 40A lines. When a person is electrocuted or the leakage currentof the power grid exceeds the specified value, the circuit breaker can quickly cut off the faulty power supply in a very short time, protecting the safety of people and electrical equipment. It can also be used for overload and short circuit protection of the line, and for infrequent on-off operation under normal circumstances.

Circuit breakers are suitable for various occasions such as industrial, commercial, high-rise, and residential use.

RoHS 2.0 compliant

With leakage fault indication

Wiring Capacity 1-25mm²
