EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems
EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems

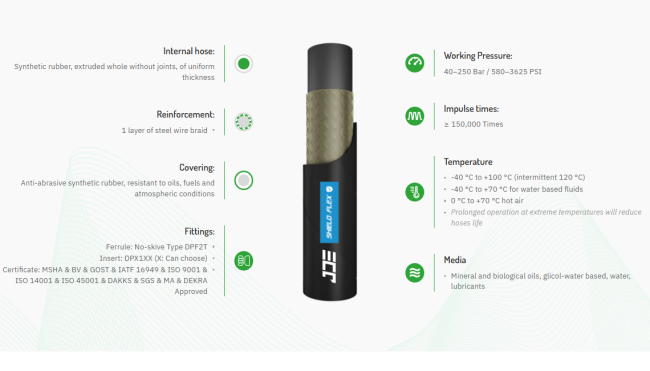

Standard Hose Product Name
Internal hose: synthetic rubber, extruded whole without joints, of uniform thickness
Reinforcement: 1 layer of steel wire braid
Cover: Abrasion-resistant synthetic rubber (resists oils, fuels & atmospheric conditions)
Working pressure: 40–250 Bar / 580–3625 PSI
Impulse cycles: ≥150,000 times
Temperature: -40℃ to +100℃ (intermittent 120℃)
Standard Hose Specification
|
Part Number |
Hose Size |
I.D. |
Braid |
O.D. |
Operating Pressure |
Burst Pressure |
Bend Radius |
Weight |
Length Per PCS |
Ferrule |
||||
|
I.D. |
Dash Size |
mm |
inch |
mm |
mm |
mm |
bar |
psi |
bar |
psi |
mm |
kgs/m |
meter |
DME Code |
|
JDE 211101-5 |
-03 |
4.8 |
3/16'' |
4.6-5.4 |
9.0-10.0 |
12.5 MAX. |
250 |
3625 |
1000 |
14500 |
90 |
0.240 |
50/100 |
DPF2T-03 |
|
JDE 211101-6 |
-04 |
6.4 |
1/4'' |
6.2-7.0 |
10.6-11.6 |
14.1 MAX. |
225 |
3262.5 |
900 |
13050 |
100 |
0.255 |
50/100 |
DPF2T-04 |
|
JDE 211101-8 |
-05 |
8.0 |
5/16'' |
7.7-8.5 |
12.1-13.3 |
15.7 MAX. |
215 |
3117.5 |
860 |
12470 |
115 |
0.304 |
50/100 |
DPF2T-05 |
|
JDE 211101-10 |
-06 |
9.5 |
3/8'' |
9.3-10.1 |
14.5-15.7 |
18.1 MAX. |
180 |
2610 |
720 |
10440 |
130 |
0.390 |
50/100 |
DPF2T-06 |
|
JDE 211101-12 |
-08 |
12.7 |
1/2'' |
12.3-13.5 |
17.5-19.1 |
21.4 MAX. |
160 |
2320 |
640 |
9280 |
180 |
0.472 |
50/100 |
DPF2T-08 |
|
JDE 211101-16 |
-10 |
16.0 |
5/8'' |
15.5-16.7 |
20.6-22.2 |
24.5 MAX. |
130 |
1885 |
520 |
7540 |
200 |
0.581 |
50/100 |
DPF2T-10 |
|
JDE 211101-19 |
-12 |
19.0 |
3/4'' |
18.6-19.8 |
24.6-26.2 |
28.5 MAX. |
105 |
1522.5 |
420 |
6090 |
240 |
0.690 |
50/100 |
DPF2T-12 |
|
JDE 211101-25 |
-16 |
25.4 |
1'' |
25.0-26.4 |
32.5-34.1 |
36.6 MAX. |
88 |
1276 |
352 |
5104 |
300 |
0.830 |
50/100 |
DPF2T-16 |
|
JDE 211101-32 |
-20 |
31.8 |
1-1/4'' |
31.4-33.0 |
39.3-41.7 |
44.8 MAX. |
63 |
913.5 |
252 |
3654 |
420 |
1.325 |
20/40 |
DPF2T-20 |
|
JDE 211101-38 |
-24 |
38.1 |
1-1/2'' |
37.7-39.3 |
45.6-48.0 |
52.1 MAX. |
50 |
725 |
200 |
2900 |
500 |
1.500 |
20/40 |
DPF2T-24 |
|
JDE 211101-51 |
-32 |
50.8 |
2'' |
50.4-52.0 |
58.7-61.7 |
65.5 MAX. |
40 |
580 |
160 |
2320 |
630 |
1.875 |
20/40 |
DPF2T-32 |
Standard Hose Advantage
- Ease & Compliance: No-skive fittings (quick assembly) + global certifications (MSHA, ISO, etc.).
- Versatility: Works with oils, water-based fluids & lubricants—ideal for construction/manufacturing.
