Abrasion Resistant SAE 100R16 Standard Hose For Industrial Hydraulic Rubber Hose
Abrasion-Resistant SAE 100R16 Standard Hose for Industrial Applications
Standard Hose Product Name
Product Name: SAE J517 R16 Wire Braided Fluid Hose

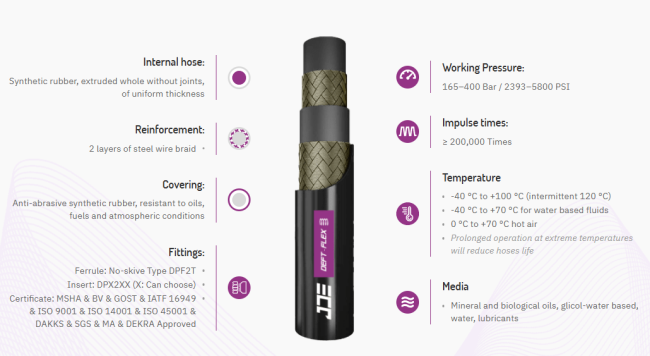

Internal hose: synthetic rubber, extruded whole without joints, of uniform thickness
Reinforcement: 2 layers of steel wire braid
Cover: Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions
Ferrule: No-skive Type DPF2T
Insert: DPX2XX (X: Can choose)
Working pressure:125–400 Bar / 1812.5–5800 PSI
Impulse cycles: ≥ 200,000 Times
Temperature: -40℃ to +100℃ (intermittent 120℃)
Standard Hose Specification
|
Part Number |
Hose Size |
I.D. |
Braid |
O.D. |
Operating Pressure |
Burst Pressure |
Bend Radius |
Weight |
Length Per PCS |
Ferrule |
||||
|
I.D. |
Dash Size |
mm |
inch |
mm |
mm |
mm |
bar |
psi |
bar |
psi |
mm |
kgs/m |
meter |
DME Code |
|
JDE 311116-6 |
-04 |
6.4 |
1/4'' |
6.2-7.0 |
12.3 MAX. |
14.5 MAX. |
400 |
5800 |
1600 |
23200 |
50 |
0.290 |
50/100 |
DPF2T-04 |
|
JDE 311116-8 |
-05 |
8.0 |
5/16'' |
7.7-8.5 |
13.3 MAX. |
15.7 MAX. |
350 |
5075 |
1400 |
20300 |
55 |
0.330 |
50/100 |
DPF2T-05 |
|
JDE 311116-10 |
-06 |
9.5 |
3/8'' |
9.3-10.1 |
15.9 MAX. |
18.8 MAX. |
330 |
4785 |
1320 |
19140 |
65 |
0.420 |
50/100 |
DPF2T-06 |
|
JDE 311116-12 |
-08 |
12.7 |
1/2'' |
12.3-13.5 |
19.0 MAX. |
22.0 MAX. |
275 |
3987.5 |
1100 |
15950 |
90 |
0.550 |
50/100 |
DPF2T-08 |
|
JDE 311116-16 |
-10 |
16.0 |
5/8'' |
15.5-16.7 |
22.6 MAX. |
25.4 MAX. |
250 |
3625 |
1000 |
14500 |
100 |
0.650 |
50/100 |
DPF2T-10 |
|
JDE 311116-19 |
-12 |
19.0 |
3/4'' |
18.6-19.8 |
26.3 MAX. |
29.0 MAX. |
215 |
3117.5 |
860 |
12470 |
120 |
0.790 |
50/100 |
DPF2T-12 |
|
JDE 311116-25 |
-16 |
25.4 |
1'' |
25.0-26.4 |
34.0 MAX. |
36.6 MAX. |
165 |
2392.5 |
660 |
9570 |
150 |
1.180 |
50/100 |
DPF2T-16 |
|
JDE 311116-32 |
-20 |
31.5 |
1-1/4'' |
31.4-33.0 |
41.9 MAX. |
44.3 MAX |
125 |
1812.5 |
500 |
7250 |
210 |
1.800 |
40/50 |
DPF2T-20 |
