4 Layer Steel Wire Spiral SAE J517 R9 Standard Hydraulic Hose Abrasion Resistant
SAE J517 R9 Standard Hose Wire Spiral Hydraulic Hose
Hydraulic Hose Product Introduction
Hydraulic Hose specification
| Part Number | Hose Size | I.D. | R.O.D. | O.D. | Operating Pressure | Burst Pressure | Bend Radius | Weight | Length Per PCS | Ferrule | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | Dash Size | mm | inch | mm | mm | mm | bar | psi | bar | psi | mm | kgs/m | meter | DMECode |
| JDE 311109-10 | -06 | 9.5 | 3/8'' | 9.3-10.1 | 16.6-17.8 | 19.5-21.0 | 276 | 4002 | 1104 | 16008 | 130 | 0.700 | 20/40 | DPF4T-06 |
| JDE 311109-12 | -08 | 12.7 | 1/2'' | 12.3-13.5 | 19.9-21.5 | 23.0-24.6 | 276 | 4002 | 1104 | 16008 | 180 | 0.800 | 20/40 | DPF4T-08 |
| JDE 311109-16 | -10 | 16.0 | 5/8'' | 15.5-16.7 | 23.8-25.4 | 26.6-28.8 | 276 | 4002 | 1104 | 16008 | 200 | 0.975 | 20/40 | DPF4T-10 |
| JDE 311109-19 | -12 | 19.0 | 3/4'' | 18.6-19.8 | 26.9-28.4 | 29.9-31.5 | 276 | 4002 | 1104 | 16008 | 240 | 1.450 | 20/40 | DPF4T-12 |
| JDE 311109-25 | -16 | 25.4 | 1'' | 25.0-26.4 | 34.1-35.7 | 36.8-39.2 | 276 | 4002 | 1104 | 16008 | 300 | 2.050 | 20/40 | DPF4T-16 |
| JDE 311109-32 | -20 | 31.8 | 1-1/4'' | 31.4-33.0 | 42.7-45.1 | 45.4-48.6 | 207 | 3001.5 | 828 | 12006 | 420 | 3.060 | 20/40 | DPF4T-20 |
| JDE 311109-38 | -24 | 38.1 | 1-1/2'' | 37.7-39.3 | 49.2-51.6 | 51.9-55.0 | 172 | 2494 | 688 | 9976 | 500 | 3.650 | 20/40 | DPF4T-24 |
| JDE 311109-51 | -32 | 50.8 | 2'' | 50.4-52.0 | 62.5-64.8 | 65.1-68.3 | 172 | 2494 | 688 | 9976 | 630 | 4.850 | 20/40 | DPF4T-32 |
Hydraulic Hose Advantages

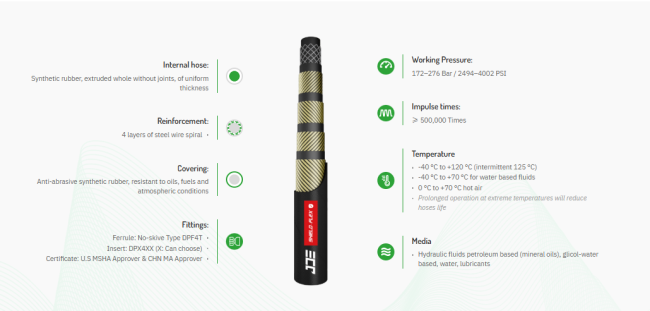

1. Premium and Durable Structure: The internal hose is made of synthetic rubber, extruded integrally without joints and with uniform thickness, ensuring good tightness and stability. It is reinforced with 4 layers of steel wire spiral for strong pressure-bearing capacity, and the outer cover is anti-abrasive synthetic rubber that is resistant to oils, fuels and atmospheric conditions, effectively extending the service life.
2. Convenient Installation and High Adaptability: The fittings adopt no-skive Type DPF4T ferrule and DPX4XX insert (X is selectable), the no-skive design simplifies the installation process, and the optional insert specification enhances compatibility with different application scenarios.
3. Authoritative Certification and Compliance: It has obtained U.S. MSHA Approval and CHN MA Approval, meeting the relevant safety and quality standards, and can meet the market access requirements of corresponding regions.
4. Excellent Working Performance: The working pressure ranges from 172 to 276 Bar (2494 to 4002 PSI) with strong pressure resistance; the impulse times are no less than 500,000 times, showing excellent fatigue resistance. It has a wide temperature adaptation range, suitable for different working environments such as normal temperature, low temperature, high temperature and hot air, and can adapt to various temperature requirements of different media.
5. Versatile Medium Compatibility: It is applicable to multiple media including petroleum-based hydraulic fluids (mineral oils), glycol-water based fluids, water and lubricants, covering a variety of hydraulic system application needs.
