4 Layer Steel Standard Hose Wire Spiral Hydraulic Hose SAE J517 R13

SAE J517 R13 Standard Hose Wire Spiral Hydraulic Hose

Hydraulic Hose Product Introduction

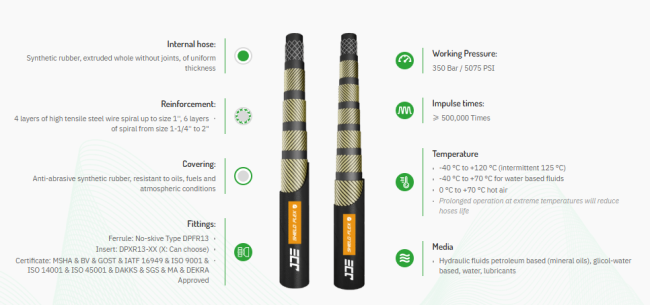

The internal hose is made of synthetic rubber, extruded integrally without joints and with uniform thickness; its reinforcement structure consists of 4 layers of high tensile steel wire spiral for sizes up to 1'', and 6 layers of spiral for sizes from 1-1/4'' to 2''. The outer covering is anti-abrasive synthetic rubber that is resistant to oils, fuels and atmospheric conditions. For fittings, it adopts no-skive Type DPFR13 ferrule and DPXR13-XX insert (X is selectable), and is approved by multiple certifications including MSHA, BV, GOST, IATF 16949, ISO 9001, ISO 14001, ISO 45001, DAKKS, SGS, MA and DEKRA. Its working pressure is 350 Bar (5075 PSI), and the impulse times are no less than 500,000. The working temperature ranges from -40 °C to +120 °C (intermittently up to 125 °C), -40 °C to +70 °C for water-based fluids, and 0 °C to +70 °C for hot air, noting that prolonged operation at extreme temperatures will reduce the hose’s service life. It is suitable for petroleum-based hydraulic fluids (mineral oils), glycol-water based fluids, water and lubricants.



Hydraulic Hose specification

Hydraulic Hose Advantages

1. High-quality Structure: Internal hose is synthetic rubber (integral extrusion, no joints, uniform thickness); reinforcement is 4-layer high tensile steel wire spiral (≤1'') and 6-layer spiral (1-1/4''–2''), with abrasion/oil/fuel/atmosphere-resistant outer cover, durable and stable.

2. Easy Installation: No-skive DPFR13 ferrule and optional DPXR13-XX insert, adaptable and simple to assemble.

3. Comprehensive Certifications: Approved by MSHA, BV, GOST, IATF 16949, ISO series, DAKKS, SGS, MA, DEKRA, compliant with global standards.

4. Excellent Performance: Working pressure up to 350 Bar (5075 PSI), impulse times ≥500,000, with wide temperature adaptability for diverse environments.

5. Versatile Media: Suitable for petroleum-based (mineral oils), glycol-water based fluids, water and lubricants, fitting various hydraulic systems.
