Wire Spiral Custom Hydraulic Hoses SAE J517 R15 Standard high tensile
SAE J517 R15 Standard Hose Wire Spiral Hydraulic Hose
Hydraulic Hose Product Introduction
Hydraulic Hose specification
| Part Number | Hose Size | I.D. | R.O.D. | O.D. | Operating Pressure | Burst Pressure | Bend Radius | Weight | Length Per PCS | Ferrule | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | Dash Size | mm | inch | mm | mm | mm | bar | psi | bar | psi | mm | kgs/m | meter | DMECode |
| JDE 311115-10 | -06 | 9.3 | 3/8'' | 9.3-10.1 | 20.3 MAX | 23.3 MAX | 420 | 6090 | 1680 | 24360 | 150 | 0.800 | 20/40 | DPFR15-06 |
| JDE 311115-12 | -08 | 12.3 | 1/2'' | 12.3-13.5 | 24.0 MAX | 26.8 MAX | 420 | 6090 | 1680 | 24360 | 200 | 0.900 | 20/40 | DPFR15-08 |
| JDE 311115-19 | -12 | 19.0 | 3/4'' | 18.6-19.8 | 32.9 MAX | 36.1 MAX | 420 | 6090 | 1680 | 24360 | 265 | 1.600 | 20/40 | DPFR15-12 |
| JDE 311115-25 | -16 | 25.4 | 1'' | 25.0-26.4 | 38.9 MAX | 42.9 MAX | 420 | 6090 | 1680 | 24360 | 330 | 2.250 | 20/40 | DPFR15-16 |
| JDE 311115-32 | -20 | 31.8 | 1-1/4'' | 31.4-33.0 | 48.4 MAX | 51.5 MAX | 420 | 6090 | 1680 | 24360 | 445 | 3.950 | 20/40 | DPFR15-20 |
| JDE 311115-38 | -24 | 38.1 | 1-1/2'' | 37.7-39.3 | 56.3 MAX | 59.6 MAX | 420 | 6090 | 1680 | 24360 | 530 | 5.250 | 20/40 | DPFR15-24 |
| JDE 311115-51 | -32 | 50.8 | 2'' | 37.7-39.3 | - | - | 420 | 6090 | 1680 | 24360 | - | - | 20/40 | DPFR15-32 |
Hydraulic Hose Advantages
1.Superior Structural Durability

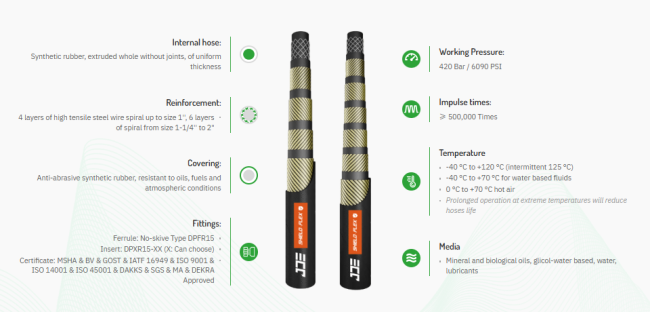

Inner tube is one-piece extruded synthetic rubber with uniform thickness (no joints for leakproofness); reinforcement is graded high tensile steel wire spiral (4 layers for ≤1'', 6 layers for 1-1/4''–2'') for ultra-strong pressure bearing, matched with oil/fuel/abrasion/atmosphere-resistant outer cover for long service life.
2.High Pressure & Stable Performance
Rated working pressure up to 420 Bar/6090 PSI with impulse times ≥500,000 times, excellent fatigue resistance and pressure resistance, suitable for high-pressure hydraulic system scenarios.
3.Flexible Installation & Strong Adaptability
Equipped with no-skive DPFR15 ferrule and optional DPXR15-XX insert, no stripping required for installation (saves time and labor); graded reinforcement design adapts to different size requirements of industrial applications.
4.Globally Authoritative Certifications
Approved by MSHA, BV, GOST, IATF 16949, full ISO series, DAKKS, SGS, MA, DEKRA, complies with international ISO 3862 R15 standard, meets market access requirements of multiple countries/regions.
5.Wide Working Condition Adaptability
Broad temperature range (-40°C~+120°C, intermittent 125°C), adaptive to water-based fluids (-40°C~+70°C) and hot air (0°C~+70°C); compatible with petroleum-based (mineral oils), glycol-water based fluids, water and lubricants, suitable for diverse industrial hydraulic working environment
