SAE 100R2AT Hydraulic Hose 2 Layers Steel Wire Braided Rubber Hose
SAE 100R2AT Hydraulic Hose | 2-layers Steel Wire Braided
Hydraulic Hose product introduction
Hydraulic Hose specification
|
Part Number |
Hose Size |
I.D. |
Braid |
O.D. |
Operating Pressure |
Burst Pressure |
Bend Radius |
Weight |
Length Per PCS |
Ferrule |
||||
|
I.D. |
Dash Size |
mm |
inch |
mm |
mm |
mm |
bar |
psi |
bar |
psi |
mm |
kgs/m |
meter |
DME Code |
|
JDE 211102-5 |
-03 |
4.8 |
3/16'' |
4.6-5.4 |
9.0-10.0 |
14.1 MAX. |
415 |
6017.5 |
1660 |
24070 |
90 |
0.340 |
50/100 |
DPF2T-03 |
|
JDE 211102-6 |
-04 |
6.4 |
1/4'' |
6.2-7.0 |
10.6-11.6 |
15.7 MAX. |
400 |
5800 |
1600 |
23200 |
100 |
0.372 |
50/100 |
DPF2T-04 |
|
JDE 211102-8 |
-05 |
8.0 |
5/16'' |
7.7-8.5 |
12.1-13.3 |
17.3 MAX. |
350 |
5075 |
1400 |
20300 |
115 |
0.430 |
50/100 |
DPF2T-05 |
|
JDE 211102-10 |
-06 |
9.5 |
3/8'' |
9.3-10.1 |
14.5-15.7 |
19.7 MAX. |
330 |
4785 |
1320 |
19140 |
130 |
0.560 |
50/100 |
DPF2T-06 |
|
JDE 211102-12 |
-08 |
12.7 |
1/2'' |
12.3-13.5 |
17.5-19.1 |
23.0 MAX. |
275 |
3987.5 |
1100 |
15950 |
180 |
0.640 |
50/100 |
DPF2T-08 |
|
JDE 211102-16 |
-10 |
16.0 |
5/8'' |
15.5-16.7 |
20.6-22.2 |
26.2 MAX. |
250 |
3625 |
1000 |
14500 |
200 |
0.732 |
50/100 |
DPF2T-10 |
|
JDE 211102-19 |
-12 |
19.0 |
3/4'' |
18.6-19.8 |
24.6-26.2 |
30.1 MAX. |
215 |
3117.5 |
860 |
12470 |
240 |
0.930 |
50/100 |
DPF2T-12 |
|
JDE 211102-25 |
-16 |
25.4 |
1'' |
25.0-26.4 |
32.5-34.1 |
38.9 MAX. |
165 |
2392.5 |
660 |
9570 |
300 |
1.360 |
50/100 |
DPF2T-16 |
|
JDE 211102-32 |
-20 |
31.8 |
1-1/4'' |
31.4-33.0 |
39.3-41.7 |
49.5 MAX. |
125 |
1812.5 |
500 |
7250 |
420 |
1.850 |
20/40 |
DPF2T-20 |
|
JDE 211102-38 |
-24 |
38.1 |
1-1/2'' |
37.7-39.3 |
45.6-48.0 |
55.9 MAX. |
90 |
1305 |
360 |
5220 |
500 |
2.300 |
20/40 |
DPF2T-24 |
|
JDE 211102-51 |
-32 |
50.8 |
2'' |
50.4-52.0 |
58.7-61.7 |
68.6 MAX. |
80 |
1160 |
320 |
4640 |
630 |
2.650 |
20/40 |
DPF2T-32 |

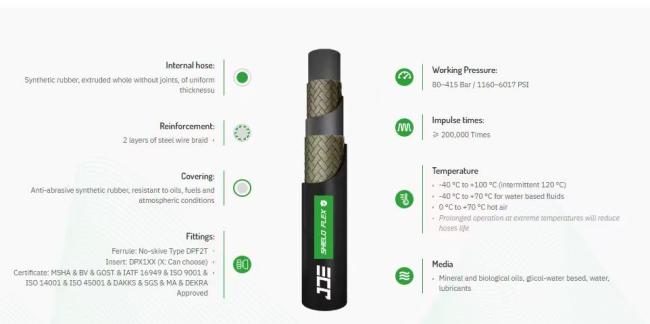

Hydraulic Hose Advantages
1.Internal hose made of synthetic rubber, integrally extruded without joints and uniform thickness, ensuring good sealing and stability.
2.Reinforced with 2 layers of steel wire braid for high pressure resistance and strong structural strength.
3.Anti-abrasive outer cover with excellent resistance to oils, fuels and atmospheric conditions, suitable for harsh working environments.
4.Wide working pressure range of 80–415 Bar / 1160–6017 PSI and impulse times ≥ 200,000 times for long service life.
5.Wide operating temperature range for different media and working conditions.
6.Compatible with mineral oils, biological oils, glycol-water fluids, water and lubricants.
7.Equipped with No-skive ferrule DPF2T and insert DPX2XX (customizable), easy to assemble and reliable in connection.
8.Approved with multiple international certificates, complying with global quality standards.
