Wire Steel Braided Hydraulic Hose Exact Flex Series Rubber Hose Hydraulic 2 Layers
Super Pressure 1SNK Wire Braided Hydraulic Fluid Hose Exact Flex Series
Fluid Hose product introduction
The Super Pressure 1SNK Wire Braided Fluid Hose is a high-performance hydraulic hose from the JDE Exact Flex series, engineered with German technology for demanding industrial applications.

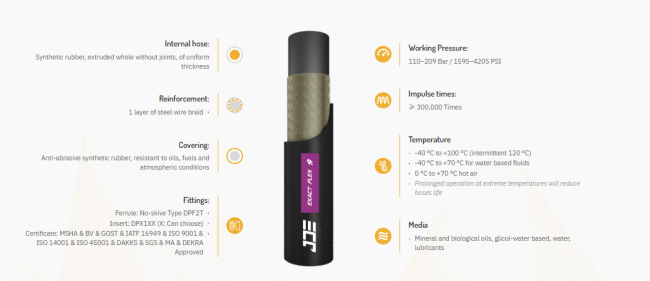

It features a seamless extruded synthetic rubber inner tube, a single layer of high-tensile steel wire braid reinforcement, and an anti-abrasive synthetic rubber cover. Designed for ultra-high impulse resistance and reliable pressure performance, it delivers exceptional durability, flexibility, and safety in hydraulic and fluid transmission systems across multiple industries.
Fluid Hose specification
| Part Number | Hose Size | I.D. | R.O.D. | O.D. | Operating Pressure | Burst Pressure | Bend Radius | Weight | Length Per PCS | Ferrule | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | Dash Size | mm | inch | mm | mm | mm | bar | psi | bar | psi | mm | kgs/m | meter | DMECode |
| EXA 211121-06 | -04 | 6.4 | 1/4'' | 6.1-6.9 | 10.3 | 12.1 | 290 | 4205 | 1160 | 16820 | 75 | 0.190 | 50/100 | DPF2T-04 |
| EXA 211121-08 | -05 | 8.0 | 5/16'' | 7.7-8.5 | 11.7 | 13.7 | 250 | 3625 | 1000 | 14500 | 85 | 0.220 | 50/100 | DPF2T-05 |
| EXA 211121-10 | -06 | 9.5 | 3/8'' | 9.3-10.1 | 13.6 | 15.9 | 230 | 3335 | 920 | 13340 | 90 | 0.250 | 50/100 | DPF2T-06 |
| EXA 211121-12 | -08 | 12.7 | 1/2'' | 12.3-13.5 | 16.9 | 19.2 | 200 | 2900 | 800 | 11600 | 130 | 0.350 | 50/100 | DPF2T-08 |
| EXA 211121-16 | -10 | 16.0 | 5/8'' | 15.5-16.7 | 20.3 | 22.3 | 150 | 2175 | 600 | 8700 | 150 | 0.450 | 50/100 | DPF2T-10 |
| EXA 211121-19 | -12 | 19.0 | 3/4'' | 18.6-19.8 | 23.9 | 26.1 | 125 | 1812.5 | 500 | 7250 | 180 | 0.500 | 50/100 | DPF2T-12 |
| EXA 211121-25 | -16 | 25.4 | 1'' | 25.0-26.4 | 31.0 | 33.0 | 110 | 1595 | 440 | 6380 | 230 | 0.750 | 50/100 | DPF2T-16 |
Fluid Hose Advantages
Ultra-High Impulse Resistance: Withstands ≥ 300,000 impulse cycles, far exceeding industry standards, ensuring long service life in pulsating hydraulic systems.
Super Pressure Rating: Delivers reliable working pressure up to 209 Bar (4205 PSI), suitable for high-load hydraulic applications.
Seamless Inner Tube: Extruded whole without joints, uniform thickness, eliminating leakage risks and ensuring smooth fluid flow.
Excellent Wear & Weather Resistance: Anti-abrasive synthetic rubber cover resists oils, fuels, and atmospheric conditions, ideal for harsh industrial and outdoor environments.
High Flexibility: Single wire braid design balances strength and flexibility, easy to install in tight spaces and complex routing.
No-Skive Fitting Compatibility: Compatible with no-skive type DPF2T ferrules, simplifying assembly and reducing installation time.
Full Certification Compliance: Approved by multiple international standards (MSHA, ISO, IATF, etc.), ensuring quality and safety for global customers.
Wide Temperature Compatibility: Operates reliably from -40°C to +100°C, suitable for extreme cold and hot working conditions.
