Exceed Spiral OEM Hoses Hydraulic Hose 4 Layers Super Impulse 4SH
Super Impulse 4SH Iso 18752 4dc Exceed Spiral Hydraulic Hose
Hydraulic Hose product introduction
The Super Impulse ISO 18752 4DC Exceed 4SH Spiral Hydraulic Hose is a high-performance ultra-high pressure hydraulic hose from JDE's Exact Flex series, engineered with American technology for heavy-duty industrial applications.

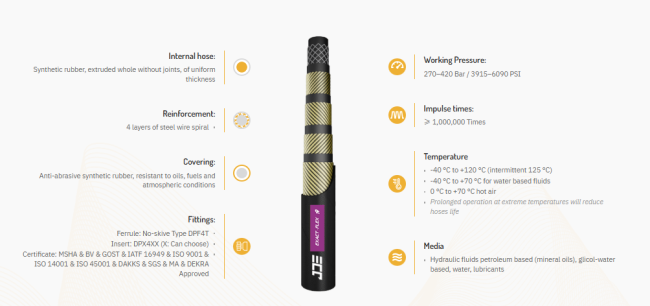

It features a seamless extruded synthetic rubber inner tube, 4 layers of high-tensile steel wire spiral reinforcement, and an anti-abrasive synthetic rubber cover. Designed for 1,000,000+ impulse cycles and ultra-high working pressure, it delivers exceptional durability, fatigue resistance, and safety in demanding hydraulic systems, far exceeding the performance of standard 4SH hoses.
Hydraulic Hose specification
| Part Number | Hose Size | I.D. | Braid | O.D. | Operating Pressure | Burst Pressure | Bend Radius | Weight | Length Per PCS | Ferrule | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | Dash Size | mm | inch | mm | mm | mm | bar | psi | bar | psi | mm | kgs/m | meter | DMECode |
| EXA 911114-19 | -12 | 19.0 | 3/4" | 19.0±0.3 | 28.2±0.5 | 29.2±0.5 | 420 | 6090 | 1680 | 24360 | 280 | 1.60 | 40 | DPFR13-12 |
| EXA 911114-25 | -16 | 25.4 | 1" | 25.4±0.3 | 35.1±0.5 | 36.1±0.5 | 420 | 6090 | 1680 | 24360 | 340 | 2.20 | 40 | DPFR13-16 |
| EXA 911114-32 | -20 | 31.8 | 1-1/4" | 32.0±0.3 | 42.5±0.5 | 43.5±0.5 | 350 | 5075 | 1400 | 20300 | 460 | 2.75 | 40 | DPFR13-20 |
| EXA 911114-38 | -24 | 38.1 | 1-1/2" | 38.0±0.3 | 49.2±0.5 | 51.2±0.5 | 310 | 4495 | 1240 | 17980 | 560 | 3.75 | 40 | DPFR13-24 |
| EXA 911114-51 | -32 | 50.8 | 2" | 51.0±0.3 | 62.3±0.5 | 64.3±0.5 | 270 | 3915 | 1080 | 15660 | 700 | 4.95 | 40 | DPFR13-32 |
Hydraulic Hose Applications
Industry-Leading Impulse Life: Withstands ≥ 1,000,000 impulse cycles, far exceeding standard 4SH requirements, delivering ultra-long service life in high-pulsation, heavy-duty systems.
Ultra-High Pressure Rating: Delivers reliable working pressure up to 420 Bar (6090 PSI), suitable for extreme heavy-load hydraulic applications.
4-Layer Spiral Reinforcement: 4 layers of high-tensile steel wire spiral provide exceptional burst strength, fatigue resistance, and stability under extreme pressure.
Seamless Inner Tube: Extruded whole without joints, uniform thickness, eliminating leakage risks and ensuring smooth, stable fluid flow.
Superior Wear & Weather Resistance: Anti-abrasive synthetic rubber cover resists oils, fuels, and harsh atmospheric conditions, ideal for heavy industrial, mining, and offshore environments.
No-Skive Fitting Compatibility: Compatible with no-skive type DPF4T ferrules, simplifying assembly and reducing installation time.
Full International Certification: Approved by multiple global standards, ensuring quality and compliance for worldwide customers.
Wide Temperature Compatibility: Operates reliably from -40°C to +120°C, suitable for extreme cold and high-temperature working conditions.
