4 Layers OEM Hoses ISO 18752 4DC & 6DC Exceed Hydraulic Hose synthetic rubber
Super Impulse R13 Iso 18752 4dc & 6dc Exceed Hydraulic Hose
Hydraulic Hose product introduction

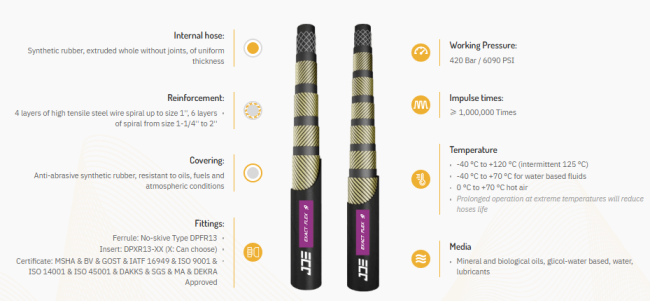

The Super Impulse ISO 18752 4DC & 6DC Exceed R13 Hydraulic Hose is a top-tier ultra-high pressure hydraulic hose from JDE's Exact Flex series, engineered with American technology for extreme heavy-duty industrial applications.It features a seamless extruded synthetic rubber inner tube, 4 layers of high-tensile steel wire spiral (for sizes up to 1") / 6 layers of spiral (for sizes 1-1/4" to 2") reinforcement, and an anti-abrasive synthetic rubber cover. Designed for 1,000,000+ impulse cycles and ultra-high working pressure, it far exceeds the performance of standard SAE 100R13 hoses, delivering industry-leading durability, fatigue resistance, and safety in the most demanding hydraulic systems.
Hydraulic Hose specification
| Part Number | Hose Size | I.D. | R.O.D. | O.D. | Operating Pressure | Burst Pressure | Bend Radius | Weight | Length Per PCS | Ferrule | Steel Wire | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | Dash Size | mm | inch | mm | mm | mm | bar | psi | bar | psi | mm | kgs/m | meter | DMECode | Layer |
| EXA 911114-19 | -12 | 19.0 | 3/4" | 19.0±0.3 | 28.2±0.5 | 29.2±0.5 | 420 | 6090 | 1680 | 24360 | 280 | 1.60 | 40 | DPFR13-12 | 4 |
| EXA 911114-25 | -16 | 25.4 | 1" | 25.4±0.3 | 35.1±0.5 | 36.1±0.5 | 420 | 6090 | 1680 | 24360 | 340 | 2.20 | 40 | DPFR13-16 | 4 |
| EXA 911114-32 | -20 | 31.8 | 1-1/4" | 32.0±0.3 | 45.6-48.0 | 48.3-51.3 | 420 | 6090 | 1680 | 24360 | 460 | 3.28 | 40 | DPFR13-20 | 6 |
| EXA 911115-38 | -24 | 38.1 | 1-1/2" | 38.0±0.3 | 53.1-55.5 | 55.8-58.8 | 420 | 6090 | 1680 | 24360 | 560 | 4.95 | 40 | DPFR13-24 | 6 |
| EXA 911115-51 | -32 | 50.8 | 2" | 51.0±0.3 | 66.9-69.3 | 69.5-72.7 | 420 | 6090 | 1680 | 24360 | 700 | 6.35 | 40 | DPFR13-32 | 6 |
Hydraulic Hose Applications
Ultra-Heavy-Duty Construction Machinery: Large excavators, cranes, loaders, bulldozers, mining excavators and other extreme high-pressure hydraulic systems.
Mining & Underground Equipment: Mining machinery, hydraulic supports, tunnel boring machines, and underground high-pressure fluid transmission systems.
Oil & Gas Industry: Offshore drilling rigs, wellhead control systems, high-pressure oilfield hydraulic equipment, and pipeline transmission.
Industrial Hydraulic Systems: Ultra-high pressure hydraulic power units, heavy-duty presses, forging equipment, and industrial automation systems.
Marine & Offshore Engineering: Ship hydraulic systems, offshore platforms, and marine high-pressure fluid lines.
Heavy-Duty Material Handling: Large forklifts, port cranes, and heavy logistics machinery.
Large-Scale Agricultural Machinery: Heavy-duty tractors, harvesters, and large agricultural hydraulic implements.
