Super Impulse R15 Exceed Hydraulic Rubber Hose ISO 18752 4DC & 6DC
Super Impulse R15 Iso 18752 4dc & 6dc Exceed Hydraulic Hose
Hydraulic Hose product introduction

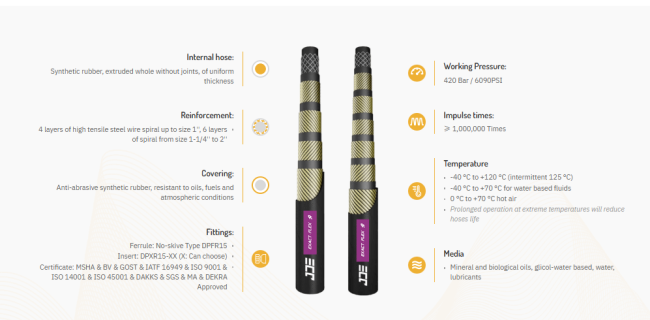

The Super Impulse ISO 18752 4DC & 6DC Exceed R15 Hydraulic Hose is a top-tier ultra-high pressure hydraulic hose from JDE's Exact Flex series, engineered with American technology for extreme heavy-duty industrial applications.
It features a seamless extruded synthetic rubber inner tube, 4 layers of high-tensile steel wire spiral (for sizes up to 1") / 6 layers of spiral (for sizes 1-1/4" to 2") reinforcement, and an anti-abrasive synthetic rubber cover. Designed for 1,000,000+ impulse cycles and ultra-high working pressure, it far exceeds the performance of standard SAE 100R15 hoses, delivering industry-leading durability, fatigue resistance, and safety in the most demanding hydraulic systems.
Hydraulic Hose specification
| Part Number | Hose Size | I.D. | R.O.D. | O.D. | Operating Pressure | Burst Pressure | Bend Radius | Weight | Length Per PCS | Ferrule | Steel Wire | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | Dash Size | mm | inch | mm | mm | mm | bar | psi | bar | psi | mm | kgs/m | meter | DMECode | Layer |
| EXA 911114-19 | -12 | 19.0 | 3/4" | 19.0±0.3 | 28.2±0.5 | 29.2±0.5 | 420 | 6090 | 1680 | 24360 | 280 | 1.60 | 40 | DPFR13-12 | 4 |
| EXA 911114-25 | -16 | 25.4 | 1" | 25.4±0.3 | 35.1±0.5 | 36.1±0.5 | 420 | 6090 | 1680 | 24360 | 340 | 2.20 | 40 | DPFR13-16 | 4 |
| EXA 911114-32 | -20 | 31.8 | 1-1/4" | 32.0±0.3 | 45.6-48.0 | 48.3-51.3 | 420 | 6090 | 1680 | 24360 | 460 | 3.28 | 40 | DPFR13-20 | 6 |
| EXA 911115-38 | -24 | 38.1 | 1-1/2" | 38.0±0.3 | 53.1-55.5 | 55.8-58.8 | 420 | 6090 | 1680 | 24360 | 560 | 4.95 | 40 | DPFR13-24 | 6 |
| EXA 911115-51 | -32 | 50.8 | 2" | 51.0±0.3 | 66.9-69.3 | 69.5-72.7 | 420 | 6090 | 1680 | 24360 | 700 | 6.35 | 40 | DPFR13-32 | 6 |
Hydraulic Hose Advantages
Industry-Leading Impulse Life: Withstands ≥ 1,000,000 impulse cycles, 2–3x the life of standard R15 hoses, delivering ultra-long service life in high-pulsation, heavy-duty systems.
Ultra-High Pressure Rating: Delivers reliable working pressure up to 420 Bar (6090 PSI), far exceeding standard R15 requirements, suitable for extreme heavy-load hydraulic applications.
Multi-Layer Spiral Reinforcement: 4/6 layers of high-tensile steel wire spiral provide exceptional burst strength, fatigue resistance, and stability under extreme pressure, with size-specific reinforcement for optimal performance.
Seamless Inner Tube: Extruded whole without joints, uniform thickness, eliminating leakage risks and ensuring smooth, stable fluid flow.
Superior Wear & Weather Resistance: Anti-abrasive synthetic rubber cover resists oils, fuels, and harsh atmospheric conditions, ideal for heavy industrial, mining, and offshore environments.
No-Skive Fitting Compatibility: Compatible with no-skive type DPFR15 ferrules, simplifying assembly and reducing installation time.
Full International Certification: Approved by MSHA, ISO, IATF and multiple global standards, ensuring quality and compliance for worldwide customers.
Wide Temperature Compatibility: Operates reliably from -40°C to +120°C (intermittent 125°C), suitable for extreme cold and high-temperature working conditions.
