1SN/R1AT Smooth Cover Hydraulic OEM Hoses Single Wire Braided
1SN/R1AT Smooth Cover Hydraulic Hose Single Wire Braided
Hydraulic Hose product introduction

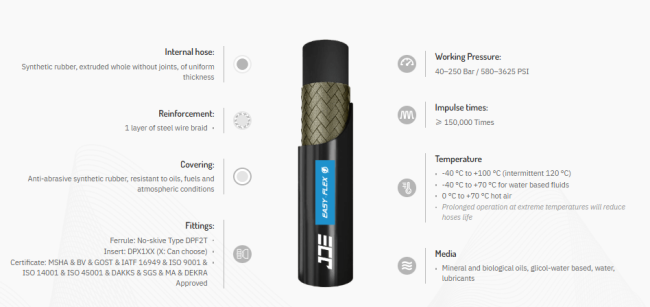

The Smooth Cover 1SN/R1AT Wire Braided Fluid Hose is a high-performance medium-pressure hydraulic hose from JDE's Easy-Flex series, engineered with German technology for general industrial applications.
It features a seamless extruded synthetic rubber inner tube, 1 layer of high-tensile steel wire braid reinforcement, and a smooth, anti-abrasive synthetic rubber cover. Designed for 150,000+ impulse cycles and a working pressure range up to 250 Bar (3625 PSI), this hose balances excellent flexibility and pressure resistance, making it ideal for a wide range of hydraulic systems, and exceeds the performance of standard SAE 100R1AT hoses.
Hydraulic Hose specification
| Part Number | Hose Size | I.D. | R.O.D. | O.D. | Operating Pressure | Burst Pressure | Bend Radius | Weight | Length Per PCS | Ferrule | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | Dash Size | mm | inch | mm | mm | mm | bar | psi | bar | psi | mm | kgs/m | meter | DMECode |
| EAS 221101-05 | -03 | 4.8 | 3/16'' | 4.6-5.4 | 9.0-10.0 | 12.5 MAX. | 250 | 3625 | 1000 | 14500 | 90 | 0.240 | 50/100 | DPF2T-03 |
| EAS 221101-06 | -04 | 6.4 | 1/4'' | 6.2-7.0 | 10.6-11.6 | 14.1 MAX. | 225 | 3262.5 | 900 | 13050 | 100 | 0.255 | 50/100 | DPF2T-04 |
| EAS 221101-08 | -05 | 8.0 | 5/16'' | 7.7-8.5 | 12.1-13.3 | 15.7 MAX. | 215 | 3117.5 | 860 | 12470 | 115 | 0.304 | 50/100 | DPF2T-05 |
| EAS 221101-10 | -06 | 9.5 | 3/8'' | 9.3-10.1 | 14.5-15.7 | 18.1 MAX. | 180 | 2610 | 720 | 10440 | 130 | 0.390 | 50/100 | DPF2T-06 |
| EAS 221101-12 | -08 | 12.7 | 1/2'' | 12.3-13.5 | 17.5-19.1 | 21.4 MAX. | 160 | 2320 | 640 | 9280 | 180 | 0.472 | 50/100 | DPF2T-08 |
| EAS 221101-16 | -10 | 16.0 | 5/8'' | 15.5-16.7 | 20.6-22.2 | 24.5 MAX. | 130 | 1885 | 520 | 7540 | 200 | 0.581 | 50/100 | DPF2T-10 |
| EAS 221101-19 | -12 | 19.0 | 3/4'' | 18.6-19.8 | 24.6-26.2 | 28.5 MAX. | 105 | 1522.5 | 420 | 6090 | 240 | 0.690 | 50/100 | DPF2T-12 |
| EAS 221101-25 | -16 | 25.4 | 1'' | 25.0-26.4 | 32.5-34.1 | 36.6 MAX. | 88 | 1276 | 352 | 5104 | 300 | 0.830 | 50/100 | DPF2T-16 |
Hydraulic Hose Advantages
General Construction Machinery: Excavators, loaders, and compact hydraulic systems on construction sites.
Agricultural Machinery: Tractors, harvesters, and agricultural hydraulic implements.
Industrial Hydraulic Systems: Hydraulic power units, machine tools, presses, and industrial automation equipment.
Material Handling: Forklifts, lift trucks, and warehouse logistics machinery.
Automotive & Light Vehicles: Vehicle hydraulic brake lines, power steering hoses, and light commercial vehicle systems.
Mining & Quarrying: Medium-pressure hydraulic lines on mining machinery and equipment.
Oil & Gas Field: Wellhead control systems and medium-pressure fluid transmission lines.
