6-seat Lithium-powered Open-cabin Golf Cart With All-terrain Performance, A Must-have For Premium Venues.
Price:
Negotiable
MOQ:
1
Delivery Time:
within 30 workdays
Brand:
LAKER AUTO
Product Description

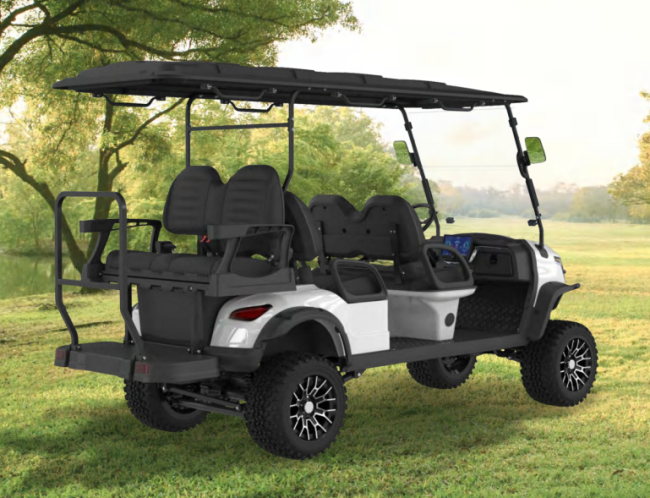

LAKER AUTO D3 Series Golf Cart
High-performance, low-noise and multi-functional, the D3 series is engineered exclusively for premium application scenarios. Its heavy-duty steel frame chassis features dual anti-corrosion treatment via electrophoretic coating and powder spraying. Paired with double-wishbone independent front suspension and trailing-arm independent rear suspension, along with coil springs and hydraulic shock absorbers, it delivers stable handling and superior ride comfort on rough terrain.
The vehicle body is constructed from high-strength composite materials, with the front hood injection-molded from PT+PBT alloy. This design balances lightweight construction with outstanding impact resistance for long-lasting durability.
Multiple powertrain options are available, including lead-acid and lithium-ion batteries to accommodate various range requirements. It achieves a maximum driving range of 85 to 140 kilometers and a top speed of 40 km/h, perfectly suiting daily operations at scenic spots, golf courses, luxury residential compounds and more. Expertly tuned chassis and excellent all-terrain capability bring together reliability and agility for an exceptional driving experience, making it the ideal short-distance transport solution for high-end venues.
The rugged body design features sculpted front contours with robust protective structures and muscular side profiles. The black canopy and seats form a cohesive styling system, while the open cockpit layout offers great practicality and easy maintenance.
Built with impact-resistant high-strength composite body panels, the vehicle handles harsh working conditions with ease. The combination of double-wishbone independent front suspension and trailing-arm independent rear suspension provides precise four-wheel support for smooth travel across uneven terrain.
More Models
| Parameter Item | 4-seat | 4-seat | 6-seat | 6-seat | 8-seat | 8-seat |
|---|---|---|---|---|---|---|
| Passenger Capacity | 4 seats | 4 seats | 6 seats | 6 seats | 8 seats | 8 seats |
| Overall Dimension (L*W*H mm) | 2950*1350*2020 | 2950*1260*1880 | 3740*1350*2060 | 3710*1260*1940 | 4490*1350*2020 | 4460*1260*1880 |
| Max Range | 80km | 80km | 70km | 70km | 70km | 70km |
| Battery Capacity | 7.2kWh | 7.2kWh | 7.2kWh | 7.2kWh | 7.2kWh | 7.2kWh |
| Max Speed | ≤40km/h | ≤25km/h | ≤40km/h | ≤25km/h | ≤32km/h | ≤25km/h |
| Motor Power | 5kW | 5kW | 5kW | 5kW | 5kW | 5kW |
| Braking Distance | ≤4m | ≤4m | ≤4.5m | ≤4.5m | ≤5m | ≤5m |
| Min Turning Radius | ≤3.5m | ≤3.5m | ≤5m | ≤5m | ≤6.5m | ≤6.5m |
| Wheelbase | 1620mm | 1650mm | 2420mm | 2400mm | 3170mm | 3155mm |
| Kerb Weight | 675kg | 668kg | 770kg | 740kg | 821kg | 802kg |
| Min Ground Clearance | 180mm | 110mm | 180mm | 110mm | 180mm | 110mm |
| Climbing Ability | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% |
| Brakes | Hydraulic dual-circuit four-wheel disc brakes with electronic parking | |||||
| Suspensions | Double Swing Arm Independent Front Suspension, Trailing arm independent rear suspension | |||||
FAQ
Q: What are your minimum order quantity and production lead time?
A: We don’t impose a fixed MOQ for our golf carts. For initial trial orders, we suggest purchasing 4–8 units for onsite testing and evaluation. You may place bulk orders afterwards once you’re satisfied with the performance.
Our standard production lead time ranges from 20 to 25 working days, and the exact timeline will vary based on your total order quantity.
Q: What quality control procedures do you implement for every golf cart?
A:Our golf carts feature outstanding performance and long service life. We assign dedicated QC inspectors to monitor every production stage. Once full assembly is completed, each vehicle undergoes comprehensive whole-vehicle inspection in our dedicated testing area.
Our factory is fully equipped with a test track to verify braking performance and suspension systems, alongside a dedicated climbing test platform for gradient capability assessment.
