AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar
Price:
2,000-50,000 USD
MOQ:
1 unit
Delivery Time:
3-30 days
Brand:
AIRERA
Product Description
AGCD Series Oil-Injected Screw Compressor
High Efficiency Features
- Coupling connected air screw compressor with reduced noise and enhanced efficiency
- Optimal balance of quality and pricing in main component selection
- Upgraded air end with SKF 6 bearings for superior performance
- Certified performance with ISO, TUV, GA, and SGS certifications
Economic Advantages
Very Competitive Pricing
Low Capital Cost + Low Operating Cost + Exceptional Reliability & Efficiency = Economical Operation

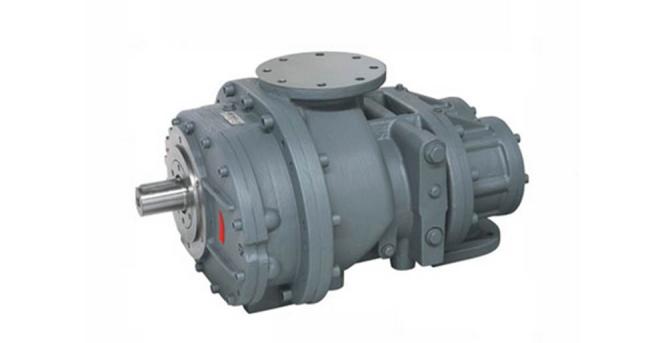

Advanced Screw Rotor Profile Design
The curved face of the rotors engages fully, contributing to hydrodynamic lubrication film formation, reducing lateral leakage contact zones, and improving compressor efficiency while enhancing rotor processing and testing performance.
Utilizing a "bigger rotor, bigger bearing, low-speed" design philosophy, operating speeds are 30-50% lower than competing brands, resulting in reduced noise and vibration, lower compressed air temperatures, improved rotor rigidity, extended service life, and reduced sensitivity to impurities and oil carbonization.
Fully meets or exceeds national standard ISO/GB19153-2003.9001,4001 "air compressors energy efficiency limit" requirements.

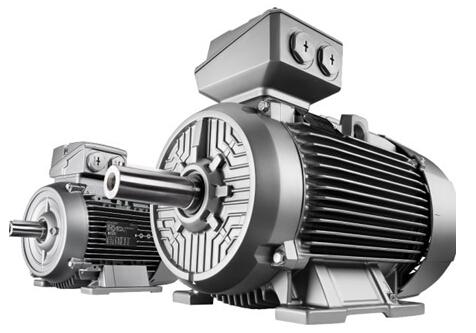

TOP-level electric motor selected
Only electric motors from renowned manufacturers are utilized, featuring an IP55-66 protection rating, TEFC enclosure, SF 1.2 service factor, and IE3–IE6 efficiency classes. As a standard feature, the drive motor is monitored both thermally (via the motor's thermistors) and electronically (via the variable frequency drive's overload protection).
Oil Separation System
Compressors with power ratings up to 250kW are equipped with an external separator that can be replaced via a simple spin-on/spin-off process. Larger units feature an internal separator cartridge. Thanks to the exceptional separation efficiency of the entire system, the compressor is suitable for operation within a pressure range of 5.0 to 20.0 bar. Special pressure ratings are available upon request.
Compressors with power ratings up to 250kW are equipped with an external separator that can be replaced via a simple spin-on/spin-off process. Larger units feature an internal separator cartridge. Thanks to the exceptional separation efficiency of the entire system, the compressor is suitable for operation within a pressure range of 5.0 to 20.0 bar. Special pressure ratings are available upon request.

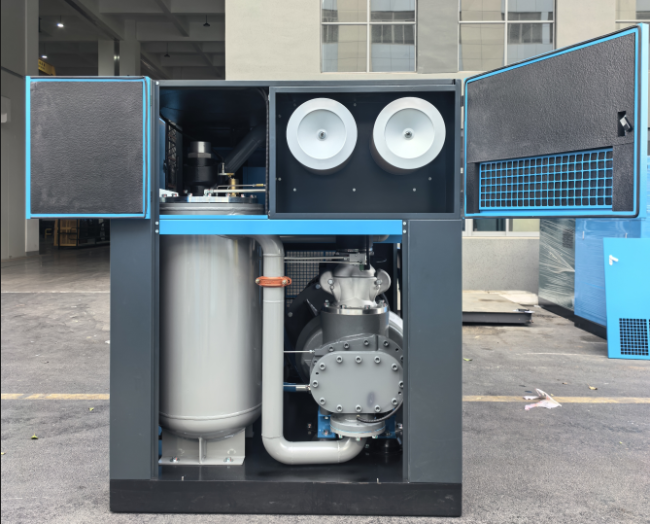

Oil Circuit
The oil volume within the equipment is determined in a manner designed to extend oil change intervals (subject to ambient conditions).
An oil level sensor is integrated as a standard feature and is monitored by the controller. All units in this series are equipped with a horizontal oil separation vessel, in which oil is efficiently separated from the compressed air at low velocities.
The oil volume within the equipment is determined in a manner designed to extend oil change intervals (subject to ambient conditions).
An oil level sensor is integrated as a standard feature and is monitored by the controller. All units in this series are equipped with a horizontal oil separation vessel, in which oil is efficiently separated from the compressed air at low velocities.
Motor Protection Class: IP44
Motor lacks self-cooling capability
Motor has no Service Factor

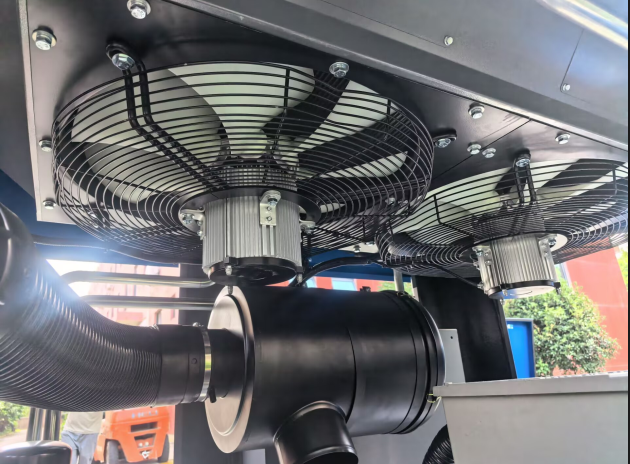

High cooling airflow
High cooling air pressure

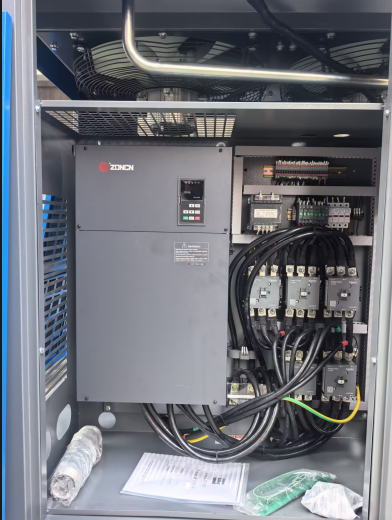

Variable Frequency Drive (Optional)
A Variable Frequency Drive minimizes downtime and optimizes supply to meet fluctuating compressed air demands. It eliminates start-up current spikes and continuously regulates the compressor's output—thereby saving on electricity costs! The total cost of the compressed air supply is significantly reduced, and the initial investment is amortized in the shortest possible time.
A Variable Frequency Drive minimizes downtime and optimizes supply to meet fluctuating compressed air demands. It eliminates start-up current spikes and continuously regulates the compressor's output—thereby saving on electricity costs! The total cost of the compressed air supply is significantly reduced, and the initial investment is amortized in the shortest possible time.

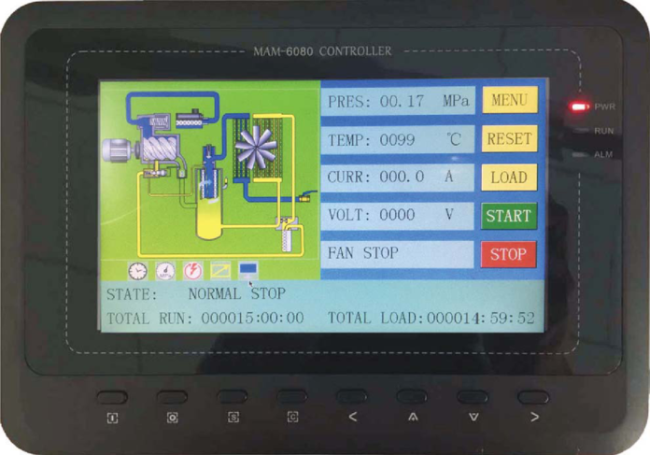

The intelligent controller ensures efficient control and system monitoring
Technical Specifications
| No. | Model | Capacity (m³/min) | Working Pressure (MPa) | Motor Power (kW) | Noise Level dB(A) | Driven Type | Compressed Air Outlet Temperature | Oil Content | Compressed Air Connection | Dimension (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | AGCD-1.20/7 AGCD-1.15/8 AGCD-1.0/10 AGCD-0.75/13 AGCD-0.60/15 |
1.2 1.15 1.0 0.75 0.6 |
0.7 0.8 1.0 1.3 1.5 |
7.5 | 70±3 | Direct | Ambient temperature +10℃ | 1~2ppm | G3/4 | 800*700*930 | 320 |
| 2 | AGCD-1.70/7 AGCD-1.65/8 AGCD-1.50/10 AGCD-1.15/13 AGCD-0.90/15 |
1.7 1.65 1.5 1.15 0.9 |
0.7 0.8 1.0 1.3 1.5 |
11 | 70±3 | Direct | Ambient temperature +10℃ | 1~2ppm | G3/4 | 1080*750*1000 | 340 |
| 3 | AGCD-2.35/7 AGCD-2.30/8 AGCD-2.05/10 AGCD-1.65/13 AGCD-1.20/15 |
2.35 2.3 2.05 1.65 1.2 |
0.7 0.8 1.0 1.3 1.5 |
15 | 70±3 | Direct | Ambient temperature +10℃ | 1~2ppm | G1 | 1080*750*1000 | 360 |
| 4 | AGCD-3.10/7 AGCD-3.00/8 AGCD-2.60/10 AGCD-2.10/13 AGCD-1.80/15 |
3.1 3.0 2.6 2.1 1.8 |
0.7 0.8 1.0 1.3 1.5 |
18.5 | 72±3 | Direct | Ambient temperature +10℃ | 1~2ppm | G1 | 1308*850*1160 | 450 |
| 5 | AGCD-3.65/7 AGCD-3.60/8 AGCD-3.20/10 AGCD-2.75/13 AGCD-2.40/15 |
3.65 3.6 3.2 2.75 2.4 |
0.7 0.8 1.0 1.3 1.5 |
22 | 72±3 | Direct | Ambient temperature +10℃ | 1~2ppm | G1 | 1310*850*1160 | 470 |
| 6 | AGCD-5.20/7 AGCD-5.00/8 AGCD-4.50/10 AGCD-3.70/13 AGCD-3.00/15 |
5.2 5.0 4.5 3.7 3.0 |
0.7 0.8 1.0 1.3 1.5 |
30 | 72±3 | Direct | Ambient temperature +10℃ / Cooling water temperature +10℃ | 1~2ppm | G1-1/2 | 1500*1000*1320 | 780 |
| 7 | AGCD-6.70/7 AGCD-6.60/8 AGCD-5.80/10 AGCD-4.70/13 AGCD-4.10/15 |
6.7 6.6 5.8 4.8 4.1 |
0.7 0.8 1.0 1.3 1.5 |
37 | 72±3 | Direct | Ambient temperature +10℃ / Cooling water temperature +10℃ | 1~2ppm | G1-1/2 | 1500*1000*1320 | 830 |
| 8 | AGCD-7.30/7 AGCD-7.00/8 AGCD-6.50/10 AGCD-5.50/13 AGCD-4.70/15 |
7.7 7.6 7.0 5.8 4.7 |
0.7 0.8 1.0 1.3 1.5 |
45 | 72±3 | Direct | Ambient temperature +10℃ / Cooling water temperature +10℃ | 1~2ppm | G1-1/2 | 1500*1000*1320 | 900 |
| 9 | AGCD-10.80/7 AGCD-10.00/8 AGCD-9.00/10 AGCD-7.80/13 AGCD-6.50/15 |
10.8 10.0 9.0 7.8 6.5 |
0.7 0.8 1.0 1.3 1.5 |
55 | 76±3 | Direct | Ambient temperature +10℃ / Cooling water temperature +10℃ | 1~2ppm | G2 | 1750*1200*1500 | 1180 |
| 10 | AGCD-13.60/7 AGCD-13.00/8 AGCD-11.50/10 AGCD-9.80/13 AGCD-7.60/15 |
13.6 13.0 11.5 9.8 7.6 |
0.7 0.8 1.0 1.3 1.5 |
75 | 76±3 | V belt/Direct | Ambient temperature +10℃ / Cooling water temperature +10℃ | 1~2ppm | G2 | 1750*1200*1500 | 1340 |
| 11 | AGCD-17.00/7 AGCD-15.30/8 AGCD-14.00/10 AGCD-12.00/13 AGCD-10.50/15 |
17.0 15.3 14.0 12.0 10.5 |
0.7 0.8 1.0 1.3 1.5 |
90 | 76±3 | Direct | Ambient temperature +10℃ / Cooling water temperature +10℃ | 1~2ppm | DN80 | 1750*1200*1500 | 1850 |
| 12 | AGCD-21.50/7 AGCD-20.50/8 AGCD-17.50/10 AGCD-14.50/13 AGCD-12.00/15 |
21.5 20.5 17.5 14.5 12.0 |
0.7 0.8 1.0 1.3 1.5 |
110 | 79±3 | Direct | Ambient temperature +10℃ / Cooling water temperature +10℃ | 1~2ppm | DN80 | 2350*1500*1760 | 2200 |
| 13 | AGCD-24.50/7 AGCD-23.50/8 AGCD-21.00/10 AGCD-17.50/13 AGCD-14.50/15 |
24.5 23.5 21.0 17.5 14.5 |
0.7 0.8 1.0 1.3 1.5 |
132 | 79±3 | Direct | Ambient temperature +10℃ / Cooling water temperature +10℃ | 1~2ppm | DN80 | 2350*1500*1760 | 2260 |
| 14 | AGCD-29.20/7 AGCD-28.00/8 AGCD-26.00/10 AGCD-22.00/13 |
29.2 28.0 26.0 22.0 |
0.7 0.8 1.0 1.3 |
160 | 79±3 | Direct | Ambient temperature +10℃ / Cooling water temperature +10℃ | 1~2ppm | DN80 | 2650*1650*1800 | 3300 |
| 15 | AGCD-37.50/7 AGCD-36.00/8 AGCD-33.00/10 AGCD-25.00/13 |
37.5 36.0 33.0 25.0 |
0.7 0.8 1.0 1.3 |
200 | 79±3 | Direct | Ambient temperature +10℃ / Cooling water temperature +10℃ | 1~2ppm | DN100 | 2650*1650*1800 | 3860 |
| 16 | AGCD-46.50/7 AGCD-45.00/8 AGCD-40.00/10 AGCD-36.00/13 |
46.5 45.0 40.0 36.0 |
0.7 0.8 1.0 1.3 |
250 | 79±3 | Direct | Ambient temperature +10℃ / Cooling water temperature +10℃ | 1~2ppm | DN100 | 3000*1950*1850 | 5700 |
| 17 | AGCD-52.00/7 AGCD-49.20/8 AGCD-45.00/10 AGCD-41.30/13 |
52.0 49.2 45.0 41.3 |
0.7 0.8 1.0 1.3 |
280 | 79±3 | Direct | Ambient temperature +10℃ / Cooling water temperature +10℃ | 1~2ppm | DN100 | 3000*1950*1850 | 5900 |
| 18 | AGCD-60.60/7 AGCD-56.50/8 AGCD-50.50/10 AGCD-45.00/13 |
60.6 56.5 50.5 45.0 |
0.7 0.8 1.0 1.3 |
315 | 79±3 | Direct | Ambient temperature +10℃ / Cooling water temperature +10℃ | 1~2ppm | DN100 | 3000*1950*1850 | 6800 |
| 19 | AGCD-71.50/7 AGCD-64.60/8 AGCD-55.50/10 AGCD-46.50/13 |
71.5 64.6 55.5 46.5 |
0.7 0.8 1.0 1.3 |
355 | 79±3 | Direct | Ambient temperature +10℃ / Cooling water temperature +10℃ | 1~2ppm | DN125 | 5000*2050*2200 | 8500 |
| 20 | AGCD-600W AGCD-600W |
86.0 73.5 |
0.8 1.0 |
450 | 79±3 | Direct | Cooling water temperature +10℃ | 1~2ppm | DN150 | 4500*2500*2200 | 12500 |
| 21 | AGCD-670W AGCD-670W |
95.0 82.0 |
0.8 1.0 |
500 | 79±3 | Direct | Cooling water temperature +10℃ | 1~2ppm | DN150 | 4500*2500*2200 | 12900 |
| 22 | AGCD-750W AGCD-750W |
104.0 90.5 |
0.8 1.0 |
560 | 79±3 | Direct | Cooling water temperature +10℃ | 1~2ppm | DN150 | 4500*2500*2200 | 13500 |
Important Notes:
- Parameters and colors are designed according to customer requirements. Specifications are for reference only; final parameters in technical drawings shall prevail.
- Cooling methods (air/water), oil content, weight, and dimensions can be customized according to user requirements and will be finalized in the technical agreement.
- Frequency inverters available as optional equipment.
- 1-year comprehensive warranty with 3-year warranty on air end components.
