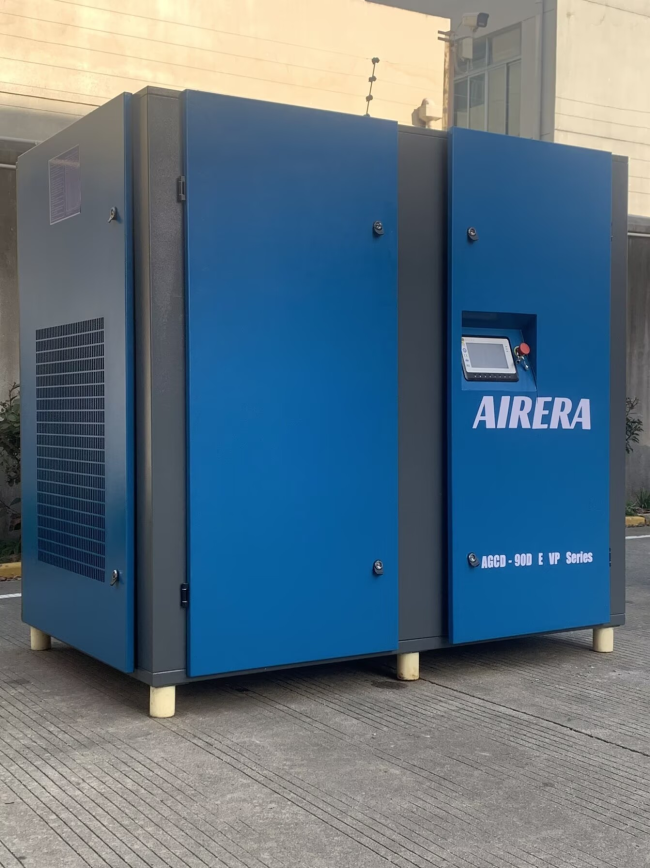

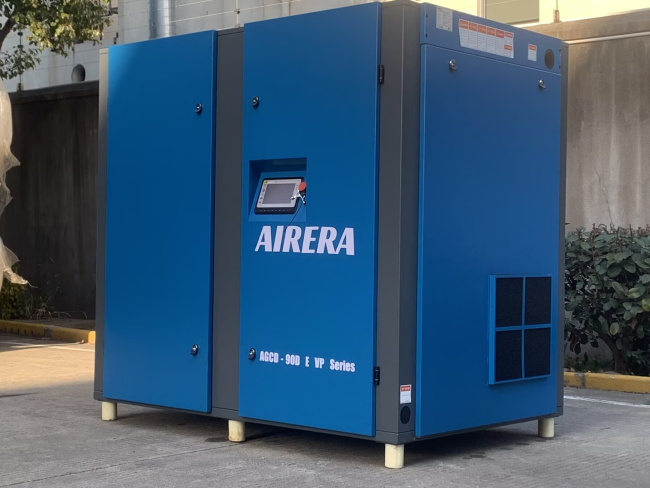

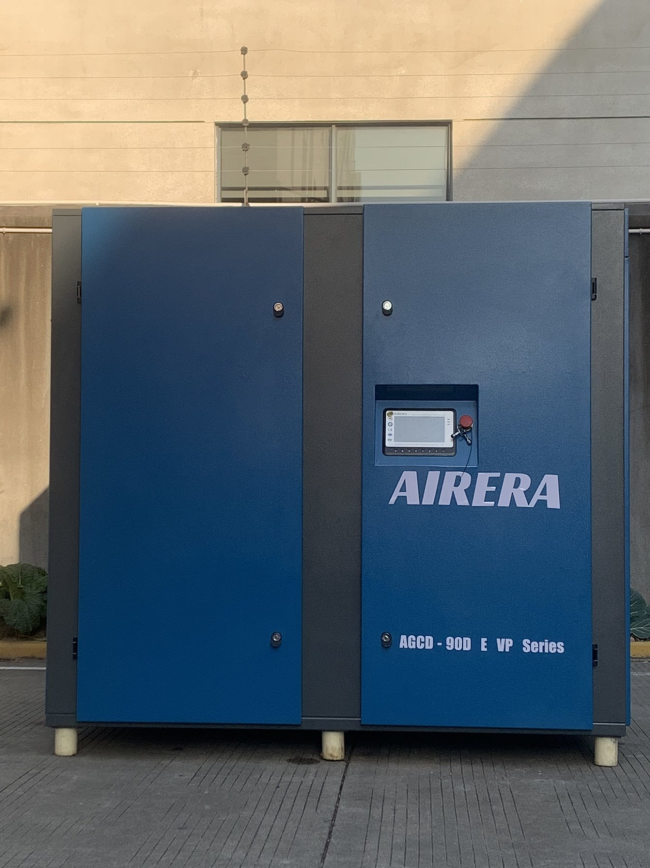

AIRERA AGFD-90D E VP 90kW Industrial Direct Drive Screw Air Compressor for Factory Use
The AIRERA AGFD-90D E is a 90kW industrial screw air compressor designed to provide reliable and continuous compressed air for large scale manufacturing environments.
Equipped with a high efficiency screw airend and direct drive transmission system, the compressor ensures stable air output and improved energy efficiency.
The direct drive design reduces mechanical losses and enhances overall system reliability. This model is suitable for factories and industrial facilities that require consistent compressed air supply for production lines, pneumatic equipment and automation systems. With durable components and optimized cooling structure, the AGFD series is built for long term operation in demanding working conditions.
- High Efficiency Screw Airend Optimized rotor design ensures stable airflow and improved compression efficiency.
- Direct Drive Transmission System Reduces mechanical losses and improves energy efficiency compared with belt driven compressors.
- Stable Continuous Operation Designed for long operating hours in industrial production environments.
- Advanced Cooling Design Efficient cooling structure maintains stable operating temperature and extends machine lifespan.
- Reliable Industrial Components High quality components ensure durability and reduce maintenance requirements.
- Intelligent Control System Digital controller monitors pressure, temperature and system status for easy operation.
| ITEM | UNIT | MODEL | ||||
|---|---|---|---|---|---|---|
| LGFD-90 | ||||||
| Free air delivery | m3/min | 16.50 | 14.30 | 12.0 | 11.0 | |
| Max. working pressure | MPa | 0.8 | 1.0 | 1.3 | 1.5 | |
| Compressor type | Oil inject screw compressor | |||||
| Cooling type | Air cooling | |||||
| Driven type | Belt driven | |||||
| Inlet status | Temperature | ℃ | ≤55 | |||
| Pressure | MPa | Atmospheric pressure | ||||
| Relative humidity | ≤90% | |||||
| Noise Level | dB(A) | ≤79 | ||||
| Residual oil content | ppm | ≤1 | ||||
| Drive rotor speed | rpm | 2750 | 2300 | 2050 | 1750 | |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 | ||||
| Cooling air flow | m3/hr | 12200 | ||||
| Control mode | Intelligent controller | |||||
| Safety valve set pressure | MPa | 0.88 | 1.10 | 1.43 | 1.60 | |
| Lubricating oil volume | L | 70 | ||||
| Lubricating oil brand | ROTORCOMP | |||||
| Compressed air outlet connection | G2 | |||||
| Dimension | L | mm | 1700 | |||
| W | mm | 1200 | ||||
| H | mm | 1700 | ||||
| Net Weight | kg | 1760 | ||||
| Motor | Model | Y280-2 | ||||
| Speed | rpm | 2970 | ||||
| Rated Power | KW | 90 | ||||
| Service factor | 1.2 | |||||
| Protection type | IP55 | |||||
| Efficiency | IE3 | |||||
| Startup mode | ʏ-Δ starting | |||||
| Voltage | V | 380(Special on request) | ||||
| Frequency | Hz | 50(Special on request) | ||||
| Rated current | A | 166 | ||||
| Weight of motor | kg | 566 | ||||
- Manufacturing plants
- Automotive production lines
- Metal processing factories
- Packaging and printing industry
- Textile manufacturing
- Electronics assembly plants
Q1: What is the advantage of direct drive compressors?
Direct drive systems reduce mechanical transmission loss and improve energy efficiency compared with belt driven compressors.
Q2: Is the compressor suitable for continuous industrial operation?
Yes. The AGFD series is designed for stable long term operation in industrial environments.
Q3: Can the working pressure be customized?
Yes. Different pressure configurations can be provided according to customer requirements.
Q4: Does the compressor include an intelligent control system?
Yes. The integrated controller provides real time monitoring and easy operation.
