3Ph 50Hz Industrial Screw Compressor Oil Free 380Vac For Medical Pharmaceutical
Price:
2,000-50,000 USD
MOQ:
1 unit
Delivery Time:
3-30 days
Brand:
AIRERA
Product Description

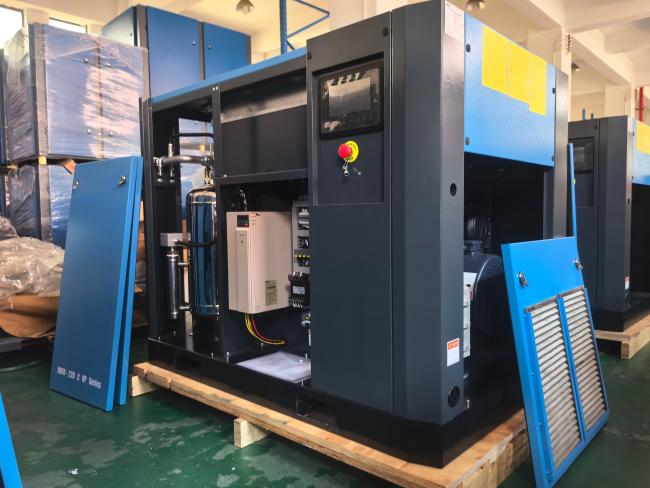

AIRERA OGFD-22D C VP Water-lub Oil-free Screw Compressor
The AIRERA OGFD-22D C VP Oil-Free Variable Speed Screw Air Compressor is designed to provide 100% contamination-free compressed air while maximizing energy efficiency for modern industrial operations. Featuring advanced variable speed drive (VSD) technology, the compressor automatically adjusts motor speed based on real-time air demand. This intelligent operation significantly reduces energy consumption, minimizes pressure fluctuations, and extends equipment lifespan.
Built with durable components and an advanced control system, the OGFD-22D C VP ensures quiet, stable, and continuous performance—making it an ideal solution for industries where air purity and operational reliability are essential. Choose AIRERA for a smarter, cleaner, and more efficient compressed air system.
Key Features & Benefits
- 100% Oil-Free Air: Eliminates contamination risk and helps protect sensitive production processes.
- Variable Speed Drive Technology: Automatically matches air output to demand, reducing energy waste by up to 35%.
- Stable Pressure Control: Minimizes pressure fluctuations to improve production efficiency.
- Intelligent Monitoring System: Provides real-time operational data for easier management and preventive maintenance.
- Low Noise Operation: Optimized internal structure ensures a quieter working environment.
- High Reliability Design: Industrial-grade components support long service life and continuous operation.
Why Choose Our Oil-Free Screw Compressors?
- Advanced energy-saving technology
- Guaranteed clean air quality
- Stable and intelligent performance
- Reduced operational costs
- Trusted by global industries
22KW Air Cooling Compressor Technical Specifications
| ITEM | UNIT | MODEL OGFD-22 |
|---|---|---|
| Free air delivery | m³/min | 3.7 | 3.4 | 3.0 |
| Max. working pressure | MPa | 0.7 | 0.8 | 1.0 |
| Compressor type | Oil free screw compressor | |
| Cooling type | Air cooling | |
| Driven type | Direct driven | |
| Noise Level | dB(A) | ≤61 |
| Inlet Temp. | ℃ | 2-40 |
| Drive rotor speed | rpm | 2980 |
| Compressed air outlet temperature | ℃ | Ambient temperature＋20 |
| Control mode | Intelligent controller | |
| Lubricating water volume | L | 27 |
| Oil content | 0 | |
| Dimension (L x W x H) | mm | 1400 x 1000 x 1200 |
| Net Weight | kg | 770 |
| Motor Rated Power | KW | 22 |
| Voltage | V | 380 (Special on request) |
| Frequency | Hz | 50 (Special on request) |
Frequently Asked Questions
Why choose a variable speed oil-free compressor?
VSD technology adjusts power consumption based on air demand, significantly lowering energy costs while maintaining stable pressure.
Is this compressor truly oil-free?
Yes. It delivers certified oil-free air that meets strict international purity standards.
How much energy can be saved with VSD?
Energy savings can reach up to 30-35%, especially in operations with fluctuating air demand.
Can it operate continuously?
Absolutely. The OGFD-22D C VP is engineered for reliable 24/7 industrial use.
Do you support customized configurations?
Yes. AIRERA supports multiple voltages, pressure ranges, and tailored solutions for global customers.
Pure Air. Smart Energy. Reliable Performance.
