10HP Small Refrigerated Air Dryer Refrigerant Type 1.0-500m3/Min
Price:
520-20,000 USD
MOQ:
1 unit
Delivery Time:
3-30 days
Brand:
AIRERA
Product Description

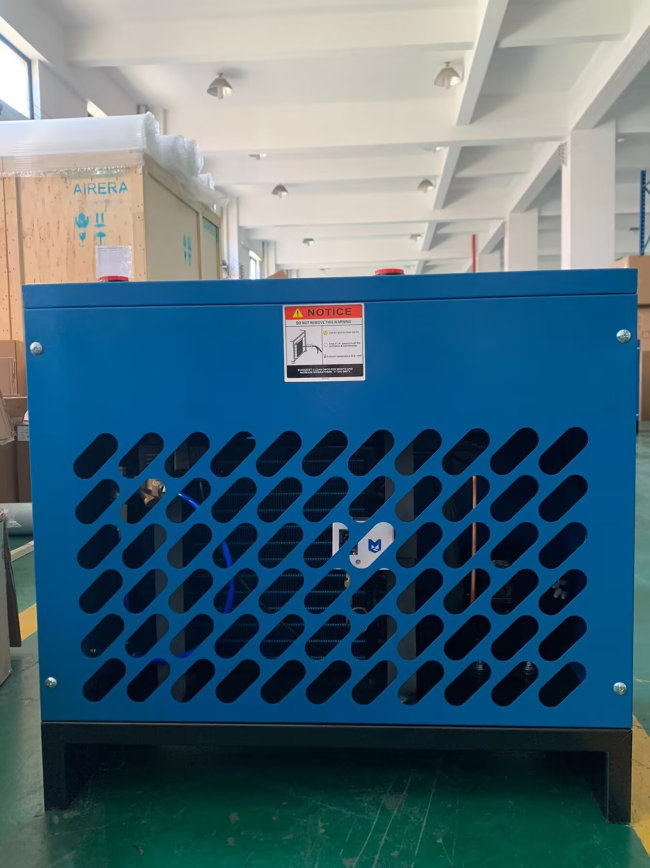

AIRERA HDR-10HP Refrigerated Air Dryer
High Efficiency Compressed Air Drying Solution engineered to deliver clean, dry compressed air by efficiently removing moisture from pneumatic systems. Designed for reliability and energy efficiency, it protects downstream equipment from corrosion, contamination, and unexpected downtime.
Product Overview
With stable pressure dew point and advanced heat exchange technology, the HDR series ensures consistent drying performance even under demanding operating conditions. The compact structure allows for easy installation while maintaining powerful drying capacity. Ideal for manufacturing, automotive workshops, electronics production, and general industrial applications.
Key Features
- Stable Dew Point Performance: Maintains pressure dew point between 2-10°C, effectively preventing condensation and moisture-related damage
- Energy-Efficient Operation: Optimized refrigeration system reduces power consumption while ensuring continuous drying performance
- High-Efficiency Heat Exchanger: Advanced aluminum alloy heat exchanger improves thermal transfer and enhances overall system efficiency
- Intelligent User-Friendly Design: Simple controls and low-maintenance components reduce operational complexity
- Compact Footprint: Space-saving design enables quick integration into existing compressed air systems
- Reliable Industrial Construction: Built with durable components to ensure long service life in demanding environments
Technical Specifications
| ITEM | UNIT | MODEL HDR-010HP |
|---|---|---|
| Volume flow | Nm³/min | 1.5 |
| Permissible operating pressure, maximum | Mpa | 1.05 |
| Pressure dew point | °C | 2-10 |
| Permissible compressed air temperature (min...max) | °C | 2-80 |
| Environment status - Temperature | ℃ | ≤45 |
| Environment status - Relative humidity | ≤90% | |
| Cooling type | Air cooling | |
| Control mode | Intelligent controller | |
| Refrigerants (Special on request) | R134A | |
| Pressure drop | Mpa | 0.02 |
| Refrigeration compressor power | HP | 0.75 |
| Rated fan power | Kw | 0.09 |
| Power supply - Voltage (Special on request) | V | 220 |
| Power supply - Phase | 1 | |
| Power supply - Frequency (Special on request) | Hz | 50 |
| Drain type | Electrical | |
| Section of electrical cable | mm² | 3 * 2.5 |
| Recommended HRC fuse | A | 16 |
| Recommended Air breaker | A | 25 |
| Sound level | dB(A) | ≤60 |
| Compressed air inlet & outlet connection | RP1 | |
| Dimension (L*W*H) | mm | 730*400*740 |
| Net Weight | kg | 50 |
Applications
- Manufacturing
- Automotive Industry
- Food & Beverage
- Textile Production
- Electronics
- General Industrial Facilities
Frequently Asked Questions
Why is a refrigerated air dryer important?
Moisture in compressed air can cause corrosion, damage pneumatic tools, and reduce product quality. A refrigerated dryer ensures clean and dry air for stable operations.
What dew point does the HDR-10HP provide?
It maintains a pressure dew point of 2-10°C, suitable for most industrial applications.
Is the dryer energy efficient?
Yes. The optimized refrigeration circuit minimizes energy consumption while maintaining consistent drying performance.
Can AIRERA customize voltage?
Absolutely. Voltage and frequency can be customized to meet regional electrical standards.
Is installation complicated?
Not at all. The compact design allows quick integration into existing compressed air systems.
