220V-440V 3-5bar Low Pressure Screw Air Compressor 30kW Direct Drive Screw Compressor
Price:
520-30,000 USD
MOQ:
1 unit
Delivery Time:
3-30 days
Brand:
AIRERA
Product Description
Product Overview

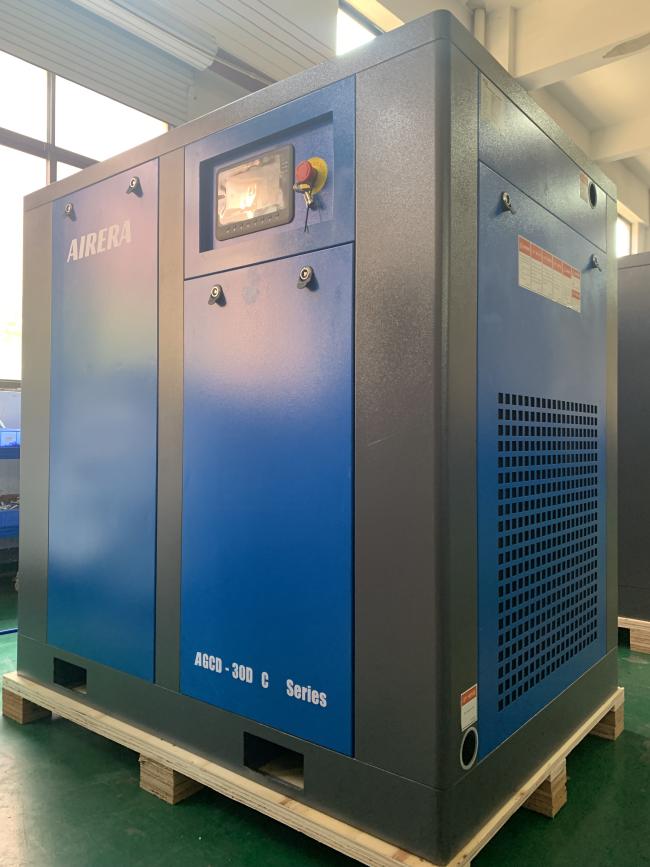

The AIRERA AGCD-30D C is a 30kW industrial screw air compressor engineered for consistent and reliable compressed air production in factory environments. Built with a high-efficiency direct drive system, this model delivers stable pressure output, reduced transmission loss, and improved mechanical durability. It is ideal for manufacturing facilities requiring continuous compressed air supply. The fixed-speed configuration ensures dependable performance under steady load conditions, making it a cost-effective solution for many industrial applications.
Key Features
-
High-Efficiency Direct Drive SystemMinimizes power transmission loss and improves mechanical reliability.
-
Premium Airend DesignOptimized rotor structure enhances compression efficiency and extends service life.
-
Stable Pressure OutputDesigned for consistent air demand environments.
-
Intelligent Control PanelProvides real-time operating data, safety protection, and maintenance reminders.
-
Durable Cooling SystemHigh-performance air cooling ensures stable operation even under heavy load.
-
Compact Industrial StructureSpace-saving design suitable for workshops and production plants.
Technical Specifications
Technical Data of AIRERA low pressure Dual Stage Screw Air Compressor
| ITEM | UNIT | MODEL AGCD-30/4.0-C-G | MODEL AGCD-30/5.0-C-G |
|---|---|---|---|
| Capacity (f.a.d.) at gauged pressure | m³/min | 6.98 | 6.94 |
| Max. working pressure | MPa | 0.4 | 0.5 |
| Compressor type | Two stage oil inject screw compressor | ||
| Cooling type | Air cooling | ||
| Driven type | Direct driven | ||
| Inlet status - Temperature | ℃ | ≤45 | |
| Inlet status - Pressure | MPa | Atmospheric pressure | |
| Inlet status - Relative humidity | ≤90% | ||
| Cooling air flow | m³/hr | 9200 | |
| Control mode | Intelligent controller | ||
| Safety valve set pressure | MPa | 0.44 | 0.55 |
| Lubricating oil volume | L | 24 | |
| Lubricating oil brand | ROTORCOMP | ||
| Compressed air discharge temperature | ℃ | Ambient temperature＋10 | |
| Residual oil content | ppm | ≤3 | |
| Drive rotor speed | rpm | 2940 | |
| Main Motor - Rated Power | KW | 30 | |
| Main Motor - Type | Fix speed | ||
| Main Motor - Speed | rpm | 2940 | |
| Main Motor - Service factor | 1.2 | ||
| Main Motor - Protection type | IP55 | ||
| Main Motor - Insulation class | ISO | F | |
| Main Motor - Efficiency | IE3 | ||
| Main Motor - Startup mode | ʏ-Δ starting | ||
| Main Motor - Voltage | V | 380 | |
| Main Motor - Frequency | Hz | 50 | |
| Main Motor - Rated current | A | 54.89 | |
| Fan Motor - Rated Power | KW | 0.55 | |
| Fan Motor - Type | Fix speed | ||
| Fan Motor - Speed | rpm | 1480 | |
| Fan Motor - Protection type | IP55 | ||
| Fan Motor - Insulation class | ISO | F | |
| Fan Motor - Startup mode | Direct starting | ||
| Fan Motor - Voltage | V | 380 | |
| Fan Motor - Frequency | Hz | 50 | |
| Section of electrical cable | mm² | 4 * 25 | |
| Recommended HRC fuse | A | 80 | |
| Recommended Air breaker | A | 125 | |
| Sound level | dB(A) | ≤70 | |
| Compressed air outlet connection | DN50 | ||
| Dimension (L*W*H) | mm | 2000*1450*1650 | |
| Net Weight | kg | 2100 | |
1 acc. to ISO 1217 Annex C
2 acc. to DIN EN ISO 2151:2009
We reserve our right to change this spec without notice
2 acc. to DIN EN ISO 2151:2009
We reserve our right to change this spec without notice
Applications
- Automotive workshops
- Metal fabrication
- Wood processing factories
- Packaging production lines
- General manufacturing plants
This model is especially suitable for facilities with stable air consumption and long operating hours.
Frequently Asked Questions
What is the difference between fixed speed and variable speed?
Fixed-speed compressors operate at constant motor speed and are ideal for stable air demand environments.
Is direct drive better than belt drive?
Yes. Direct drive reduces transmission loss and improves long-term durability.
Can it operate 24 hours continuously?
Yes, it is designed for continuous industrial use.
Is this model cost-effective?
Yes. It offers a lower initial investment compared to variable speed models.
