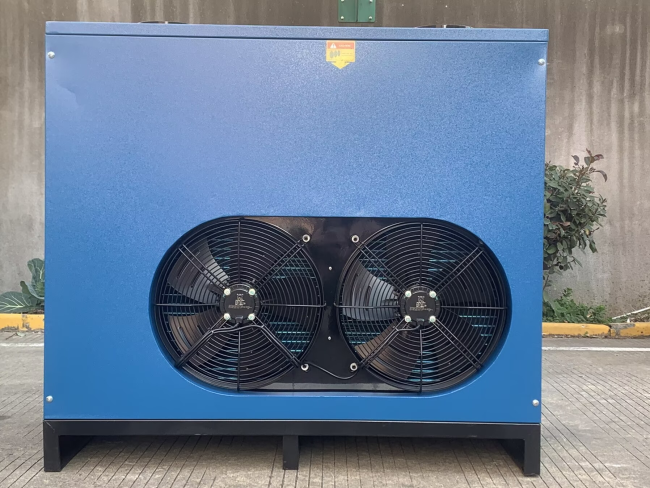

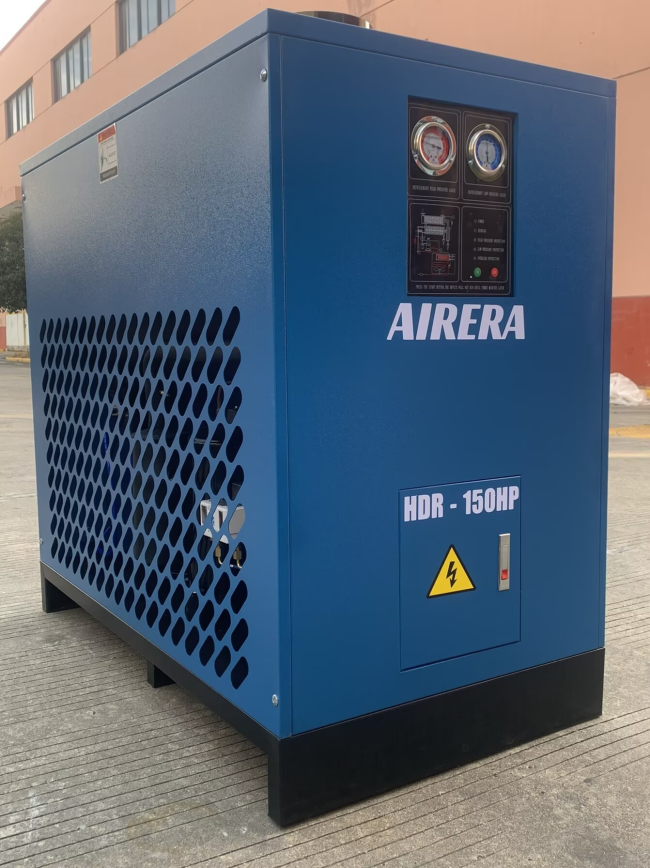

AIRERA HDR-150HP Industrial Refrigerated Air Dryer for Screw Air Compressor System
Product Description
The AIRERA HDR-150HP Refrigerated Air Dryer is designed to remove moisture from compressed air systems in industrial environments.
By reducing pressure dew point and eliminating condensate, this dryer protects downstream equipment such as air tools, pneumatic machinery, filters and pipelines.
It is ideal for use with 150HP screw air compressors and large capacity compressed air systems requiring stable and continuous dry air supply.
The unit features an energy efficient refrigeration system and stable heat exchange structure to ensure reliable long term operation.
Features
Efficient Moisture Removal
Reduces compressed air dew point to ensure dry and clean air output.
High Capacity Performance
Designed to match 150HP air compressor systems.
Stable Refrigeration System
Ensures consistent drying performance under continuous load.
High Efficiency Heat Exchanger
Improves cooling efficiency and enhances water separation.
Automatic Condensate Drain
Removes collected water without manual intervention.
Compact Industrial Design
Easy installation in compressor rooms and industrial facilities.
Technical Parameters
| Technical Data of Bestcomp HDR series high temperature refrigeration air dryer | |||
| ITEM | UNIT | MODEL | |
| HDR-150HP | |||
| ¹ Volume flow | Nm3/min | 25.0 | |
| Permissible operating pressure, maximum | Mpa | 1.05 | |
| Pressure dew point | °C | 2-10 | |
| Permissible compressed air temperature (min...max) | °C | 2-80 | |
| Environment status | Temperature | ℃ | ≤45 |
| Relative humidity | ≤90% | ||
| Cooling type | Air cooling | ||
| Cooling water requirment | m3/hr | / | |
| Cooling water pressure | Mpa | / | |
| Control mode | Intelligent controller | ||
| Refrigerants(Special on request) | R22/R407C/R410A | ||
| Pressure drop | Mpa | 0.02 | |
| Refrigeration compressor power | HP | 5.0 | |
| Rated fan power | Kw | 4×0.15 | |
| Power supply | Voltage(Special on request) | V | 380 |
| Phase | 3 | ||
| Frequency(Special on request) | Hz | 50 | |
| Drain type | Electrical | ||
| Section of electr. cable | mm² | 4 × 4 | |
| Recom. HRC fuse | A | 25 | |
| Recom. Air breaker | A | 35 | |
| ² Sound level | dB(A) | ≤60 | |
| Compressed air inlet&outlet connection | DN80 | ||
| Dimension | L×W×H | mm | 1420×790×1370 |
| Net Weight | kg | 300 | |
| ¹ Volume flow measured at 20 °C, 1 bar, operational pressure 7 bar and a pressure dew point of 2-10 °C ² acc. to DIN EN ISO 2151:2009 We reserve our right to change this spec without notice | |||
Applications
Manufacturing plants
Automotive production
Textile industry
Food processing
Metal processing
General industrial compressed air systems
FAQ
Q1: Why is a refrigerated air dryer necessary?
Compressed air contains moisture that can damage equipment. A refrigerated dryer removes water vapor and protects the air system.
Q2: What dew point can this model achieve?
Typically between 2°C and 10°C under standard working conditions.
Q3: Can it be used with other compressor brands?
Yes. It can be connected to any compatible compressed air system with matching capacity.
Q4: Is installation complicated?
No. It is designed for easy integration into existing air compressor systems.
