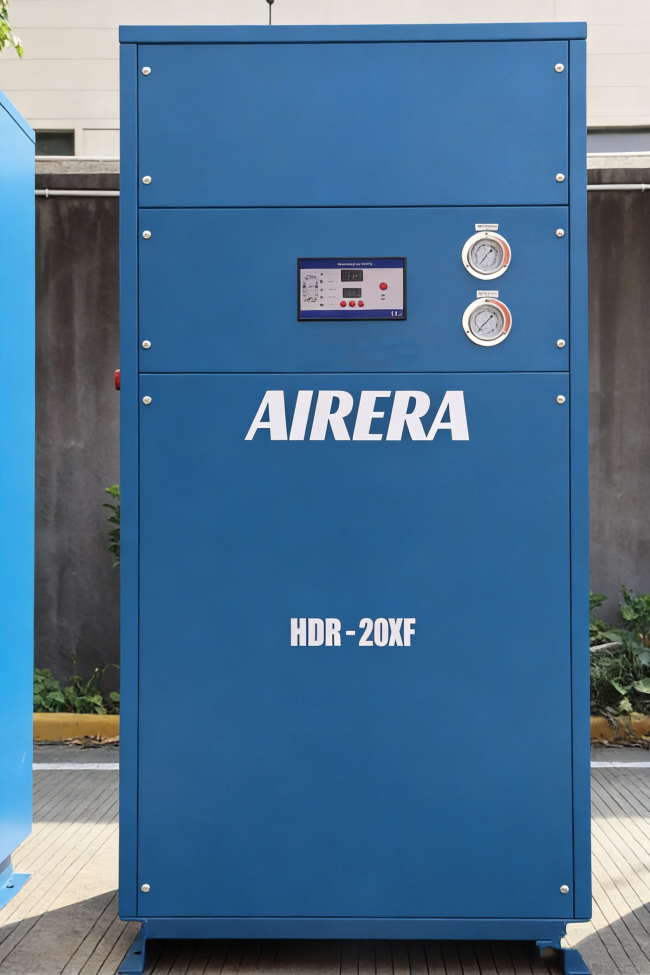

AIRERA HDR-20XF Refrigerated Air Dryer Industrial Compressed Air Dryer
PRODUCT OVERVIEW
The AIRERA HDR-20XF Refrigerated Air Dryer is engineered to deliver clean, dry compressed air for industrial applications. By cooling compressed air and condensing moisture, the dryer effectively removes water vapor that can cause corrosion, pipeline damage, and product contamination. With stable refrigeration technology and an optimized heat exchanger design, the HDR-20XF ensures consistent performance, low pressure drop, and energy-efficient operation.
It is suitable for manufacturing plants, automotive workshops, machinery production lines, and other compressed air systems requiring reliable air treatment. This model is designed for durability and ease of operation, featuring high-quality components and intelligent system protection to ensure long-term stable operation.
KEY FEATURES
High Efficiency Moisture Removal
Advanced refrigeration technology efficiently condenses and separates moisture from compressed air, delivering dry and clean air to downstream equipment.
Stable Dew Point Performance
Maintains a consistent pressure dew point to prevent moisture accumulation in pipelines and pneumatic systems.
Energy Efficient Operation
Optimized refrigeration components and heat exchange system help reduce energy consumption while maintaining reliable drying performance.
Compact and Durable Structure
Compact design allows easy installation in various compressed air systems while maintaining strong structural durability.
Low Pressure Drop Design
Optimized internal airflow path minimizes pressure loss and improves overall system efficiency.
Reliable Industrial Components
Equipped with high-quality compressors, heat exchangers, and control systems to ensure long service life and stable performance.
TECHNICAL PARAMETERS
| Model | HDR-20XF |
|---|---|
| Air Flow Capacity | 2.6 m³/min |
| Power Supply | 220V / 50Hz |
| Refrigeration Power | 0.62 kW |
| Air Inlet Temperature | ≤45°C |
| Pressure Dew Point | 2–10°C |
| Working Pressure | 0.6–1.0 MPa |
| Cooling Method | Air Cooling |
| Inlet / Outlet Connection | G1 |
| Weight | 45 kg |
| Dimensions (L × W × H) | 650 × 400 × 750 mm |
APPLICATION INDUSTRIES
The HDR-20XF refrigerated air dryer is widely used in industries that require clean and dry compressed air.
Manufacturing and production lines
Automotive repair and assembly
Machinery processing plants
Packaging and food processing facilities
Textile and printing industries
Electronics manufacturing
WHY COMPRESSED AIR DRYING IS IMPORTANT
Compressed air naturally contains moisture. When compressed air cools, the moisture condenses into water droplets that can damage pipelines, pneumatic tools, valves, and production equipment.
Using a refrigerated air dryer like the AIRERA HDR-20XF helps remove moisture before it enters the air system, protecting equipment, improving product quality, and extending system lifespan.
FAQ
What is the function of a refrigerated air dryer?
A refrigerated air dryer removes moisture from compressed air by cooling the air and condensing water vapor, ensuring clean and dry air for industrial applications.
What pressure dew point does this dryer provide?
The HDR-20XF typically provides a pressure dew point between 2°C and 10°C under standard operating conditions.
Can the dryer operate continuously in industrial environments?
Yes. The HDR-20XF is designed for continuous industrial operation with stable refrigeration components and protective control systems.
Is the dryer easy to install?
Yes. The compact design and standard inlet and outlet connections make installation simple in most compressed air systems.
