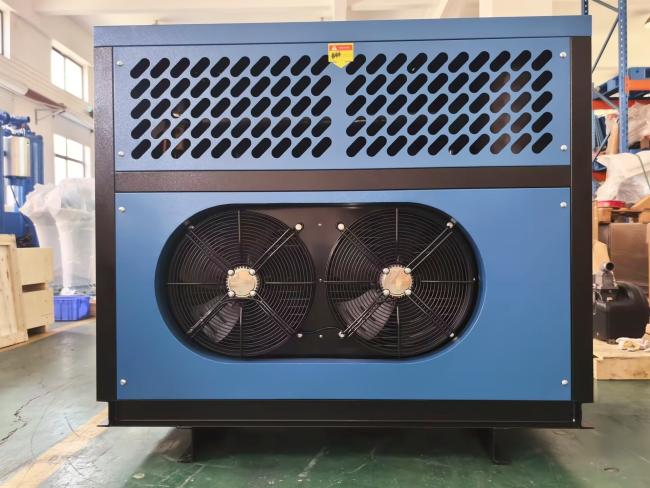

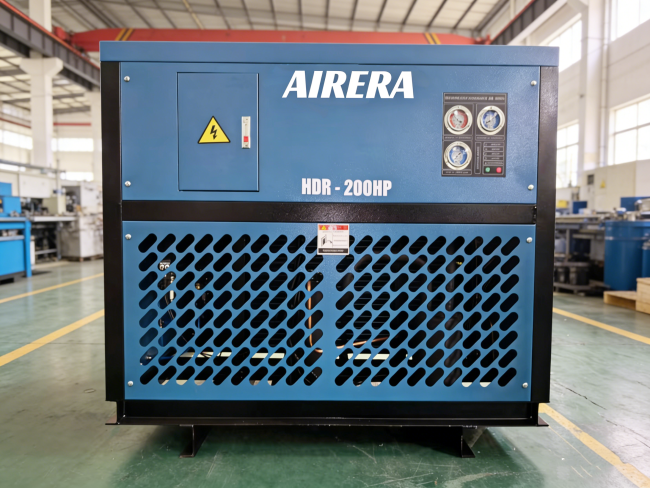

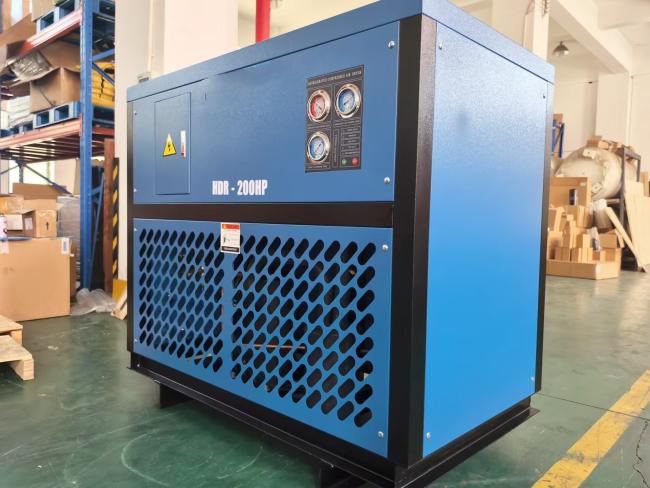

AIRERA HDR-200HP Refrigerated Air Dryer Industrial Compressed Air Dryer
PRODUCT OVERVIEW
The AIRERA HDR-200HP Refrigerated Air Dryer is engineered to deliver reliable and efficient moisture removal for large-scale compressed air systems. Using an advanced refrigeration cycle, the dryer cools compressed air to condense water vapor, which is then separated and discharged from the system.
Moisture in compressed air can lead to corrosion in pipelines, malfunction of pneumatic tools, and reduced production efficiency. The HDR-200HP effectively eliminates these risks by maintaining a consistent pressure dew point and delivering dry compressed air throughout the system.
With its high-efficiency heat exchanger, stable refrigeration compressor, and optimized airflow structure, the HDR-200HP ensures low pressure drop, energy-efficient operation, and continuous performance in demanding industrial environments. It is widely used in manufacturing plants
KEY FEATURES
High Capacity Air Drying Performance
Designed to handle large compressed air flow systems and maintain consistent drying performance.
Stable Pressure Dew Point Control
Ensures compressed air remains dry and prevents condensation in pipelines and pneumatic equipment.
Energy Efficient Refrigeration System
High-performance refrigeration components reduce energy consumption while maintaining efficient moisture removal.
Low Pressure Drop Design
Optimized internal structure minimizes pressure loss and improves overall compressed air system efficiency.
Durable Industrial Structure
Manufactured with reliable components and corrosion-resistant materials to ensure long-term durability.
Simple Operation and Maintenance
User-friendly design simplifies installation, operation, and routine maintenance.
TECHNICAL PARAMETERS
| Model | HDR-200HP |
|---|---|
| Air Flow Capacity | 27.0 m³/min |
| Power Supply | 380V / 50Hz |
| Refrigeration Power | 4.5 kW |
| Air Inlet Temperature | ≤45°C |
| Pressure Dew Point | 2–10°C |
| Working Pressure | 0.6–1.0 MPa |
| Cooling Method | Air Cooling |
| Inlet / Outlet Connection | DN65 |
| Weight | 220 kg |
| Dimensions (L × W × H) | 1100 × 650 × 1150 mm |
WHY COMPRESSED AIR DRYING IS IMPORTANT
Compressed air contains moisture that forms during the compression process. Without proper drying, this moisture can accumulate in pipelines, damage pneumatic equipment, and reduce system efficiency.
Installing a refrigerated air dryer such as the AIRERA HDR-200HP ensures stable dry air supply, protects production equipment, and improves the reliability and lifespan of compressed air systems.
FAQ
What is the function of a refrigerated air dryer?
A refrigerated air dryer removes moisture from compressed air by cooling it, condensing water vapor, and separating the condensed water from the air stream.
What dew point does the HDR-200HP provide?
Under normal operating conditions, the dryer maintains a pressure dew point between 2°C and 10°C.
Is the HDR-200HP suitable for large industrial air systems?
Yes. The HDR-200HP is designed for large airflow applications and can support high-demand industrial compressed air systems.
Can the dryer operate continuously in industrial environments?
Yes. The unit is built with durable refrigeration components and industrial-grade materials to ensure stable long-term operation.
