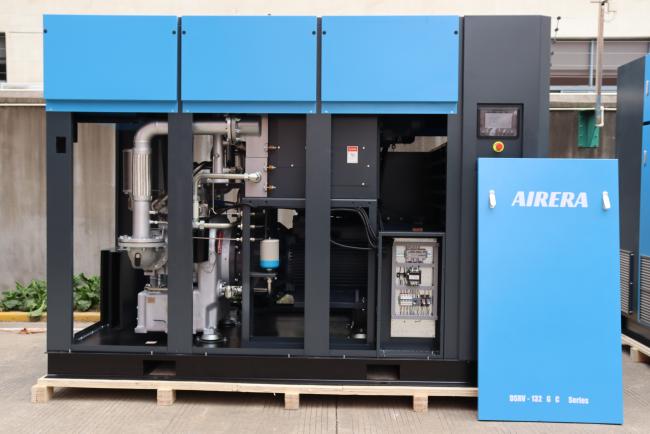

AIRERA DSRV-132G C 132kW Permanent Magnet Variable Speed Screw Air Compressor
The AIRERA DSRV-132G C is a high efficiency permanent magnet variable speed screw air compressor designed for large scale industrial compressed air systems. Equipped with advanced permanent magnet motor technology and intelligent inverter control, the compressor automatically adjusts motor speed according to actual air demand. This ensures optimal energy consumption and stable air supply.
Compared with traditional fixed speed compressors, the DSRV series significantly reduces energy consumption while maintaining reliable and continuous performance. It is widely used in manufacturing plants, metal processing facilities, and other industrial operations requiring high air capacity.
Permanent Magnet Motor Technology
High efficiency permanent magnet motor provides strong power output with reduced energy loss.
Variable Speed Control System
Automatically adjusts motor speed according to air demand, improving overall system efficiency.
Energy Saving Operation
Compared with traditional compressors, energy consumption can be reduced significantly during partial load conditions.
Stable Air Pressure Output
Ensures continuous and stable compressed air supply for sensitive industrial processes.
Advanced Cooling System
Optimized cooling design improves machine reliability and extends service life.
Intelligent Control Panel
Digital monitoring system displays operating parameters and system status in real time.
132KW air cooling compressor parameters
| ITEM | UNIT | MODEL | ||||
|---|---|---|---|---|---|---|
| DSRV-132 | ||||||
| Free air delivery | m3/min | 14.70-24.80 | 13.60-23.00 | 11.50-19.50 | ||
| Max. working pressure | MPa | 0.7 | 0.8 | 1.0 | ||
| Compressor type | Oil free screw compressor | |||||
| Cooling type | Air cooling | |||||
| Driven type | Direct driven | |||||
| Inlet status | Temperature | ℃ | ≤46 | |||
| Pressure | MPa | Atmospheric pressure | ||||
| Relative humidity | ≤80% | |||||
| Noise Level | dB(A) | ≤79 | ||||
| Residual oil content | ppm | 0 | ||||
| Drive rotor speed | rpm | 3000 | ||||
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 | ||||
| Cooling air flow | m3/hr | 14200 | ||||
| Control mode | Intelligent controller | |||||
| Safety valve set pressure | MPa | 0.77 | 0.88 | 1.10 | ||
| No. of compression stage | L | 2 | ||||
| Power supply | 380V/3/50Hz | |||||
| Compressed air outlet connection | DN65 | |||||
| Dimension | L | mm | 3000 | |||
| W | mm | 1990 | ||||
| H | mm | 2180 | ||||
| Net Weight | kg | 3450 | ||||
| Motor | Model | YPM280M2-2 | ||||
| Speed | rpm | 3000 | ||||
| Rated Power | KW | 132 | ||||
| Service factor | 1.2 | |||||
| Protection type | IP55 | |||||
| Efficiency | IE3 | |||||
| Startup mode | Frequency starting | |||||
| Voltage | V | 380(Special on request) | ||||
| Frequency | Hz | 50(Special on request) | ||||
| Rated current | A | 242 | ||||
| Weight of motor | kg | 1010 | ||||
Q1: What is the advantage of a permanent magnet variable speed compressor?
Permanent magnet motors combined with inverter control provide higher efficiency and significant energy savings compared with conventional compressors.
Q2: Is this model suitable for continuous industrial operation?
Yes. The compressor is designed for long term continuous operation in demanding industrial environments.
Q3: How much energy can be saved compared with fixed speed compressors?
Energy savings vary depending on air demand conditions but can be substantial in systems with fluctuating air consumption.
Q4: Can voltage and configuration be customized?
Yes. Electrical specifications and configurations can be customized according to project requirements.
