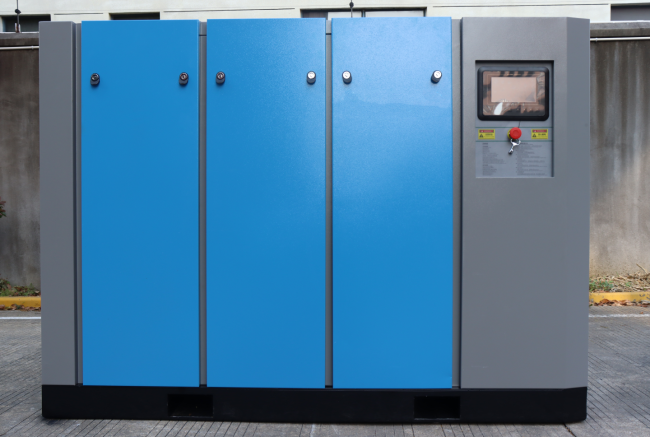

AIRERA OGFD-55D C 55kW Industrial Rotary Screw Air Compressor
The AIRERA OGFD-55D C is a 55kW industrial rotary screw air compressor designed for heavy duty applications that require reliable compressed air supply for continuous operation.
Featuring a direct drive system and high efficiency screw airend, this compressor delivers stable air flow with low energy consumption. Its robust construction ensures long service life even under the most demanding operating conditions.
Designed for 24/7 operation in industrial environments, the OGFD-55D C combines rugged reliability with easy maintenance, making it an ideal choice for large manufacturing plants, metal processing facilities, and other heavy industrial operations.
| ITEM | UNIT | MODEL | ||||
| OGFD-55 | ||||||
| Free air delivery | m3/min | 10.0 | 9.0 | 7.8 | ||
| Max. working pressure | MPa | 0.7 | 0.8 | 1.0 | ||
| Compressor type | Oil free screw compressor | |||||
| Cooling type | Air cooling | |||||
| Driven type | Direct driven | |||||
| Inlet status | Temperature | ℃ | ≤45 | |||
| Pressure | MPa | Atmospheric pressure | ||||
| Relative humidity | ≤90% | |||||
| Noise Level | dB(A) | ≤71 | ||||
| Inlet Temp. | ℃ | 2-40 | ||||
| Drive rotor speed | rpm | 2990 | ||||
| Compressed air outlet temperature | ℃ | Ambient temperature＋20 | ||||
| Cooling air flow | m3/hr | 10000 | ||||
| Control mode | Intelligent controller | |||||
| Safety valve set pressure | MPa | 0.77 | 0.88 | 1.10 | ||
| Lubricating water volume | L | 100 | ||||
| Oil content | 0 | |||||
| Compressed air outlet connection | G2 | |||||
| Dimension | L | mm | 1950 | |||
| W | mm | 1350 | ||||
| H | mm | 1450 | ||||
| Net Weight | kg | 1580 | ||||
| Motor | Model | Y225M-2 | ||||
| Speed | rpm | 2990 | ||||
| Rated Power | KW | 55 | ||||
| Service factor | 1.2 | |||||
| Protection type | IP55 | |||||
| Insulation class | IE3 | |||||
| Startup mode | Y-Δ starting | |||||
| Voltage | V | 380(Special on request) | ||||
| Frequency | Hz | 50(Special on request) | ||||
| Rated current | A | 103 | ||||
| Weight of motor | kg | 387 | ||||
