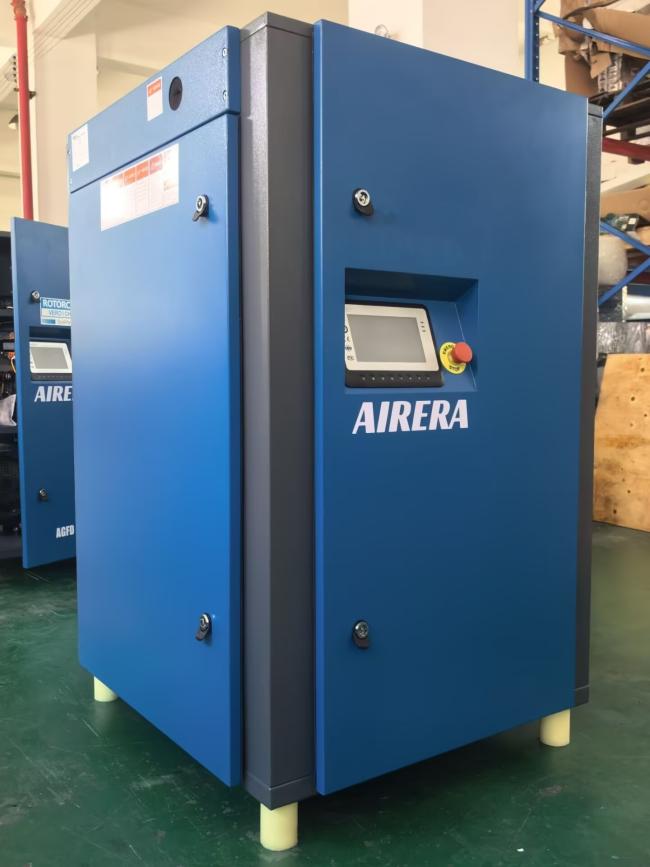

AIRERA AGFD-18.5KW EVO 18.5kW Industrial Screw Air Compressor Oil Injected
The AIRERA AGFD-18.5KW EVO is an 18.5kW industrial oil injected rotary screw air compressor designed for workshops, small to medium manufacturing facilities, and continuous production lines that require reliable compressed air supply.
Featuring an efficient direct drive system and high quality screw airend, this compressor delivers stable air flow with low energy consumption. The EVO series incorporates enhanced design elements for improved performance and durability compared to standard models.
With its compact footprint, low noise operation, and intelligent control system, the AGFD-18.5KW EVO provides a dependable compressed air solution for businesses seeking to upgrade from piston technology or expand existing capacity.
Direct Drive System
Eliminates belts and pulleys for higher transmission efficiency, reduced maintenance, and reliable long term performance.
High Efficiency Screw Airend
Precision engineered rotors provide continuous compressed air with low pulsation and high reliability for industrial applications.
Energy Saving Performance
Optimized design reduces power consumption compared to traditional piston compressors, lowering operating costs.
Low Noise Operation
Advanced soundproofing keeps noise levels low for comfortable installation in workshop environments.
Compact EVO Design
Space saving footprint with enhanced features for improved durability and performance.
Intelligent Controller
Digital display allows real time monitoring of pressure, temperature and maintenance alerts for worry free operation.
| ITEM | UNIT | MODEL | ||||
|---|---|---|---|---|---|---|
| AGFD-18.5 | ||||||
| Free air delivery | m3/min | 3.00 | 2.80 | 2.50 | 2.10 | |
| Max. working pressure | MPa | 0.8 | 1.0 | 1.3 | 1.5 | |
| Compressor type | Oil inject screw compressor | |||||
| Cooling type | Air cooling | |||||
| Driven type | Belt driven | |||||
| Inlet status | Temperature | ℃ | ≤55 | |||
| Pressure | MPa | Atmospheric pressure | ||||
| Relative humidity | ≤90% | |||||
| Noise Level | dB(A) | ≤72 | ||||
| Residual oil content | ppm | ≤1 | ||||
| Drive rotor speed | rpm | 4050 | 3750 | 3200 | 2730 | |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 | ||||
| Cooling air flow | m3/hr | 7200 | ||||
| Control mode | Intelligent controller | |||||
| Safety valve set pressure | MPa | 0.88 | 1.10 | 1.43 | 1.60 | |
| Lubricating oil volume | L | 15 | ||||
| Lubricating oil brand | ROTORCOMP | |||||
| Compressed air outlet connection | G1 | |||||
| Dimension | L | mm | 1200 | |||
| W | mm | 950 | ||||
| H | mm | 1300 | ||||
| Net Weight | kg | 565 | ||||

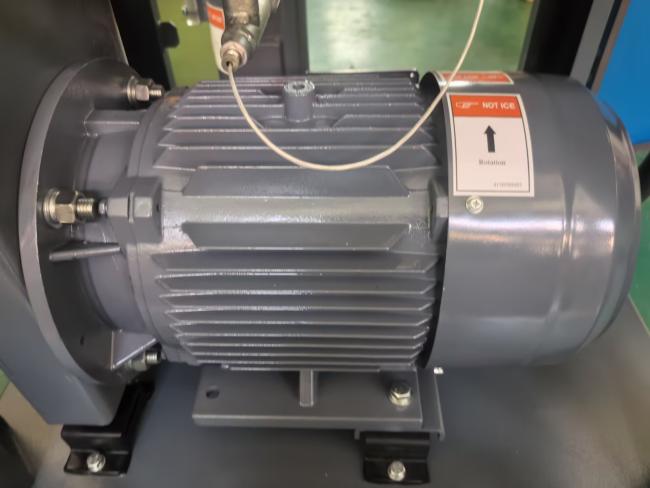

| Motor | Model | Y2160L-2 | ||||
| Speed | rpm | 2930 | ||||
| Rated Power | KW | 18.5 | ||||
| Service factor | 1.2 | |||||
| Protection type | IP55 | |||||
| Efficiency | IE3 | |||||
| Startup mode | ʏ-Δ starting | |||||
| Voltage | V | 380(Special on request) | ||||
| Frequency | Hz | 50(Special on request) | ||||
| Rated current | A | 35.5 | ||||
| Weight of motor | kg | 145 | ||||
Small to medium manufacturing workshops
Automotive repair and maintenance facilities
Metal fabrication and processing shops
Woodworking and furniture production
Plastic and rubber processing
Packaging machinery operations
General industrial pneumatic systems
Q1: What is the advantage of the EVO series?
The EVO series incorporates enhanced design elements including improved cooling, upgraded components, and optimized performance compared to standard models.
Q2: Is an 18.5kW compressor suitable for continuous operation?
Yes. The AGFD-18.5KW EVO is designed for continuous industrial operation with reliable components and efficient cooling systems.
Q3: What pressure options are available?
This model can be configured for 8 bar, 10 bar, or 13 bar working pressure based on your application requirements.
Q4: What maintenance does it require?
Routine maintenance includes regular air filter and oil filter changes. The direct drive design eliminates belt replacements, reducing overall maintenance work.
Q5: Can voltage be customized for different countries?
Yes. Voltage and frequency can be customized according to destination country requirements.
