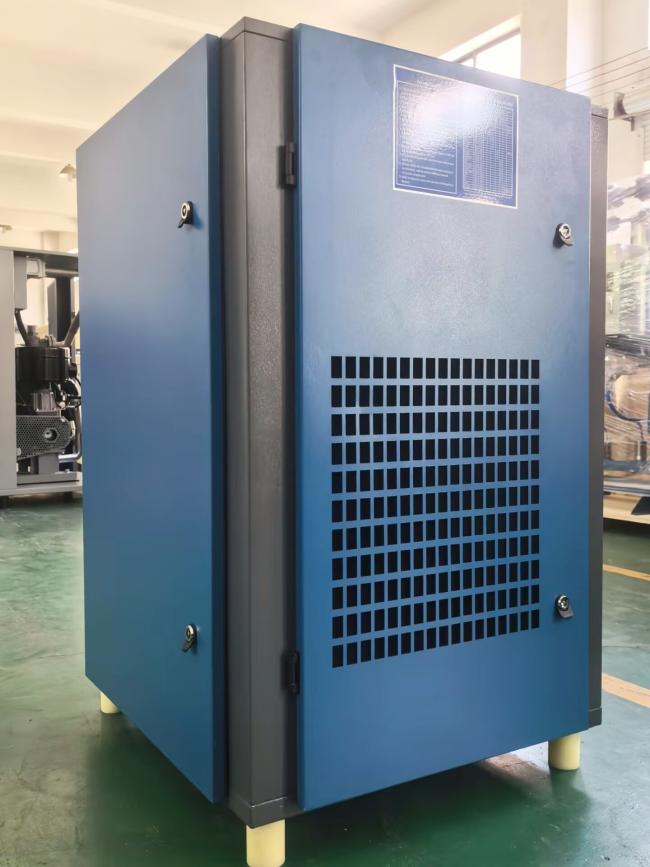

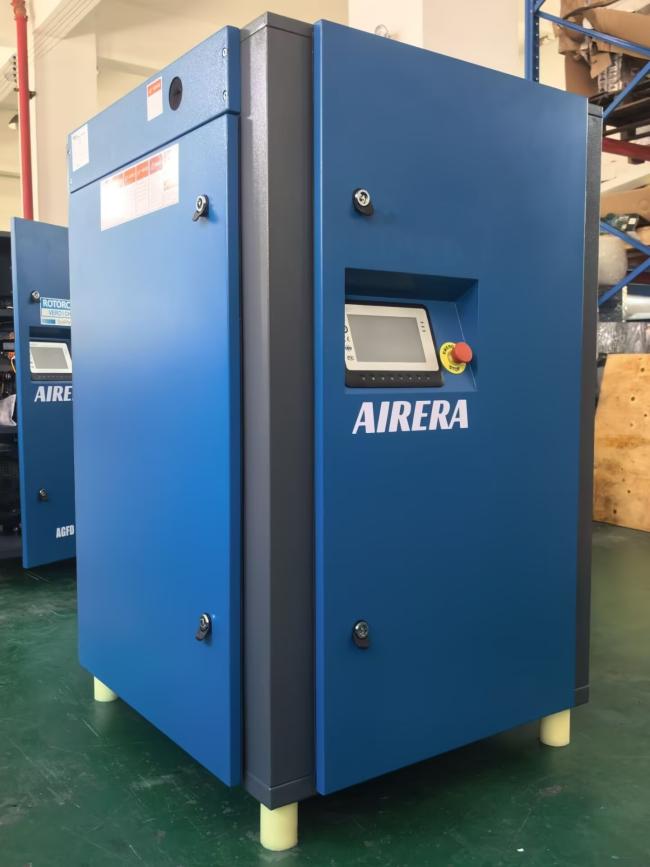

AIRERA AGFD-22KW EVO 22kW Industrial Oil Injected Screw Air Compressor
The AIRERA AGFD-22KW EVO is a 22kW industrial oil injected rotary screw air compressor designed for medium sized factories, manufacturing facilities, and continuous production lines that require reliable compressed air supply.
Featuring an efficient direct drive system and high quality screw airend, this compressor delivers stable air flow with low energy consumption. The EVO series incorporates enhanced design elements for improved performance and durability compared to standard models.
With its compact footprint, low noise operation, and intelligent control system, the AGFD-22KW EVO provides a dependable compressed air solution for businesses seeking reliable performance and lower operating costs.

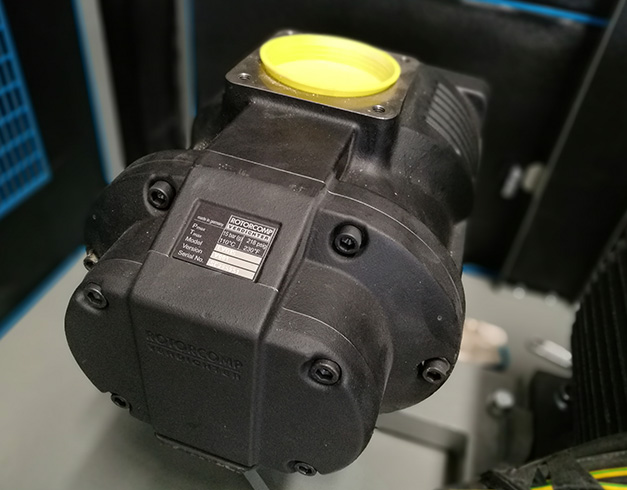

Why to use Evo series German main engine compressor?
Advantages of our new EVO technology
New ROLLING PROFILER - ultimate efficiency with reduced noise
Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILER
Wide operating pressure range from 5 to 15 barg
High manufacturer assembling - "Made in Germany'
Quality assurance - bench test of every air end before leaving our factory
Easy application selection with our new ROTORCOMP SIZING AIR SoftwareHighest flexibility for your package design
Suitable for all types of motors
ITEM | UNIT | MODEL | ||||
AGFD-22 | ||||||
Free air delivery | m3/min | 3.60 | 3.20 | 2.75 | 2.45 | |
Max. working pressure | MPa | 0.8 | 1.0 | 1.3 | 1.5 | |
Compressor type | Oil inject screw compressor | |||||
Cooling type | Air cooling | |||||
Driven type | Belt driven | |||||
Inlet status | Temperature | ℃ | ≤55 | |||
Pressure | MPa | Atmospheric pressure | ||||
Relative humidity | ≤90% | |||||
Noise Level | dB(A) | ≤72 | ||||
Residual oil content | ppm | ≤1 | ||||
Drive rotor speed | rpm | 4750 | 4250 | 3750 | 3450 | |
Compressed air outlet temperature | ℃ | Ambient temperature＋10 | ||||
Cooling air flow | m3/hr | 7800 | ||||
Control mode | Intelligent controller | |||||
Safety valve set pressure | MPa | 0.88 | 1.10 | 1.43 | 1.60 | |
Lubricating oil volume | L | 15 | ||||
Lubricating oil brand | ROTORCOMP | |||||
Compressed air outlet connection | G1 | |||||
Dimension | L | mm | 1200 | |||
W | mm | 950 | ||||
H | mm | 1300 | ||||
Net Weight | kg | 600 | ||||

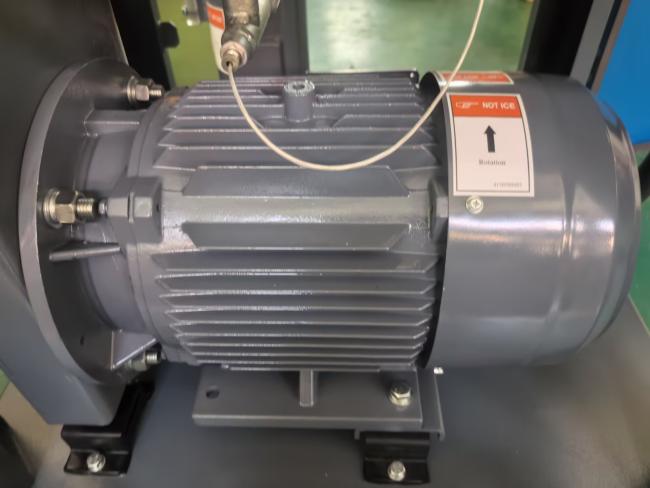

Motor | Model | Y2160L1-2 | ||||
Speed | rpm | 2940 | ||||
Rated Power | KW | 22 | ||||
Service factor | 1.2 | |||||
Protection type | IP55 | |||||
Efficiency | IE3 | |||||
Startup mode | ʏ-Δ starting | |||||
Voltage | V | 380(Special on request) | ||||
Frequency | Hz | 50(Special on request) | ||||
Rated current | A | 42.2 | ||||
Weight of motor | kg | 173 | ||||
Medium sized manufacturing facilities
Automotive component production
Metal fabrication and processing
Plastic and rubber industry
Woodworking and furniture manufacturing
Packaging and printing operations
General industrial pneumatic systems
Q1: What is the advantage of the EVO series?
The EVO series incorporates enhanced design elements including improved cooling, upgraded components, and optimized performance compared to standard models.
Q2: Is a 22kW compressor suitable for continuous operation?
Yes. The AGFD-22KW EVO is designed for continuous industrial operation with reliable components and efficient cooling systems.
Q3: What pressure options are available?
This model can be configured for 8 bar, 10 bar, or 13 bar working pressure based on your application requirements.
Q4: What maintenance does it require?
Routine maintenance includes regular air filter and oil filter changes. The direct drive design eliminates belt replacements, reducing overall maintenance work.
Q5: Can voltage be customized for different countries?
Yes. Voltage and frequency can be customized according to destination country requirements.
