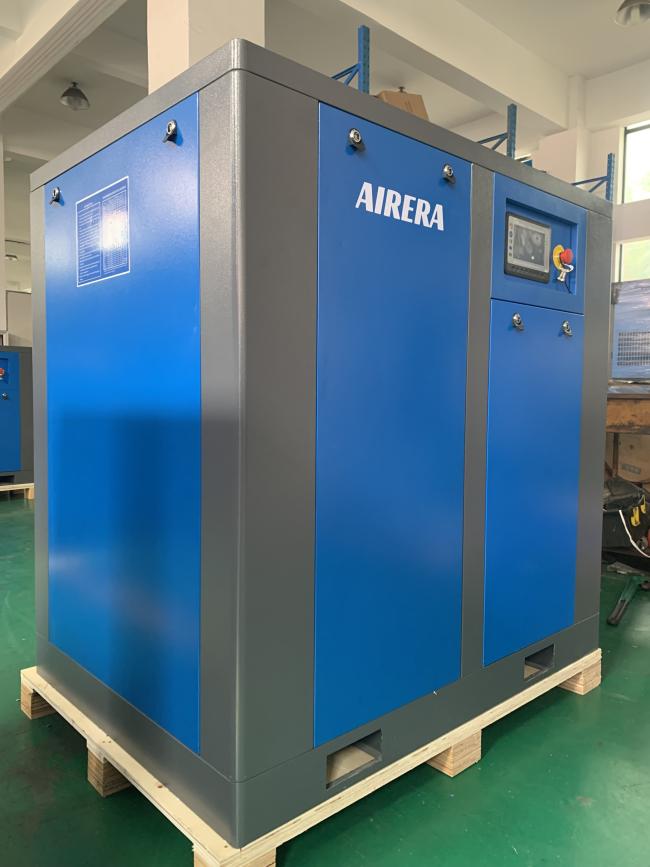

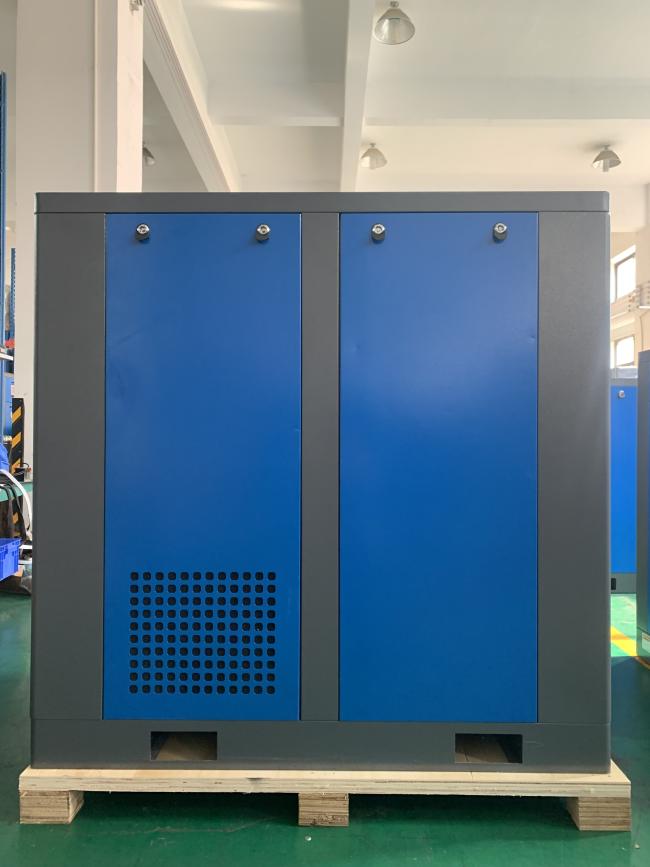

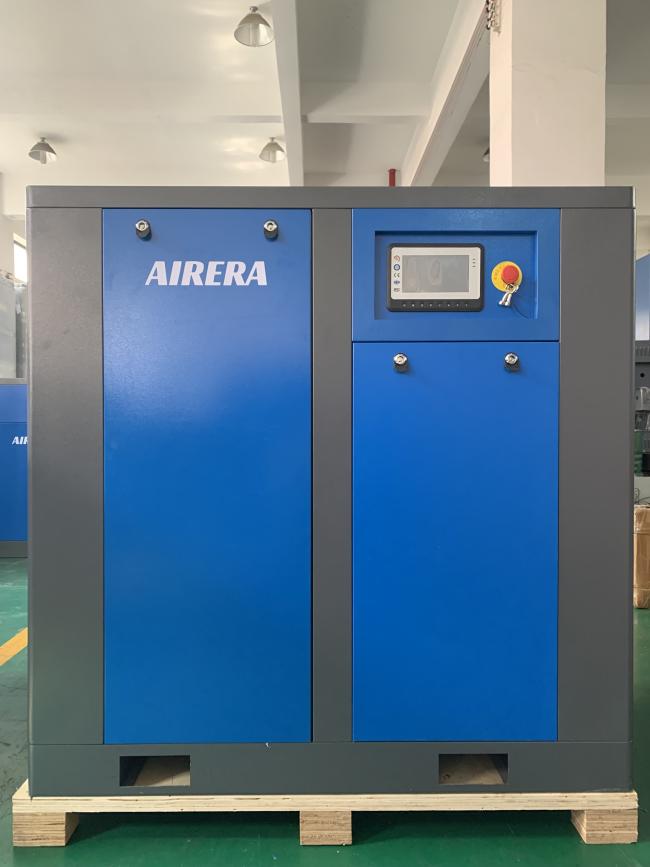

AIRERA AGCD-45 45kW Industrial Oil Injected Screw Air Compressor
The AIRERA AGCD-45 is a 45kW industrial oil injected rotary screw air compressor designed for heavy duty industrial applications that require reliable compressed air supply for continuous operation.
Featuring a direct drive system and high efficiency screw airend, this compressor delivers stable air flow with low energy consumption. Its robust construction ensures long service life even under the most demanding operating conditions.
Built for 24/7 operation in industrial environments, the AGCD-45 combines rugged reliability with easy maintenance, making it an ideal choice for large manufacturing plants, metal processing facilities, and other heavy industrial operations.

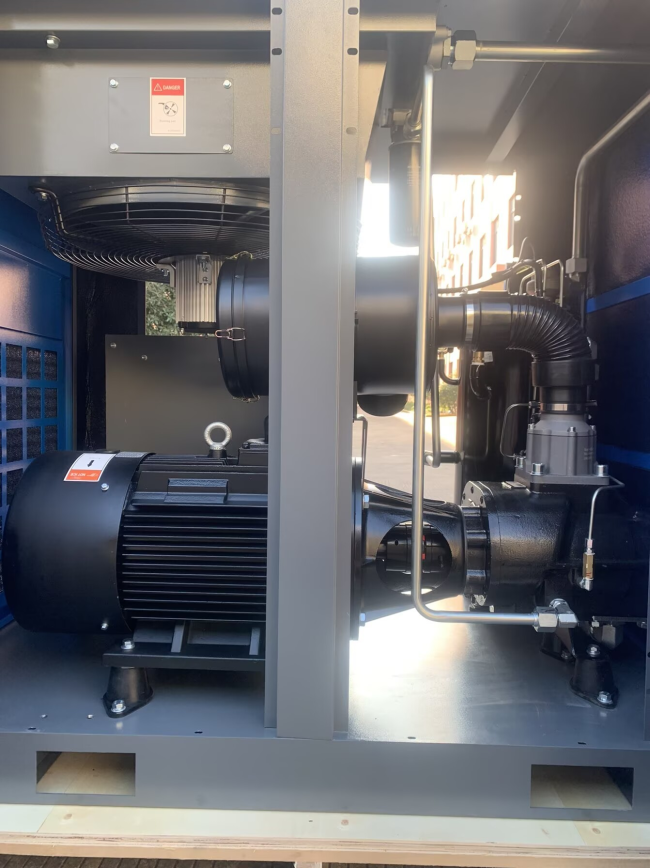

Direct Drive System
Eliminates belts and pulleys for higher transmission efficiency and reduced maintenance requirements.
High Efficiency Screw Airend
Precision engineered rotors provide continuous compressed air with low pulsation and high reliability for heavy duty use.
Robust Industrial Construction
Built with premium components for long service life in demanding environments up to 46°C ambient temperature.
Easy Maintenance Access
Side panels provide quick access to filters and service points, reducing downtime and maintenance costs.
Intelligent Controller
Digital display allows real time monitoring of pressure, temperature and maintenance alerts.
Low Noise Operation
Soundproofing keeps noise levels suitable for industrial work areas.
| Technical Data of Rotorcomp LGCD series Dual Stage Screw Air Compressor | ||||
| ITEM | UNIT | MODEL | ||
| MODEL | ||||
| ¹ Capacity (f.a.d.) at gauged pressure | m3/min | AGCD-45/4.0-C-G | AGCD-45/5.0-C-G | |
| Max. working pressure | MPa | 0.4 | 0.5 | |
| Compressor type | Two stage oil inject screw compressor | |||
| Cooling type | Air cooling | |||
| Driven type | Direct driven | |||
| Inlet status | Temperature | ℃ | ≤45 | |
| Pressure | MPa | Atmospheric pressure | ||
| Relative humidity | ≤90% | |||
| Cooling air flow | m3/hr | 9800 | ||
| Control mode | Intelligent controller | |||
| Safety valve set pressure | MPa | 0.44 | 0.55 | |
| Lubricating oil volume | L | 50 | ||
| Lubricating oil brand | ROTORCOMP | |||
| Compressed air discharge temperature | ℃ | Ambient temperature＋10 | ||
| Residual oil content | ppm | ≤3 | ||
| Drive rotor speed | rpm | 2950 | ||
| Main Motor | Rated Power | KW | 45 | |
| Type | Fix speed | |||
| Speed | rpm | 2950 | ||
| Service factor | 1.2 | |||
| Protection type | IP55 | |||
| Insulation class | ISO | F | ||
| Efficiency | IE3 | |||
| Startup mode | ʏ-Δ starting | |||
| Voltage(Special on request) | V | 380 | ||
| Frequency(Special on request) | Hz | 50 | ||
| Rated current | A | 80.82 | ||
| Fan Motor | Rated Power | KW | 1.5 | |
| Type | Fix speed | |||
| Speed | rpm | 1480 | ||
| Protection type | IP55 | |||
| Insulation class | ISO | F | ||
| Startup mode | Direct starting | |||
| Voltage(Special on request) | V | 380 | ||
| Frequency(Special on request) | Hz | 50 | ||
| Section of electr. cable | mm² | 4 * 50 | ||
| Recom. HRC fuse | A | 125 | ||
| Recom. Air breaker | A | 200 | ||
| ² Sound level | dB(A) | ≤73 | ||
| Compressed air outlet connection | DN65 | |||
| Dimension | L*W*H | mm | 2200*1450*1650 | |
| Net Weight | kg | 2350 | ||
Q1: Is this compressor suitable for continuous 24/7 operation?
Yes. The AGCD-45 is specifically designed for continuous heavy duty industrial operation with robust cooling systems and premium components.
Q2: What pressure options are available?
This model can be configured for 7 bar, 8 bar, 10 bar, or 13 bar working pressure based on your application requirements.
Q3: What maintenance does it require?
Routine maintenance includes regular air filter, oil filter, and oil separator changes. The direct drive design eliminates belt replacements.
Q4: Can voltage be customized for different countries?
Yes. We can customize voltage and frequency according to local power supply specifications.
