AIRERA AGSD-7.5D A 7.5kW Screw Air Compressor with Tank Mounted
Price:
520-30,000 USD
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
AIRERA
Product Description
Product Overview

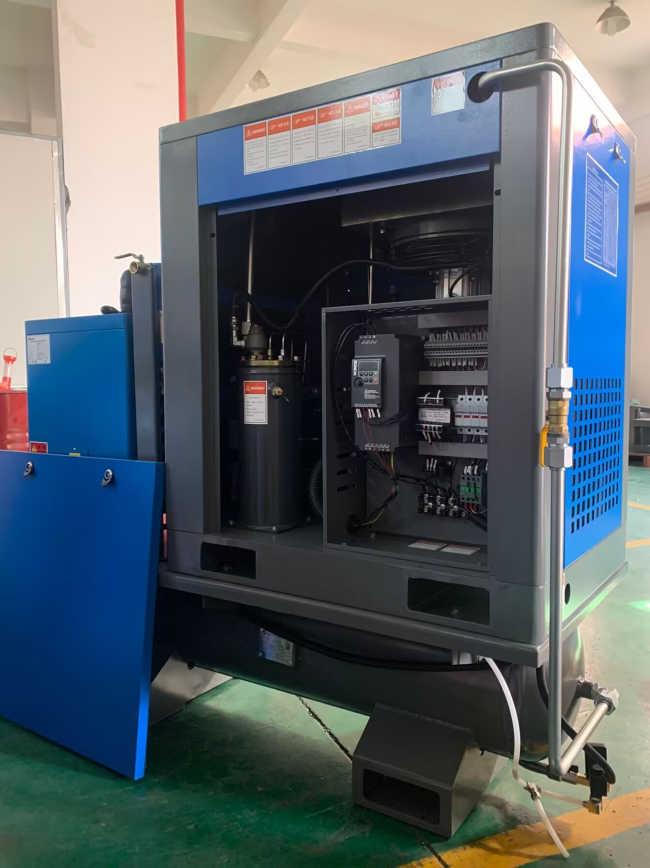

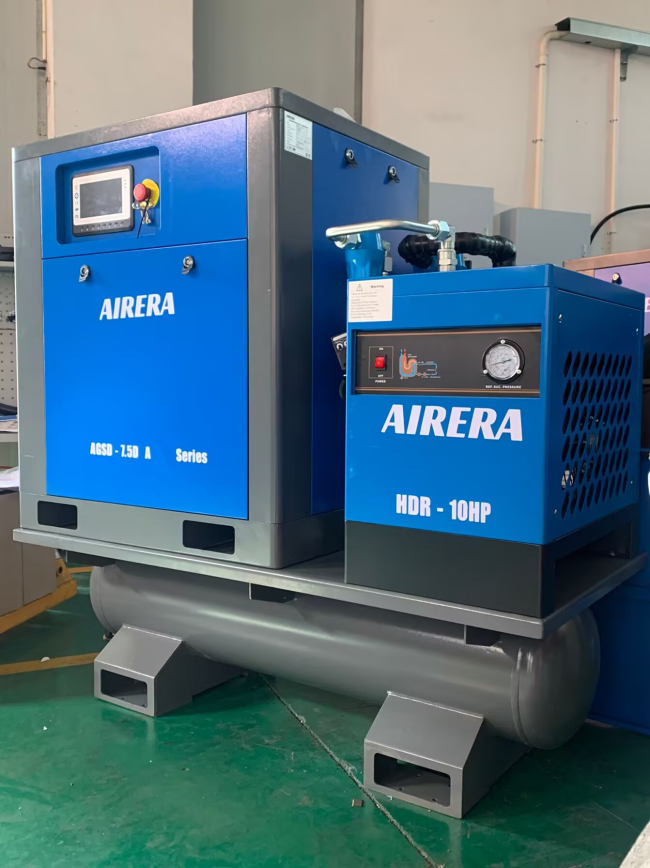

The AIRERA AGSD-7.5D A is a 7.5kW tank mounted rotary screw air compressor designed for workshops and light industrial facilities that require a complete, space-saving compressed air solution.
Featuring an integrated receiver tank and direct drive system, this all-in-one unit delivers stable compressed air with minimal installation requirements. Simply connect power and start operating – no complex piping or separate tank installation needed.
Perfect for automotive repair shops, small manufacturing facilities, and maintenance workshops, the AGSD-7.5D A combines reliable performance with compact footprint and easy installation.
Key Features
- Integrated Tank Mounted Design
Complete solution with compressor and receiver tank in one unit, saving floor space and eliminating separate tank installation. - Direct Drive System
Eliminates belts and pulleys for higher transmission efficiency and reduced maintenance requirements. - High Efficiency Screw Airend
Precision engineered rotors provide continuous compressed air with low pulsation and high reliability. - Low Noise Operation
Advanced soundproofing keeps noise levels low for comfortable workshop installation. - Plug and Play Installation

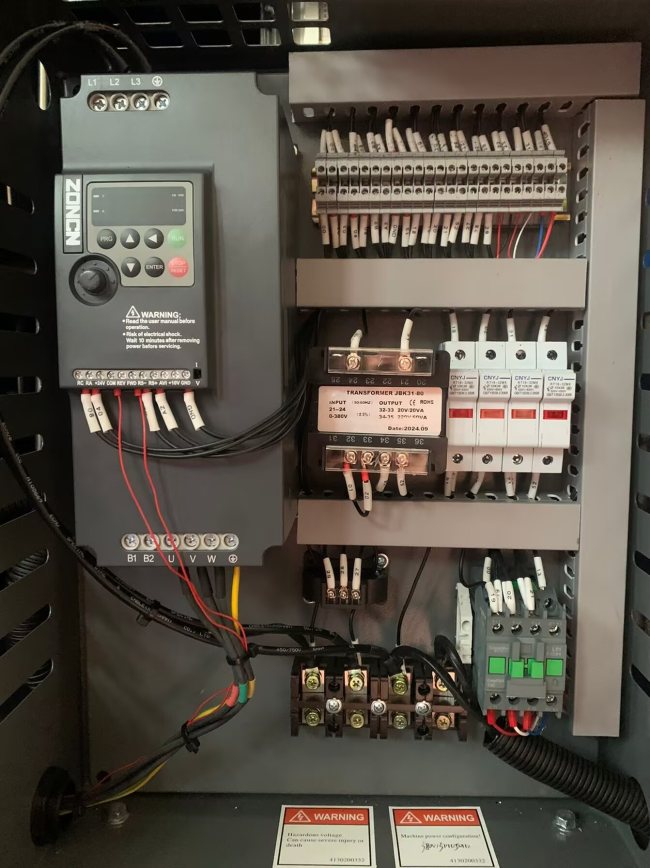

Pre-wired and pre-tested, ready for immediate operation after power connection. - Intelligent Controller
Digital display allows real time monitoring of pressure, temperature and maintenance alerts.
Technical Parameters
| Technical Data of Rotorcomp LGSD(C) series Screw Air Compressor | |||||
|---|---|---|---|---|---|
| ITEM | UNIT | MODEL | |||
| AGSD-7.5 | |||||
| Compressor | |||||
| ¹ Capacity (f.a.d.) at gauged pressure | m3/min | 1.2 | 1.15 | 1 | |
| Max. working pressure | MPa | 0.7 | 0.8 | 1 | |
| Compressor type | Oil inject screw compressor | ||||
| Cooling type | Air cooling | ||||
| Driven type | Direct driven | ||||
| Inlet status | Temperature | ℃ | ≤45 | ||
| Pressure | MPa | Atmospheric pressure | |||
| Relative humidity | ≤90% | ||||
| Cooling air flow | m3/hr | 4800 | |||
| Control mode | Intelligent controller | ||||
| Safety valve set pressure | MPa | 0.77 | 0.88 | 1.1 | |
| Lubricating oil volume | L | 7 | |||
| Lubricating oil brand | ROTORCOMP | ||||
| Drive rotor speed | rpm | 2900 | |||
| Main Motor | Rated Power | KW | 7.5 | ||
| Type | Fix speed | ||||
| Speed | rpm | 2900 | |||
| Service factor | 1.2 | ||||
| Protection type | IP55 | ||||
| Insulation class | ISO | F | |||
| Efficiency | IE3 | ||||
| Startup mode | Direct starting | ||||
| Voltage(Special on request) | V | 380 | |||
| Frequency(Special on request) | Hz | 50 | |||
| Rated current | A | 14.37 | |||
| Fan Motor | Rated Power | KW | 0.12 | ||
| Type | Fix speed | ||||
| Speed | rpm | 1400 | |||
| Protection type | IP55 | ||||
| Insulation class | ISO | F | |||
| Startup mode | Direct starting | ||||
| Voltage(Special on request) | V | 380 | |||
| Frequency(Special on request) | Hz | 50 | |||
FAQ
- Q1: What are the advantages of a tank mounted compressor?
- Tank mounted compressors save floor space, reduce installation time and cost, and provide a complete ready-to-use solution without requiring separate tank purchase and piping.
- Q2: Is this compressor suitable for continuous operation?
- Yes. The AGSD-7.5D A is designed for reliable performance in workshop environments with typical duty cycles.
- Q3: What pressure options are available?
- This model can be configured for 8 bar or 10 bar working pressure based on your application requirements.
- Q4: How much maintenance does it require?
- Routine maintenance includes regular air filter and oil filter changes. The direct drive design eliminates belt replacements.
- Q5: Can voltage be customized for different countries?
- Yes. Voltage and frequency can be customized according to destination country requirements.
