5.5KW 0.7-1.3MPa air-cooling oil inject screw compressor
AIRERA | 5.5kW Industrial Oil-Injected Rotary Screw Air Compressor
Versatile Power, Intelligent Manufacturing: 0.7–1.3MPa Air-Cooled Series
In the realm of small-scale processing and precision manufacturing, you need more than just equipment—you need a stable, high-efficiency "beating heart" for your operations. The AIRERA 5.5kW (7.5HP) Air-Cooled Series is engineered for enterprises that demand the ultimate balance of cost-performance and industrial reliability.
Advantages of AGCD Oil-Inject Air Screw Compressor:
-

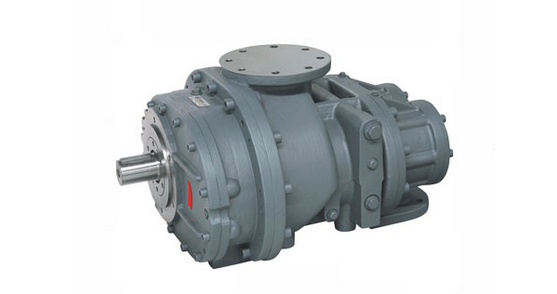

【Air end block – reliable centrepiece– Design in Germany】
The centrepiece of the compressor is the air end, which is constructed and manufactured with the most modern production methods in Germany. The optimal air end for your compressor can be used on amodulating basis. In frequency-controlled units, where the operating pressure changes, adjustments can also be made on the frequency controller to optimally adjust the speed of the compressor to the compressor performance.
![]()
-

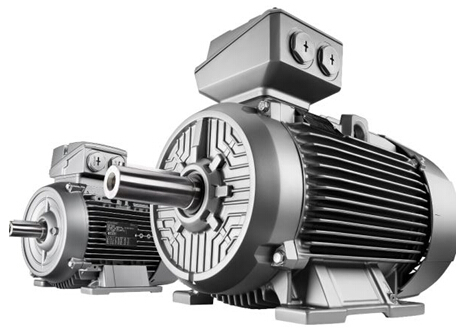

【Electric motor】
Only electric motors from well-known manufacturers of protection class IP55/IE3&4 are used. As a standard, the drive motors are monitored both thermally (via the thermistor of the motor) as well as electronically (overload protection via the frequency inverter).
![]()
-

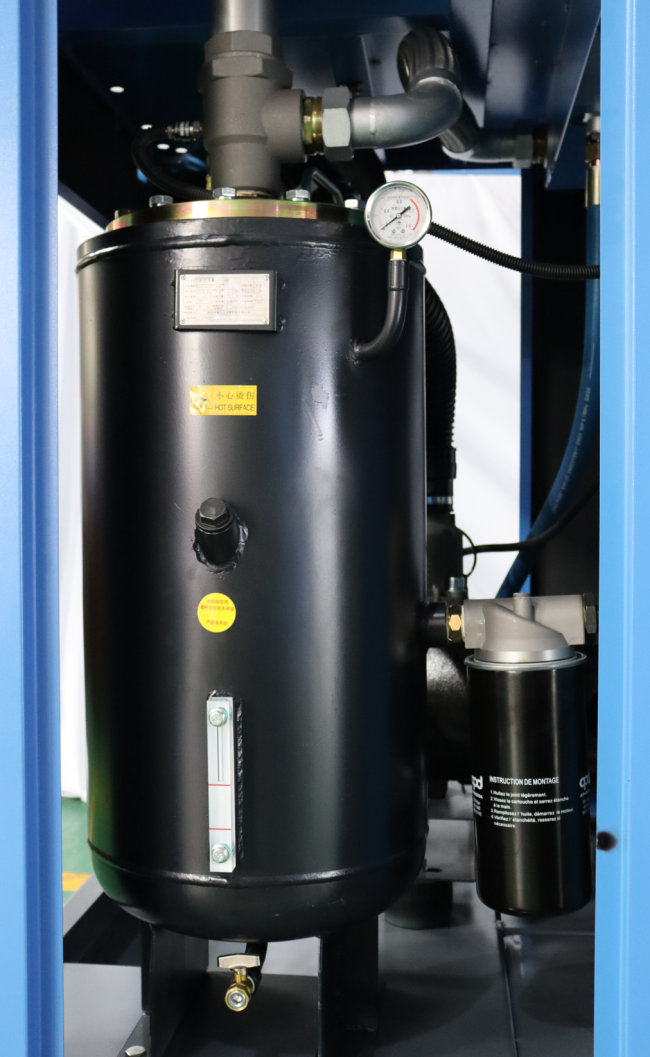

【Oil separation system】
Compressors up to 132 kW are equipped with external separators that can be changed in a simple spin-off/spin-on process. Larger units have an internal separator cartridge. Due to the excellent separation efficiency of the system as a whole, the compressors can be used in the pressure range of 5.0 to 15.0 bar. Special pressures on request.
| ITEM | UNIT | MODEL AGCD-5.5 |
|---|---|---|
| Free air delivery | m³/min | 0.92 | 0.87 | 0.75 | 0.61 |
| Max. working pressure | MPa | 0.7 | 0.8 | 1.0 | 1.3 |
| Compressor type | Oil inject screw compressor | |
| Cooling type | Air cooling | |
| Driven type | Belt driven | |
| Inlet status - Temperature | ℃ | ≤45 |
| Inlet status - Pressure | MPa | Atmospheric pressure |
| Inlet status - Relative humidity | ≤90% | |
| Noise Level | dB(A) | ≤70 |
| Residual oil content | ppm | ≤2 |
| Drive rotor speed | rpm | 3500~2050 |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 |
| Cooling air flow | m³/hr | 4800 |
| Control mode | Intelligent controller | |
| Safety valve set pressure | MPa | 0.77 ~ 1.43 |
| Lubricating water volume | L | 10 |
| Compressed air outlet connection | G3/4 | |
| Dimension - L | mm | 850 |
| Dimension - W | mm | 700 |
| Dimension - H | mm | 1020 |
| Net Weight | kg | 170 |
| Motor - Model | Y2132S1-2 | |
| Motor - Speed | rpm | 2900 |
| Motor - Rated Power | KW | 5.5 |
| Motor - Service factor | 1.2 | |
| Motor - Protection type | IP55 | |
| Motor - Efficiency | IE3 | |
| Motor - Startup mode | Direct starting | |
| Motor - Voltage | V | 380(Special on request) |
| Motor - Frequency | Hz | 50(Special on request) |
| Motor - Rated current | A | 10.5 |
| Motor - Weight of motor | kg | 65 |
Compared to piston compressors, the AIRERA screw series offers:
Longer Lifespan: The rotary screw rotors operate without friction, lasting 3 to 5 times longer than piston cylinders.
Lower Noise: Operating at approximately 65dB, it is quiet enough for environments with noise restrictions.
Superior Air Quality: Our oil-injection technology combined with multi-stage oil-gas separation results in extremely low oil carryover, protecting your downstream precision equipment.
