30KW VSD Direct driven oil inject screw compressor
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
5-15 days
Brand:
AIRERA
Product Description
AIRERA | 30kW VSD Direct Driven Oil-Injected Screw Compressor
Peak Efficiency, Direct Drive — The Sustainable Power Core for Large-Scale Production
The AIRERA 30kW Series is an energy-efficiency benchmark built for high-load, long-operating-hour industrial environments. By integrating 1:1 Direct Drive technology with an advanced Variable Speed Drive (VSD) system, this unit eliminates the transmission losses and unloading waste common in mid-to-large-scale compressors. Whether supporting complex automated lines or heavy manufacturing, it delivers exceptionally stable and economical compressed air, reducing energy costs by over 35% compared to traditional belt-driven models.
Advantages of AGCD VSD Oil-Inject Air Screw Compressor
- With a wider frequency modulation range of 30–200 Hz, it is 15–35% more energy-efficient than most 300–100 Hz compressors on the market
Next-generation control system: We employ dual-inverter technology, retaining the original motor inverter features while also incorporating an inverter-controlled cooling fan for the main unit. This dual-inverter approach ensures the cooling system operates in a stable state, and the modular design facilitates easy maintenance.

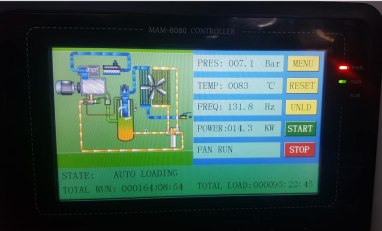

- Multi-touch color controller for simple and convenient operation and monitoring
-

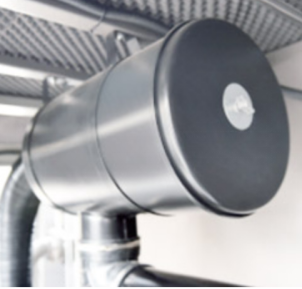

Custom air intake system that prevents dust from entering
A three-stage filtration system removes fine particles from the air, filtering out 99.99% of impurities to ensure the quality of the air entering the unit and extend its service life
Technical Specifications - 30KW VSD Air Cooling Compressor
| ITEM | UNIT | MODEL AGCD-30 VP |
|---|---|---|
| Free air delivery | m³/min | 1.25-5 | 1.15-4.5 | 0.95-3.6 |
| Max. working pressure | MPa | 0.8 ~1.3 |
| Compressor type | Oil inject screw compressor | |
| Cooling type | Air cooling | |
| Driven type | Direct driven | |
| Inlet status - Temperature | ℃ | ≤45 |
| Inlet status - Pressure | MPa | Atmospheric pressure |
| Inlet status - Relative humidity | ≤90% | |
| Noise Level | dB(A) | ≤72 |
| Residual oil content | ppm | ≤2 |
| Drive rotor speed | rpm | 800~3000 |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 |
| Cooling air flow | m³/hr | 9200 |
| Control mode | Intelligent controller | |
| Safety valve set pressure | MPa | 0.88 ~ 1.43 |
| Lubricating water volume | L | 30 |
| Compressed air outlet connection | G1-1/2 | |
| Dimension - L | mm | 1400 |
| Dimension - W | mm | 1000 |
| Dimension - H | mm | 1300 |
| Net Weight | kg | 740 |
| Motor - Model | YPM160L30-30 | |
| Motor - Speed | rpm | 800~3000 |
| Motor - Rated Power | KW | 30 |
| Motor - Service factor | 1.2 | |
| Motor - Protection type | IP55 | |
| Motor - Efficiency | IE3 | |
| Motor - Startup mode | Frequency conversion starting | |
| Motor - Voltage | V | 380(Special on request) |
| Motor - Frequency | Hz | 40-150(Special on request) |
| Motor - Rated current | A | 51 |
| Motor - Weight of motor | kg | 150 |
AIRERA 30kW VP Screw Air Compressor: Frequently Asked Questions (FAQ)
What is the approximate air delivery of this 30kW unit? How many pneumatic tools can it support?
A 30kW VSD compressor delivers approximately $5.0-5.5text{ m}^3/text{min}$ at 0.8MPa. While the exact number of tools depends on individual air consumption, it is typically sufficient to power a medium-to-large machining workshop, a mid-scale painting line, or multiple textile production units.
Why is air-cooling recommended for high-power machines like the 30kW model?
While water-cooling is common for high power, AIRERA’s optimized air-cooling is more economical and convenient for the 30kW range. It eliminates the need for expensive cooling towers and plumbing, and removes the risks of freezing in winter or scaling in pipes. Our oversized aluminum finned radiators ensure excellent temperature control even in harsh, high-ambient conditions.
What are the benefits of VSD soft-starting for a mid-to-large motor like the 30kW?
It protects both your power grid and mechanical longevity. A 30kW motor would generate a massive current spike if started directly. VSD soft-starting allows the current to ramp up slowly from zero, preventing voltage drops that could crash other factory equipment. Simultaneously, by minimizing startup impact, the gears and bearings of the airend receive physical protection, leading to a longer service life.
