5.5KW 0.8-1.5MPa air-cooling oil inject screw compressor
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
5-15 days
Brand:
AIRERA
Product Description
The Workshop King: AIRERA 5.5kW Compressor—High Pressure, Fast Cooling, Built to Last
AIRERA 5.5kW oil-injected screw compressor is built for workshops that demand versatility without compromise. It breaks the limits of compact units by supporting a wide 0.8-1.5MPa pressure range, effortlessly handling everything from standard pneumatic tools to high-pressure laser cutting. Engineered with a premium air-cooling system and high-efficiency rotors, this machine maintains rock-solid stability even during continuous, high-load operation. It’s not just a power source; it’s a quiet, energy-saving workhorse that eliminates downtime anxiety. Choose AIRERA for a long-lasting, reliable heartbeat for your production line.
Advantages of AGFD Oil-Inject Air Screw Compressor:

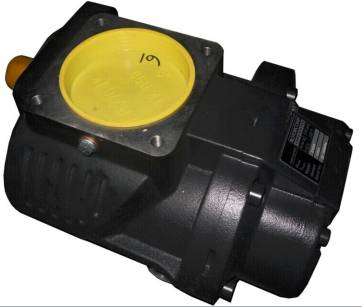

- World-leading Made in Germany Rotorcomp screw air end in 5 years warranty
-

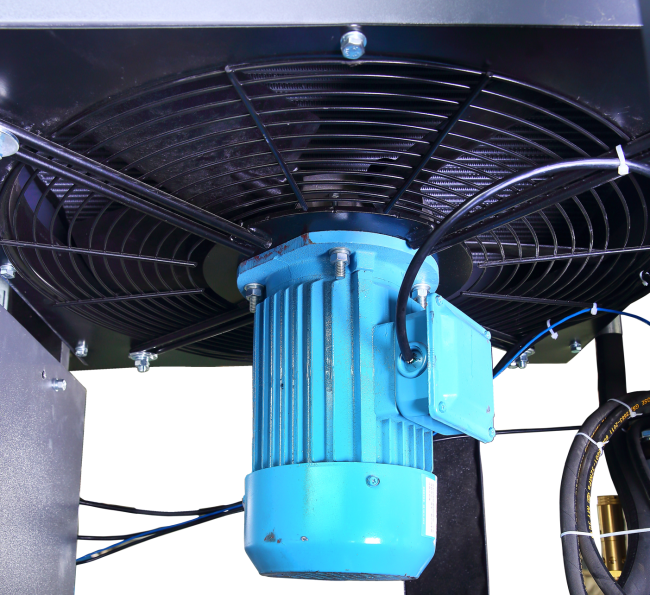

Extraordinary cooling system, 20-30% cooling performance than the old models, and friendly to do maintain job to cooler and cooling fan
-
![]()
-

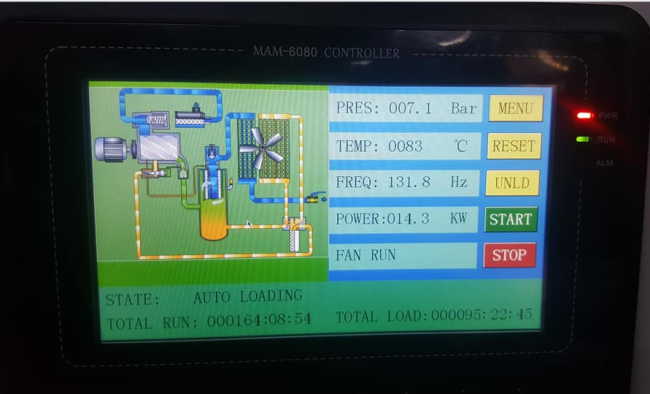

Advanced Intelligent colorful touchable control system for simple& easy operation
Technical Specifications - 5.5KW Air Cooling Compressor
5.5KW Air Cooling Compressor Parameters
| ITEM | UNIT | MODEL AGFD-5.5 |
|---|---|---|
| Free air delivery | m³/min | 0.87 | 0.75 | 0.61| 0.53 |
| Max. working pressure | MPa | 0.8 | 1.0 | 1.3| 1.5 |
| Compressor type | Oil inject screw compressor | |
| Cooling type | Air cooling | |
| Driven type | Belt driven | |
| Inlet status - Temperature | ℃ | ≤55 |
| Inlet status - Pressure | MPa | Atmospheric pressure |
| Inlet status - Relative humidity | ≤90% | |
| Noise Level | dB(A) | ≤69 |
| Residual oil content | ppm | ≤1 |
| Drive rotor speed | rpm | 5300~3530 |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 |
| Cooling air flow | m³/hr | 4800 |
| Control mode | Intelligent controller | |
| Safety valve set pressure | MPa | 0.88 ~ 1.6 |
| Lubricating water volume | L | 10 |
| Compressed air outlet connection | G3/4 | |
| Dimension - L | mm | 750 |
| Dimension - W | mm | 750 |
| Dimension - H | mm | 1000 |
| Net Weight | kg | 270 |
| Motor - Model | Y2132S1-2 | |
| Motor - Speed | rpm | 2890 |
| Motor - Rated Power | KW | 5.5 |
| Motor - Service factor | 1.2 | |
| Motor - Protection type | IP55 | |
| Motor - Efficiency | IE3 | |
| Motor - Startup mode | Direct starting | |
| Motor - Voltage | V | 380(Special on request) |
| Motor - Frequency | Hz | 50(Special on request) |
| Motor - Rated current | A | 10.5 |
| Motor - Weight of motor | kg | 56 |
AIRERA 5.5kW Screw Air Compressor: Frequently Asked Questions (FAQ)
What makes the EVO series stand out from other screw compressors?
It’s all about the "German DNA" and high efficiency. We use world-leading German-made Rotorcomp air ends paired with IE3 high-efficiency motors, boosting performance by 15%. Essentially, the EVO series doesn't just run reliably—it pays for itself within 1-2 years through significant energy savings.
Can this machine handle harsh environments or extreme summer heat?
Absolutely. The EVO series features a redesigned cooling system that is 20-30% more effective than previous models. Combined with the IP55 protection and a unique drive-train guard, it’s built for 24/7 continuous operation in dusty or high-temperature conditions without overheating or downtime.
Is the 5-year warranty for real? Is maintenance complicated?
We offer the 5-year warranty because we trust the durability of the German core and our protection systems. As for operation, the advanced smart color touch control is as intuitive as a smartphone. With ISO, TUV, and SGS certifications, the machine meets the highest global standards, making routine maintenance straightforward and worry-free.
