11KW Belt driven air-cooling oil inject screw compressor
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
5-15 days
Brand:
AIRERA
Product Description
High-Efficiency Output, The Durable Power Solution for Small-to-Mid Sized Production Lines
The AIRERA 11kW belt-driven model is the go-to choice for factories seeking a balance between cost-efficiency and easy maintenance. Featuring an optimized oil-injected screw air-end and a highly reliable belt-drive system, it delivers precise power with significantly reduced long-term servicing complexity. To match the 11kW demand, we’ve integrated an enhanced air-cooling system that maintains superior thermal stability even under high-pressure, high-heat conditions, ensuring consistent airflow without fluctuations. Its compact, sound-dampening enclosure provides massive power while keeping workshop noise to a minimum. Choose AIRERA—the "perfect attendance" workhorse for your production line.
Advantages of AGFD Oil-Inject Air Screw Compressor:
-

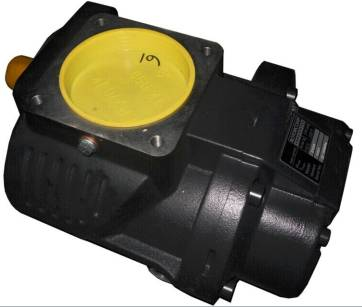

World-leading Made in Germany Rotorcomp screw air end in 5 years warranty
-

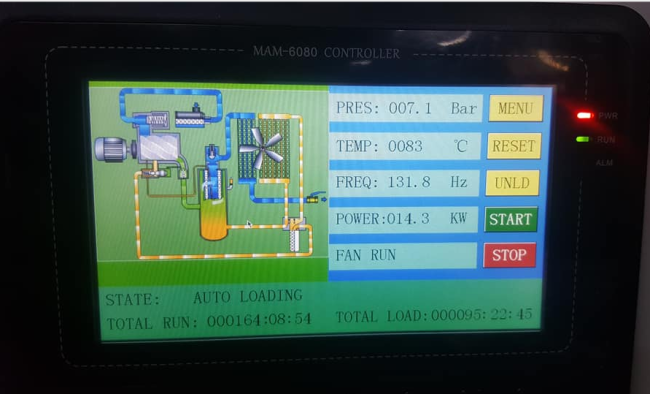

Advanced Intelligent colorful touchable control system for simple& easy operation
![]()
-

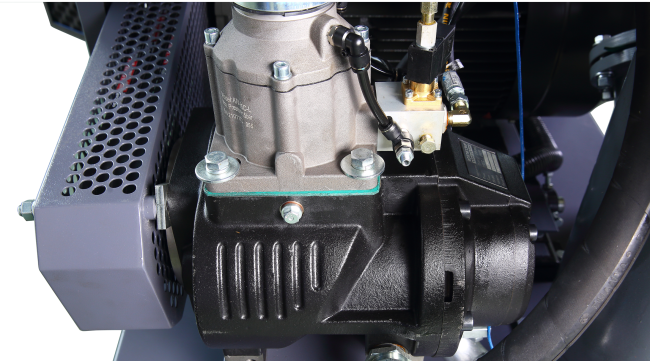

Unique driving guard system to increase the lifespan of driving system
Technical Specifications - 11KW Air Cooling Compressor
11KW Air Cooling Compressor Parameters
| ITEM | UNIT | MODEL AGFD-11 |
|---|---|---|
| Free air delivery | m³/min | 1.7-1.17 |
| Max. working pressure | MPa | 0.8-1.5 |
| Compressor type | Oil inject screw compressor | |
| Cooling type | Air cooling | |
| Driven type | Belt driven | |
| Inlet status - Temperature | ℃ | ≤55 |
| Inlet status - Pressure | MPa | Atmospheric pressure |
| Inlet status - Relative humidity | ≤90% | |
| Noise Level | dB(A) | ≤70 |
| Residual oil content | ppm | ≤1 |
| Drive rotor speed | rpm | 6500~4350 |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 |
| Cooling air flow | m³/hr | 5400 |
| Control mode | Intelligent controller | |
| Safety valve set pressure | MPa | 0.88 ~ 1.6 |
| Lubricating water volume | L | 10 |
| Compressed air outlet connection | G3/4 | |
| Dimension - L | mm | 950 |
| Dimension - W | mm | 850 |
| Dimension - H | mm | 1300 |
| Net Weight | kg | 350 |
| Motor - Model | Y2160M1-2 | |
| Motor - Speed | rpm | 2930 |
| Motor - Rated Power | KW | 11 |
| Motor - Service factor | 1.2 | |
| Motor - Protection type | IP55 | |
| Motor - Efficiency | IE3 | |
| Motor - Startup mode | ʏ-Δ starting | |
| Motor - Voltage | V | 380(Special on request) |
| Motor - Frequency | Hz | 50(Special on request) |
| Motor - Rated current | A | 21.8 |
| Motor - Weight of motor | kg | 115 |
AIRERA 11kW Screw Air Compressor: Frequently Asked Questions (FAQ)
Why choose a belt-drive system for the 11kW power range?
At this power level, the compressor is often the "heart" of the shop. The biggest value of a belt drive is its shock absorption. It cushions the air-end against vibrations or sudden load changes, extending the lifespan of the core components. AIRERA's design ensures that while performance remains top-tier, routine maintenance is so simple that it doesn't require specialized technicians.
How stable is the air pressure output during heavy-duty operation?
Extremely stable. We’ve matched the 11kW output with a large-capacity oil-gas separation system. This ensures that even during peak demand, the compressed air maintains minimal oil carryover and constant pressure. Our integrated controller keeps pressure fluctuations within a very narrow range, protecting your downstream equipment from unexpected trips.
How does AIRERA handle carbon buildup and heat in this 11kW model?
The secret is precision thermal control. We use a linked thermostatic valve and reinforced radiator system. By precisely controlling the oil temperature, we prevent moisture emulsification from over-cooling and carbon buildup from overheating. This closed-loop protection makes the AIRERA 11kW model highly reliable even in scorching climates like Southeast Asia or Africa.
