18.5KW Belt driven air-cooling oil inject screw compressor
The AIRERA 18.5kW belt-driven model is a heavy-duty powerhouse designed for high-demand manufacturing. Featuring a large-displacement air-end paired with a reinforced multi-V belt drive system, it delivers steady pressure while absorbing operational vibrations to significantly extend the lifespan of motor and air-end bearings. To support continuous production, we’ve integrated an enhanced air-cooling module, ensuring constant-temperature operation even in scorching heat—eliminating high-temperature shutdown risks. Its intuitive design makes belt swaps and routine maintenance faster and more straightforward. Choose AIRERA for a reliable, low-maintenance air source that keeps your production running at full capacity.
Advantages of AGFD Oil-Inject Air Screw Compressor:
-

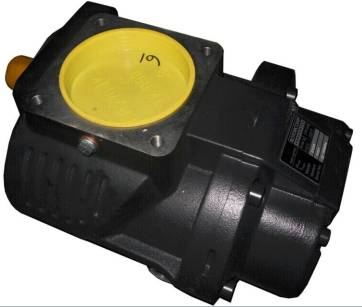

World-leading Made in Germany Rotorcomp screw air end in 5 years warranty
-

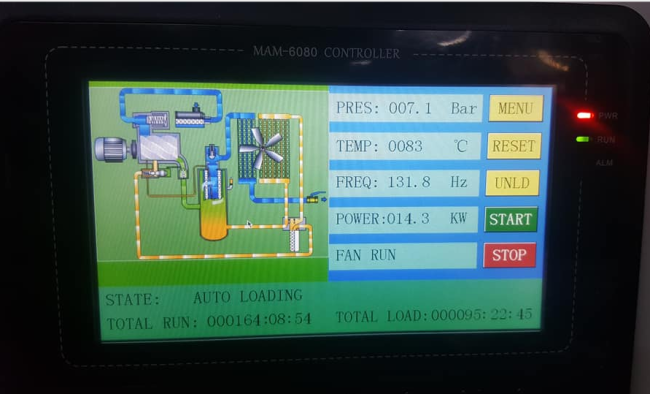

Advanced Intelligent colorful touchable control system for simple& easy operation
![]()
-
The patented OPTI belt transmission, this unique design to ensure the belt tensioning force by the weight of the motor and start Torque, the design service life is up to 25,000 hours, transmission efficiency can be as high as above 98%.
| ITEM | UNIT | MODEL AGFD-18.5 |
|---|---|---|
| Free air delivery | m³/min | 3-2.1 |
| Max. working pressure | MPa | 0.8-1.5 |
| Compressor type | Oil inject screw compressor | |
| Cooling type | Air cooling | |
| Driven type | Belt driven | |
| Inlet status - Temperature | ℃ | ≤55 |
| Inlet status - Pressure | MPa | Atmospheric pressure |
| Inlet status - Relative humidity | ≤90% | |
| Noise Level | dB(A) | ≤72 |
| Residual oil content | ppm | ≤1 |
| Drive rotor speed | rpm | 4050~2730 |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 |
| Cooling air flow | m³/hr | 7200 |
| Control mode | Intelligent controller | |
| Safety valve set pressure | MPa | 0.88 ~ 1.6 |
| Lubricating water volume | L | 15 |
| Compressed air outlet connection | G1 | |
| Dimension - L | mm | 1200 |
| Dimension - W | mm | 950 |
| Dimension - H | mm | 1300 |
| Net Weight | kg | 565 |
| Motor - Model | Y2160L-2 | |
| Motor - Speed | rpm | 2930 |
| Motor - Rated Power | KW | 18.5 |
| Motor - Service factor | 1.2 | |
| Motor - Protection type | IP55 | |
| Motor - Efficiency | IE3 | |
| Motor - Startup mode | ʏ-Δ starting | |
| Motor - Voltage | V | 380(Special on request) |
| Motor - Frequency | Hz | 50(Special on request) |
| Motor - Rated current | A | 35.5 |
| Motor - Weight of motor | kg | 145 |
We offer a 2-year full-unit warranty + a 3-year air-end warranty. This 5-year commitment is backed by our ISO, TUV, and SGS international certifications. For you, this means a high level of security for your core power source. Paired with our advanced smart color touch control system, the machine provides automatic maintenance alerts—making it as easy to use as a smartphone and allowing you to focus entirely on production.
