22KW 0.8-1.5MPa air-cooling oil inject screw compressor
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
5-15 days
Brand:
AIRERA
Product Description
0.8-1.5MPa Wide Range—The Power Flagship for Laser Cutting and Precision Manufacturing
The AIRERA 22kW oil-injected screw compressor is a performance benchmark for high-pressure demands. Supporting a wide 0.8-1.5MPa range, it perfectly matches the rigorous requirements of laser cutting, precision molding, and high-pressure testing. Equipped with a high-torque air-end, it maintains massive displacement and low energy consumption even under peak pressure. The reinforced air-cooling system ensures rock-solid stability during 24/7 full-load operation in summer heat. Combining a silent enclosure with an intelligent controller, it optimizes the workspace while enabling digital air source management. Choose AIRERA for high-pressure operations that are precise, efficient, and worry-free.
Advantages of AGFD Oil-Inject Air Screw Compressor:
-
World-leading Made in Germany Rotorcomp screw air end in 5 years warranty
-

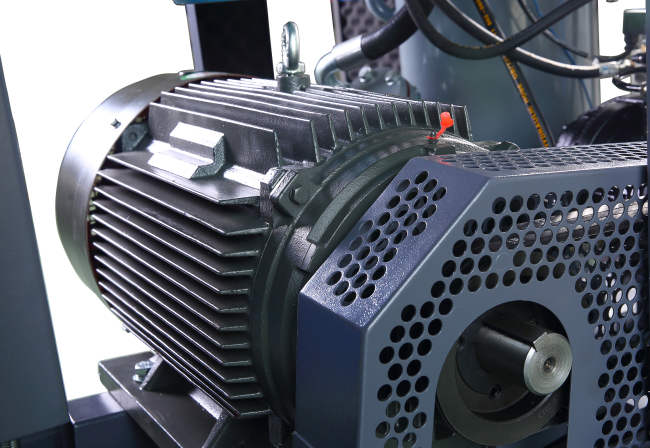

Higher efficient energy-saving motor in SF.1.2.IP55, IE3 CE&MEPS to increase 15% efficiency
![]()
-
Unique driving guard system to increase the lifespan of driving system
Technical Specifications - 22KW Air Cooling Compressor
22KW Air Cooling Compressor Parameters
| ITEM | UNIT | MODEL AGFD-22 |
|---|---|---|
| Free air delivery | m³/min | 3.6-2.45 |
| Max. working pressure | MPa | 0.8-1.5 |
| Compressor type | Oil inject screw compressor | |
| Cooling type | Air cooling | |
| Driven type | Belt driven | |
| Inlet status - Temperature | ℃ | ≤55 |
| Inlet status - Pressure | MPa | Atmospheric pressure |
| Inlet status - Relative humidity | ≤90% | |
| Noise Level | dB(A) | ≤72 |
| Residual oil content | ppm | ≤1 |
| Drive rotor speed | rpm | 4750~3450 |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 |
| Cooling air flow | m³/hr | 7800 |
| Control mode | Intelligent controller | |
| Safety valve set pressure | MPa | 0.88 ~ 1.6 |
| Lubricating water volume | L | 15 |
| Compressed air outlet connection | G1 | |
| Dimension - L | mm | 1200 |
| Dimension - W | mm | 950 |
| Dimension - H | mm | 1300 |
| Net Weight | kg | 600 |
| Motor - Model | Y2160L1-2 | |
| Motor - Speed | rpm | 2940 |
| Motor - Rated Power | KW | 22 |
| Motor - Service factor | 1.2 | |
| Motor - Protection type | IP55 | |
| Motor - Efficiency | IE3 | |
| Motor - Startup mode | ʏ-Δ starting | |
| Motor - Voltage | V | 380(Special on request) |
| Motor - Frequency | Hz | 50(Special on request) |
| Motor - Rated current | A | 42.2 |
| Motor - Weight of motor | kg | 173 |
AIRERA 22kW Screw Air Compressor: Frequently Asked Questions (FAQ)
At 22kW and 1.5MPa high pressure, is the air-end under excessive stress?
High pressure demands exceptional structural integrity. That’s why we use genuine German-made Rotorcomp air-ends, specifically engineered for high back-pressure. Paired with our SF 1.2 service factor motor, the system provides ample torque reserve, preventing motor overheating during peak pressure cycles. Even at 1.5MPa, the unit operates well within its safety redundancy, avoiding the lifespan-shortening "over-speeding" found in inferior brands.
High-pressure units generate significant heat. Can the EVO cooling system truly handle it?
Our 30% improvement in cooling is specifically designed for high-pressure thermal challenges. Utilizing an oversized high-efficiency cooling module and smart thermal control, the machine quickly dissipates heat. Lower discharge temperatures prevent oil carbonization and protect seals. Even in ambient temperatures above 40°C, it guarantees 24/7 full-load stability at 1.5MPa without tripping or downtime.
What core benefits does this machine offer for precision industries like laser cutting?
It’s all about precision and air purity. The advanced smart color touch system minimizes pressure fluctuations, ensuring a steady laser beam and clean cuts. Our filtration systems, certified by ISO, TUV, and SGS, ensure minimal oil carryover. Combined with our 5-year warranty (2-year full / 3-year air-end), you get a reliable, high-performance heartbeat for your production line that protects your expensive downstream equipment.
