132KW Belt driven air-cooling oil inject screw compressor
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
5-15 days
Brand:
AIRERA
Product Description
AIRERA 132kW Industrial Belt-Driven Compressor: Heavy-Duty Performance for High-Capacity Air Systems
The AIRERA 132kW belt-driven oil-injected screw compressor is a high-capacity powerhouse engineered for the most demanding industrial environments, delivering massive air volume with exceptional thermal stability through its advanced air-cooling system. This 175HP unit features a reinforced belt-drive assembly that allows for precise pressure tailoring and simplified field maintenance, ensuring continuous 24/7 operation with minimal downtime. By integrating AIRERA’s signature high-precision air end and intelligent PLC monitoring, the system maximizes volumetric efficiency and protects internal components from premature wear, providing a robust and cost-effective compressed air solution for large-scale manufacturing facilities.
Advantages of AGFD Oil-Inject Air Screw Compressor:
-

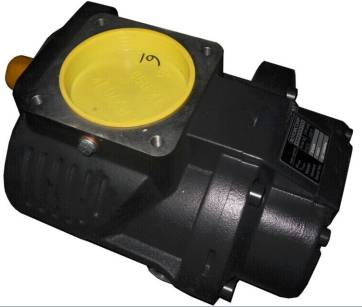

World-leading Made in Germany Rotorcomp screw air end in 5 years warranty
-
Extraordinary cooling system, 20-30% cooling performance than the old models, and friendly to do maintain job to cooler and cooling fan
![]()
-
Pick-up French Schneider white-color high-end contractor to keep more durable in extreme environment
Technical Specifications - 132KW Air Cooling Compressor
132KW Air Cooling Compressor Parameters
| ITEM | UNIT | MODEL AGFD-132 |
|---|---|---|
| Free air delivery | m³/min | 23.5-16.0 |
| Max. working pressure | MPa | 0.8-1.5 |
| Compressor type | Oil inject screw compressor | |
| Cooling type | Air cooling | |
| Driven type | Belt driven | |
| Inlet status - Temperature | ℃ | ≤45 |
| Inlet status - Pressure | MPa | Atmospheric pressure |
| Inlet status - Relative humidity | ≤90% | |
| Noise Level | dB(A) | ≤79 |
| Residual oil content | ppm | ≤1 |
| Drive rotor speed | rpm | 3700~2980 |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 |
| Cooling air flow | m³/hr | 14200 |
| Control mode | Intelligent controller | |
| Safety valve set pressure | MPa | 0.88 ~ 1.6 |
| Lubricating water volume | L | 70 |
| Compressed air outlet connection | G2-1/2 | |
| Dimension - L | mm | 2350 |
| Dimension - W | mm | 1500 |
| Dimension - H | mm | 1760 |
| Net Weight | kg | 1970 |
| Motor - Model | Y2280M2-2 | |
| Motor - Speed | rpm | 2980 |
| Motor - Rated Power | KW | 132 |
| Motor - Service factor | 1.2 | |
| Motor - Protection type | IP55 | |
| Motor - Efficiency | IE3 | |
| Motor - Startup mode | ʏ-Δ starting | |
| Motor - Voltage | V | 380(Special on request) |
| Motor - Frequency | Hz | 50(Special on request) |
| Motor - Rated current | A | 242 |
| Motor - Weight of motor | kg | 1010 |
AIRERA 132kW Screw Air Compressor: Frequently Asked Questions (FAQ)
How does the AIRERA 132kW model simplify the installation process for large facilities?
The AIRERA 132kW unit features a "Plug-and-Play" integrated design. Despite its high power, it is built on a heavy-duty skid base that requires no special foundation. With centralized connection points for air discharge and electrical input, as well as a pre-filled premium oil charge, the system can be integrated into your existing air network with minimal preparation.
Can the AIRERA 132kW compressor withstand unstable voltage or power grids?
The machine is equipped with a professional-grade electrical control cabinet that includes phase protection and over-voltage/under-voltage safeguards. This is particularly beneficial for projects in regions with developing infrastructure, ensuring the 132kW motor and electronic components are shielded from electrical damage during sudden grid fluctuations.
What is the ROI (Return on Investment) expectation for upgrading to an AIRERA 132kW unit?
Due to its superior volumetric efficiency and low maintenance requirements, most AIRERA clients see a return on investment within 12 to 24 months through energy savings alone. The durability of the belt-drive and air end further reduces the Total Cost of Ownership (TCO) compared to lower-quality alternatives that suffer from frequent breakdowns.
